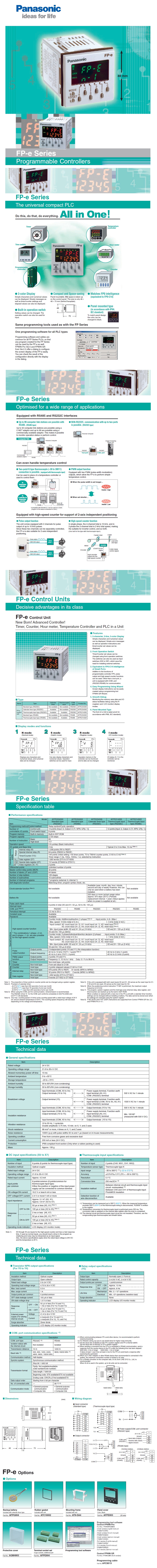

Panasonic: PLC for panel mounting (FP-e Series)

Panasonic PLCs offer an outstanding price-performance benefit which incorporates numerous functions including PID, adaptive filters, electronic cam control, multi-axis interpolation and more, all in a very compact body. Panasonic PLCs undergo extremely rigorous testing during development that far exceeds the demands that will actually be placed on them. This is a guarantee for the long life of the product in end-use applications. Panasonic's PLC programming software, Control FPWIN Pro, was one of the first on the market conforming to the international standard IEC 61131-3. In addition to all of this, Panasonic employs highly trained application engineers that can assist in providing custom designed systems.


FP-e: PLC for panel mounting

  • 8 inputs / 6 outputs or 6 inputs / 6 outputs + 2 thermocouple or analog inputs

  • 2 x RS232C or 1x RS232 + 1x RS485 interfaces

  • Program memory: 2700 steps

  • Data memory: 1660 words

  • 5-character, 2-line, 3-color display


The new multi-talented PLC combines the performance of an FP0-C14C PLC with a 2-line x 5-character display for monitoring messages and machine data. The FP-e was specially developed for PLC applications in which a minimal display of information at the machine itself is sufficient for the operator, who in turn can select actions via keys on the front of the FP-e. Several product types are available, offering various combinations with real-time clock, thermocouples, and RS232C or RS485 interface.


Features:

  • 5-character, 2-line, 3-colour display
    Letters and numerical values can be displayed. Simple messages as well as timer/counter settings and elapsed values can also be displayed.

  • Matches FP0 intelligence (equivalent to FP0-C14C)
    Programming software and cables are common for all FP Series PLCs, therefore the FP-e can use programs created for other FP Series PLCs. FPWIN Pro and FPWIN GR offer a convenient configuration dialog for the screen display.

  • Built-in operation switch
    Displayed setting values can be changed. The operation switch can also be used to input data.

  • Panel mounted type
    The front of the unit is waterproof (in accordance with IP66 and IEC standards), and it can be used on equipment that requires washing, such as food processing machines. 70mm depth (front panel excluded).
