FAULHABER: Encoders (HEM3 256W Series)
FAULHABER: Encoders (HEM3 256W Series)

Alternate View
Call for Pricing

Price Quote Form


Order #: HEM3-256W


Model Number/Code*:

.

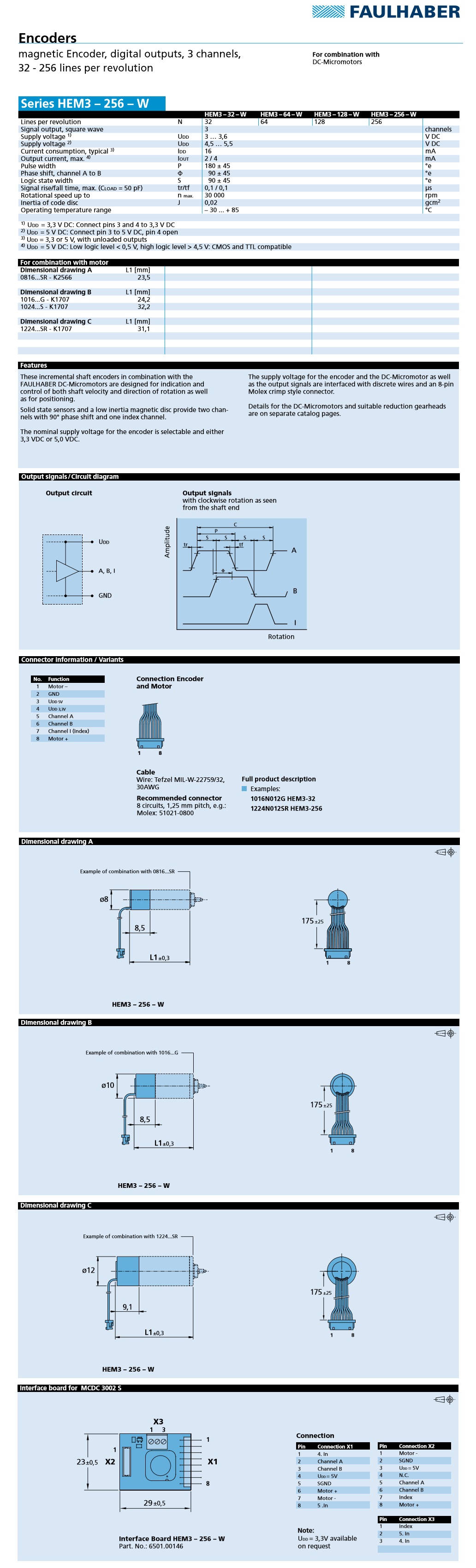

Description Specifications and Drawings


FAULHABER: Encoders (HEM3 256F Series)

Incremental encoders - Three channels

The encoders of the Series IE3 are available as attachable kits or preassembled to FAULHABER DC-Motors CR and CXR Series, or as integrated assemblies for FAULHABER Brushless DC-Servomotors Series BX4.

Features and Benefits:

  • Compact modular system

  • A wide range of resolutions are available

  • Index channel

  • Line Drivers are available

Specifications:

  • Dimension (mm): Ø8 ... 12

  • Technology: Magnetic

  • Pulse per Revolution: 32, 64, 128, 256

  • Signal Output: Digital

Model No.: HEM3-32 W, HEM3-064 W, HEM3-128 W, HEM3-256 W
