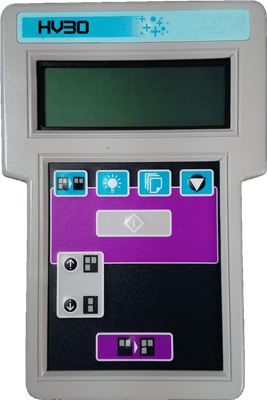

Two Technologies HV30NELR2-1 HV Series Rugged Handheld Terminal, Twisted Nematic Display, 30 Key Keypad, RS-232, 5V, Black

The HV Series is a line of ASCII terminals for use with computers, properly equipped instruments and industrial machinery.

Custom configurations and special options available, including: Custom Default Settings, Displays, Keypad Graphics, I/O Interface, Firmware, Case Color, Boot and Logo Tag

Three (3) year warranty included.

Looking for the End of Life Beijer Qterm J10 or Qterm N15 or any Legacy Terminals, HMI or Teach Pendants? TwoTechnologies has replaced End of Life unit in the field. The HV30NELR is a Plug and Play replacement.

Display

• 4 Line x 20 Characters
• LCD Twisted Nematic Display (standard)
• Supertwist Display
• Supertwist Backlit
• Extended Temperature Supertwist Backlit

Keys & Switches

• Membrane
• 30-Key
• Standard or Custom Layout

Power

• 5 VDC Regulated +/- 5%

Interface

• USB 2.0 Compliant Full Speed, RS-232
• Handshake: 2 lines (RS-232)
• Data Rates: 110 to 9,600 bps
• Parity: Even, Odd, Mark, Space, Ignore
• Connector: 6-pin Female Modular, Optional Permanent or Custom Cable Configurations

Environment

• Storage Temp: -20°C to +70°C
• Operating Temp: 0° to + 50°C
• Extended Temp: -20°C to +70°C
• Humidity 5-95% (Non-Condensing)

User Selectable Options

• Baud
• Data Bits
• Parity
• Stop Bits
• Display Serial Errors
• Cursor Visible
• Auto Line Wrap
• New Line on CR
• Self-Test
• Backlight
• Echo
• Key Repeat
• Audible Keys
• Simplified Keyboard
• Display Size
• Display Escape Characters
• Audible Serial Errors
• Support XON/XOFF
• Display Control Characters

Custom Options

• Default settings
• Displays
• Keypad graphics
• I/O interface
• Firmware
• Case Color
• Logo Tag
• LED Indicators (40 Key Only) - Requires a Custom Keypad
• Boot
• Backlit Keypad (40 Key Only)

Certifications

• FCC Class A
• CE (standard configuration)
• CENELEC EMI Standards EN55022, CISPR Class A
• Electromagnetic Compatibility (EMC) EN50082-1
• Safety Standard EN60950

Features

• Function Keys Programmable as Characters or Strings
• Menu or Host-Driven User Parameter Selection
• USB Interface Available
• Programmable Tones (Private Mode)
• LED Indicators (Host-Driven)
• 40, 30, or 20 Key Standard or Custom Keypad Configuration
• Height: 6.4 inches (162.6 mm)
• Width: 4.30 inches (109.2 mm)
• Depth: 1.06 inches (26.9 mm)
• Weight: 10 ounces (283 grams)
