MotiCont: Hollow Core Linear Voice Coil Motors (HVCM-022 Series)

These motors, having a large axial hole throughout the entire coil and body structure are ideal for optical focusing, scanning and other precision positioning applications requiring an axial opening through the motor.

Linear DC Motors, Voice Coil Motors (VCM) or Voice Coil Actuators (VCA) are the simplest type of electric motors. These motors consist of two separate parts; the magnetic housing and the coil.

Applying a voltage across the terminals of the motor causes the motor to move to one direction. Reversing the polarity of the applied voltage will move the motor to the opposite direction. The generated force is proportional to the current that flows through the motor coil. This force is almost constant in the specified stroke range of the motor.

Voice coil motors do not need commutation and using a position sensor, positioning accuracies of less than one micron or 0.00004 inches are achievable.

The non-commutated motor construction increases reliability. The direct coupling of the motor to the load allows for fast acceleration / deceleration and high speed operation.

Very high speeds and accelerations can be easily achieved.

The moving part needs to be supported by a mechanism supplied by the customer.

This type of motor may be used in conjunction with a position sensor and a motion controller for accurate positioning.

The other applications of the voice coil motors are force and pressure control.

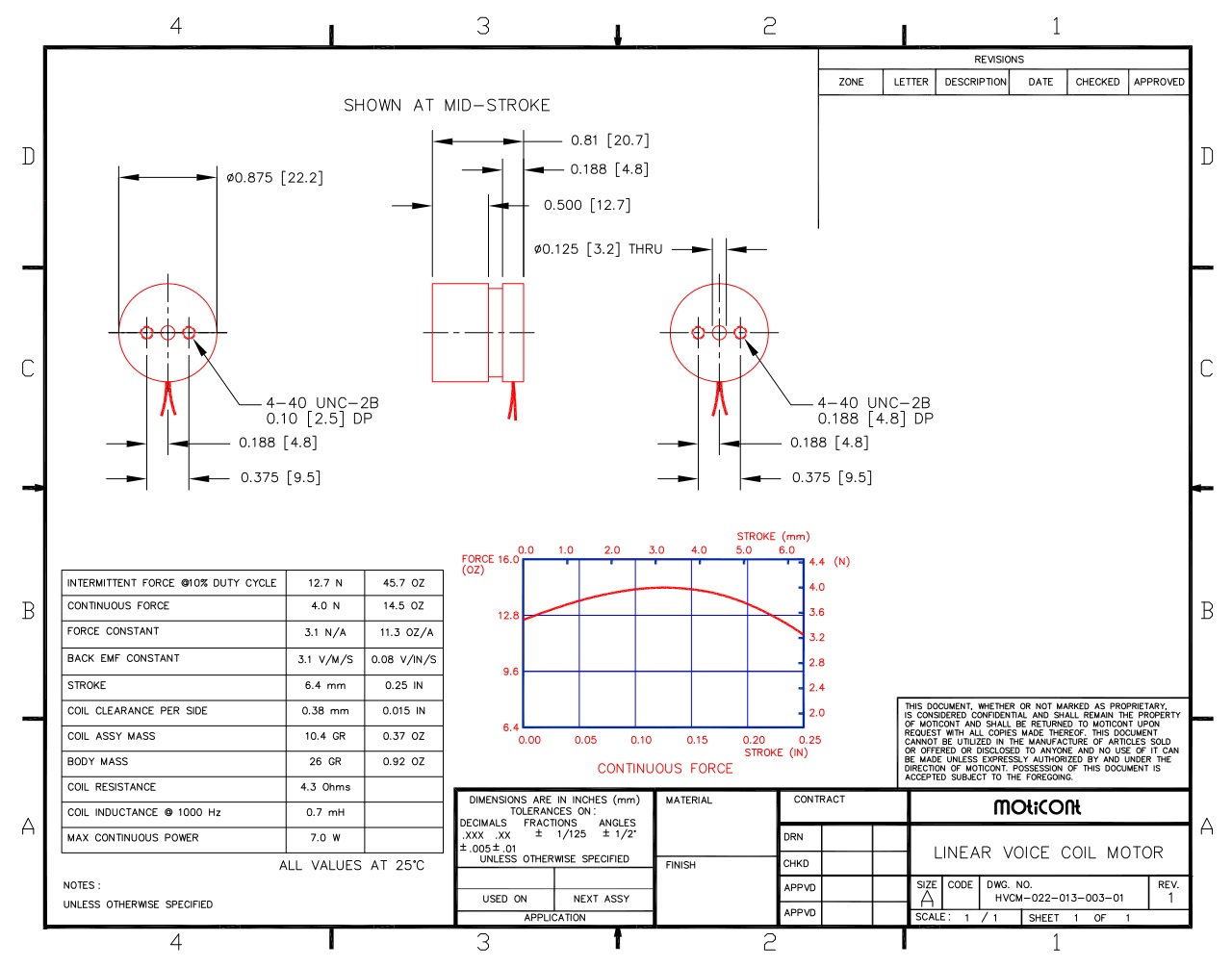

Features:

• Stroke: 0.250 in.

• Continuous Force: 14.5 oz.

• Intermittent Force @10% Duty Cycle: 45.7 oz.

• Housing Outside Diameter: 0.875 in.

• Housing Length: 0.500 in.

• Through Hole Dia.: 0.125 in.
