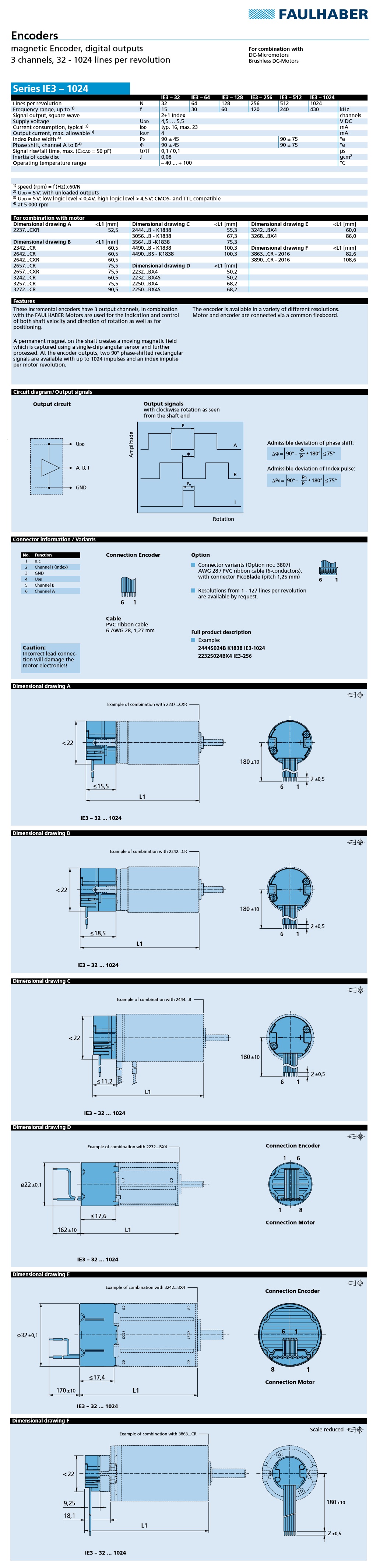

Description Specifications and Drawings


FAULHABER: Encoders (IE3 1024 Series)

Incremental encoders - Three channels

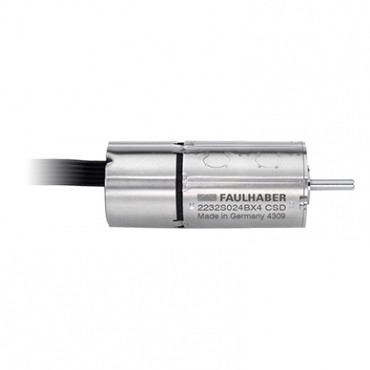

The encoders of the Series IE3 are available as attachable kits or preassembled to FAULHABER DC-Motors CR and CXR Series, or as integrated assemblies for FAULHABER Brushless DC-Servomotors Series BX4.

Features and Benefits:

  • Compact modular system

  • A wide range of resolutions are available

  • Index channel

  • Line Drivers are available

Specifications:

  • Dimension (mm): Ø22

  • Technology: Magnetic

  • Pulse per Revolution: 32, 64, 128, 256, 512, 1024

  • Signal Output: Digital

Model No.: IE3-32, IE3-64, IE3-128, IE3-256, IE3-512, IE3-1024
