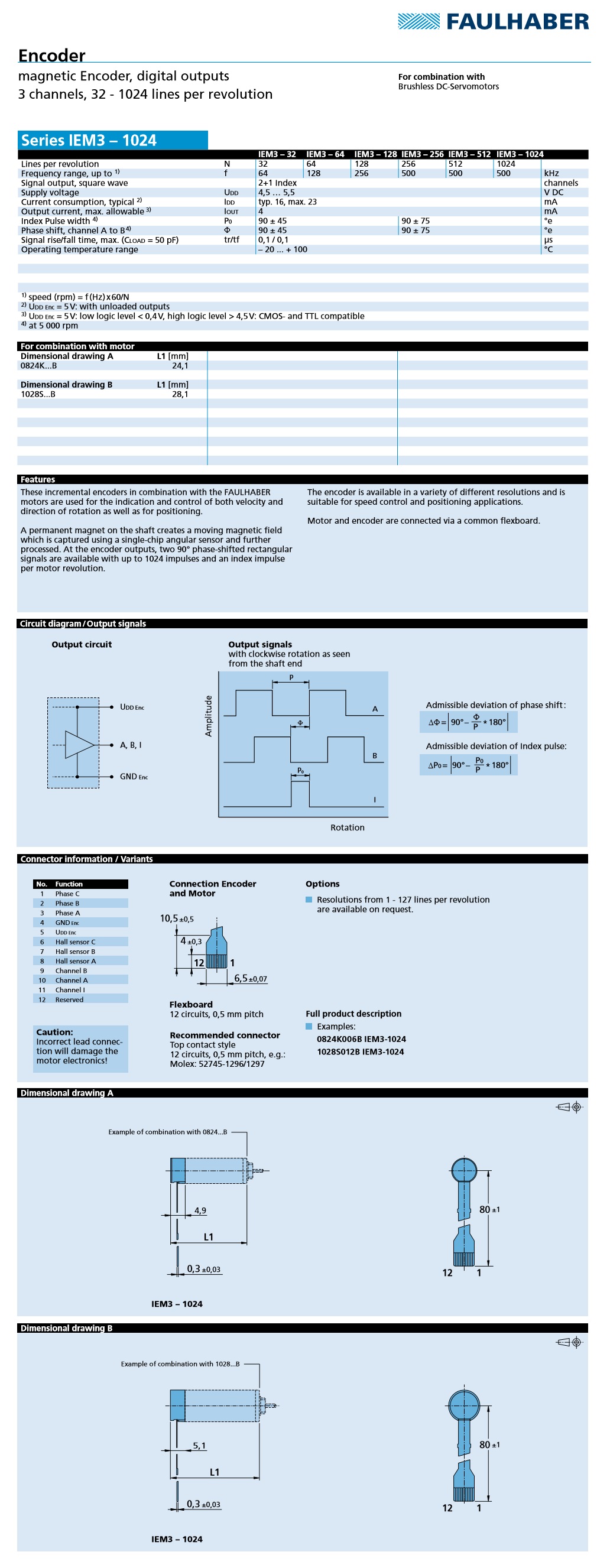

Specifications and Drawings

FAULHABER: Encoders (IEM3 1024 Series)

Incremental encoders - Three channels

The encoders of the Series IE3 are available as attachable kits or preassembled to FAULHABER DC-Motors CR and CXR Series, or as integrated assemblies for FAULHABER Brushless DC-Servomotors Series BX4.

Features and Benefits:

Compact modular system
A wide range of resolutions are available
Index channel
Line Drivers are available

Specifications:

Dimension (mm): Ø8 x 4.9
Technology: Magnetic
Pulse per Revolution: 32, 64, 128, 256, 512, 1024
Signal Output: Digital

Model No.: IEM3-32, IEM3-64, IEM3-128, IEM3-256, IEM3-512, IEM3-1024
