MYCOM: 5-Phase Stepper Drive IMS53-130

MYCOM: 5-Phase Stepper Drive IMS53-130

Price : $990.00

Availability: Lead time is 5-7 business days.
Order #: IMS53-130

Qty:

Description

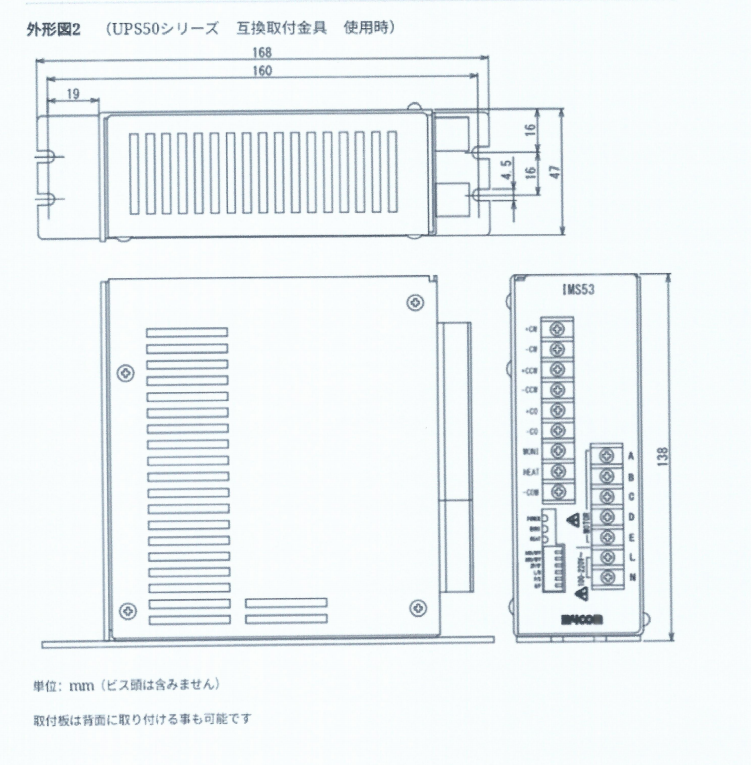

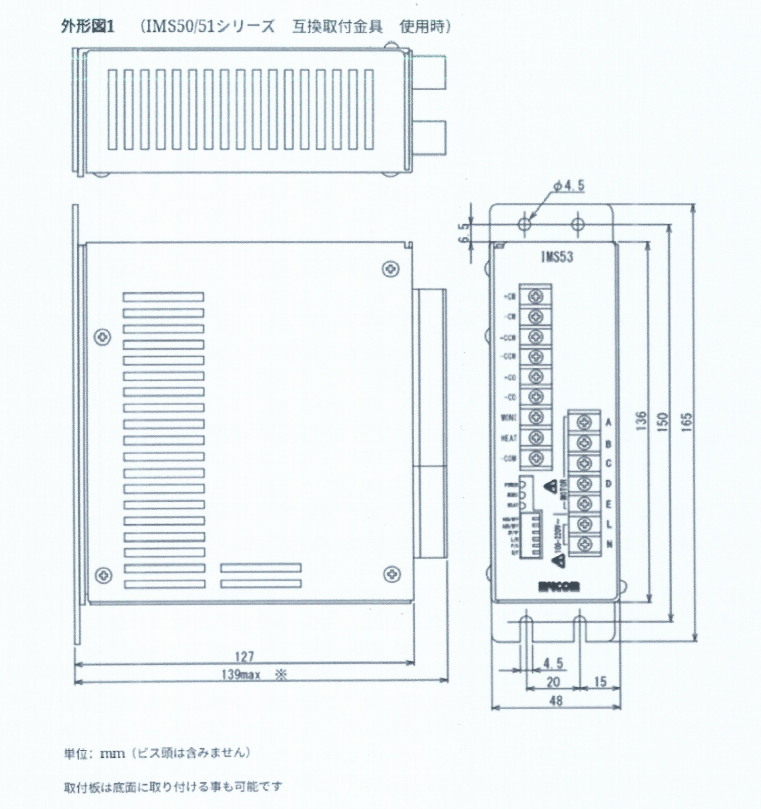

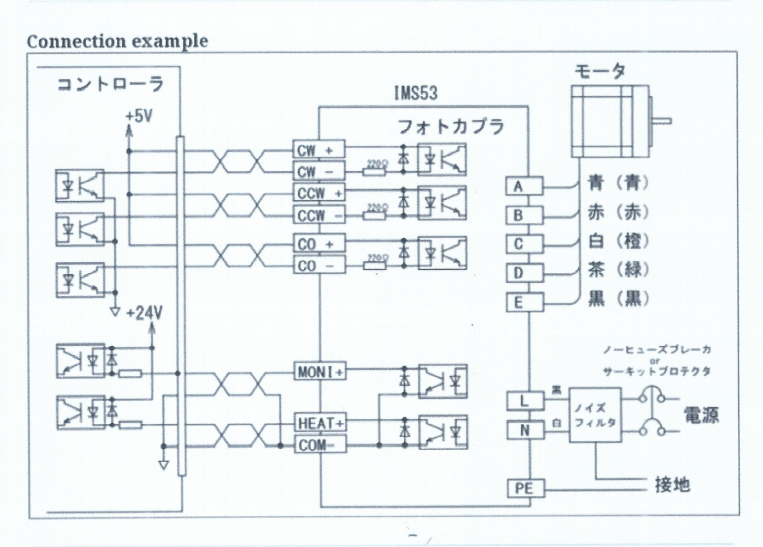

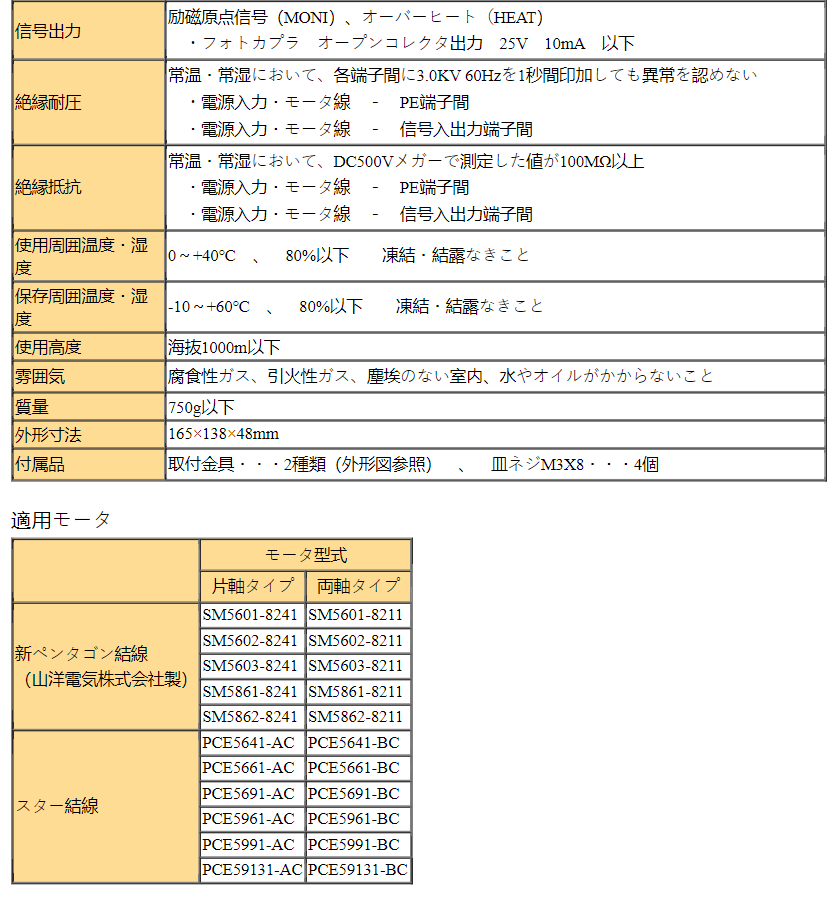

Specifications and Drawings

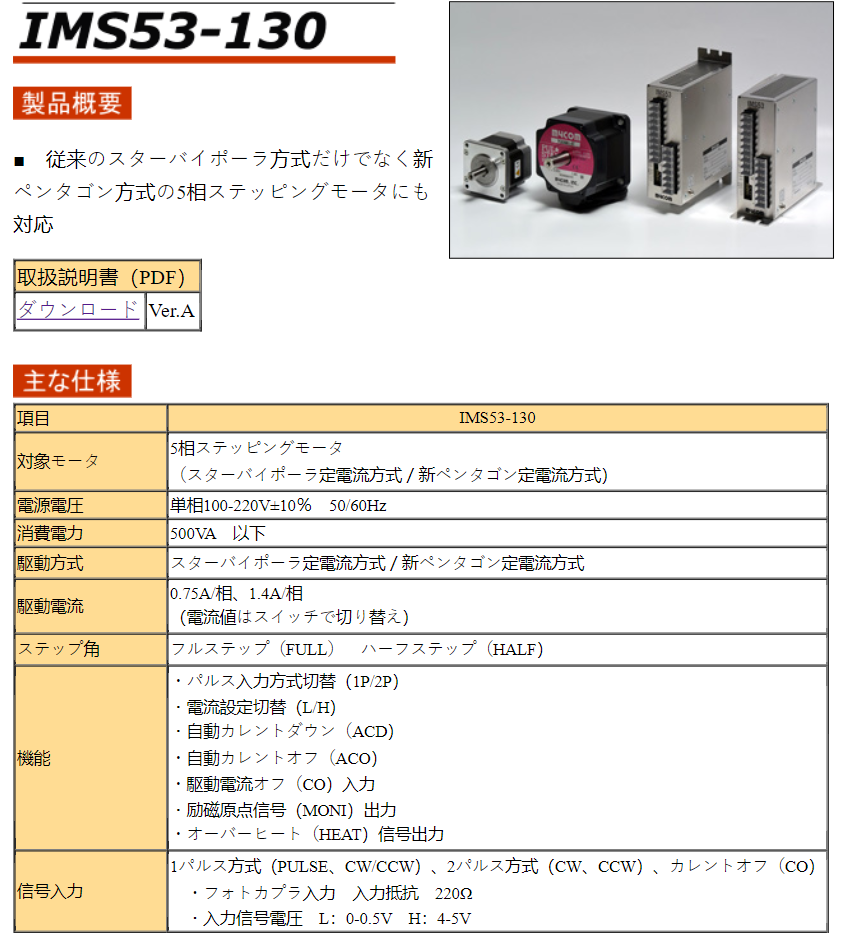

MYCOM: IMS53-130 Driver

5 Phase Stepper Driver Units

Features

A compact package matching most existing motors
100~120Vac or 200~220Vac Single Phase Power Input

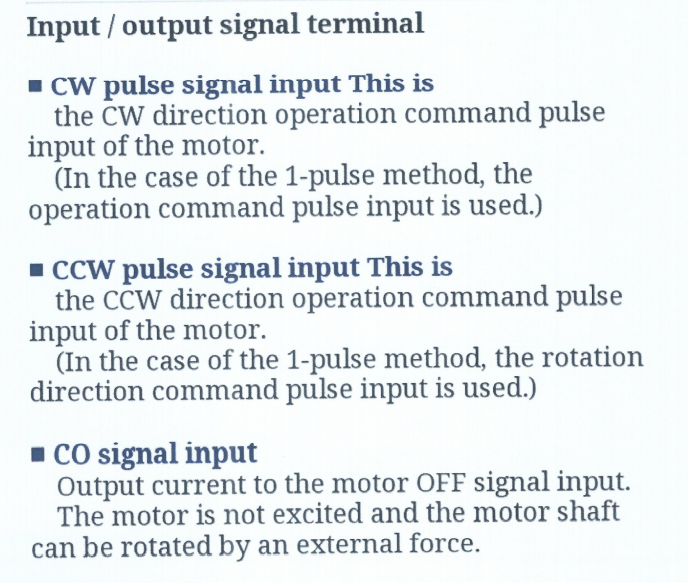

Opto-isolated inputs and outputs
Auto-current down feature
Half Step/Full Step setting selection
750g
