Beijer Electronics: iX HMI Industrial (iX T12C Series)
Beijer Electronics: iX HMI Industrial (iX T12C Series)

Call for Pricing

Price Quote Form


Order #: IXT12C


Model Number/Code*:

.

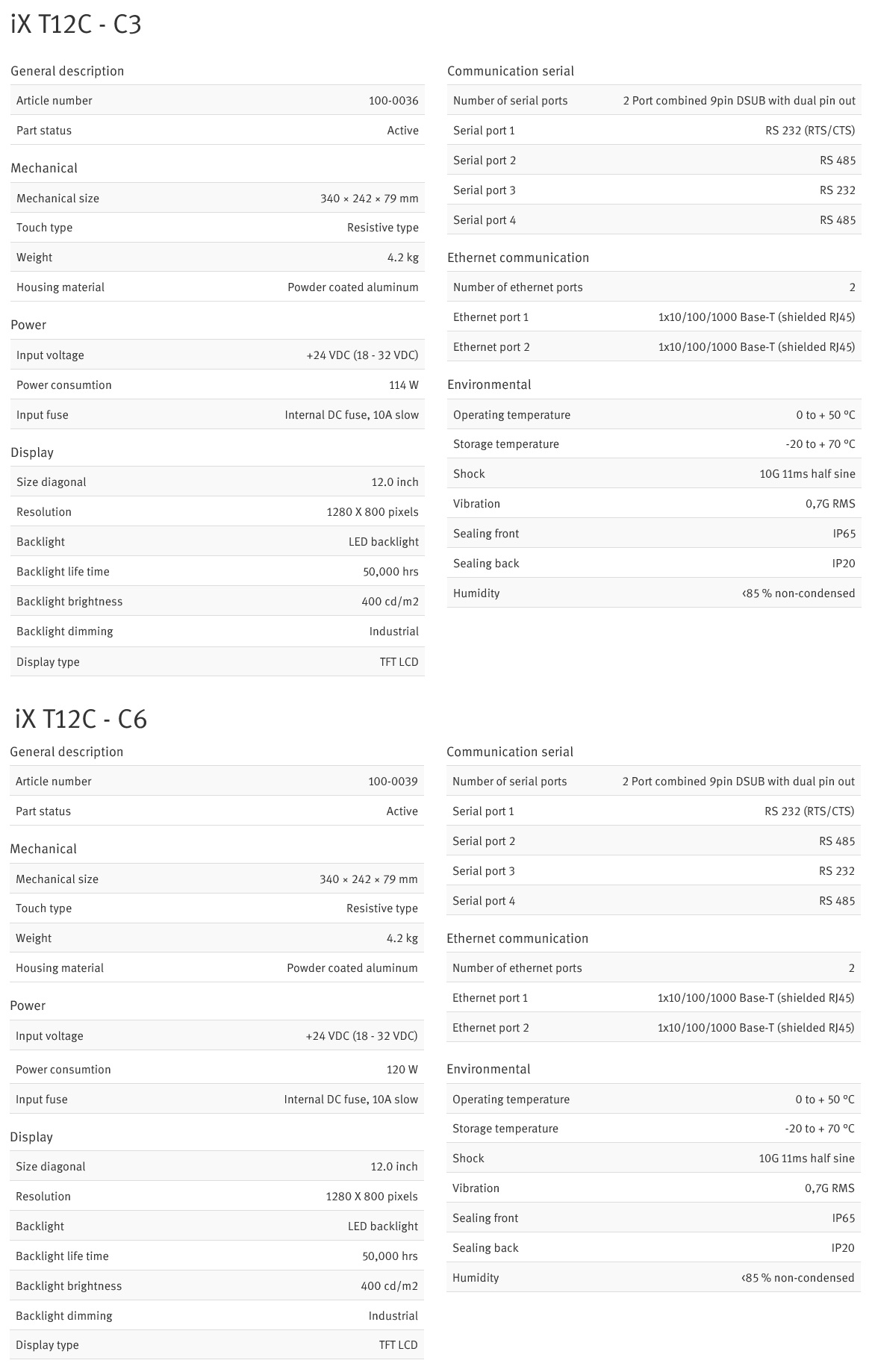

Description Specifications and Drawings


Beijer Electronics: iX HMI Industrial (iX T12C Series)


12.1'' graphic touch HMI with iX software

The slim, modern design of our industrial panels is consistent, practical and user-friendly. Ranging from 21-inch industrial PCs to ultra-compact 4-inch panels, all models have high performance CPUs and the latest screen technology.

iX TxC is ideal for medium to large scale HMI applications that require more power or add-on functionality such as video. iX TxC gives you a full, open and expandable HMI, with iX runtime software, in a robust industrial PC hardware with high connectivity.


iX T12C – C3 Features:

  • 12.1" TFT-LCD touch screen

  • 1280 × 800 (16:10), 16mio. colors, LED backlight

  • Intel® Celeron® B810E (2× 1.6 GHz)

  • Main memory 2 GB - 4 GB DDR3 (with ECC support)

  • Application memory 64GB 2.5“ SSD

  • Operating temperature 0 to +50 °C

  • CE and UL508 approvals


iX T12C – C6 Features:

  • 12.1" TFT-LCD touch screen

  • 1280 × 800 (16:10), 16mio. colors, LED backlight

  • Intel® Core™ i7-2715QE (4x 2.1 GHz)

  • Main memory 2 GB - 4 GB DDR3 (with ECC support)

  • Application memory 64GB 2.5“ SSD

  • Operating temperature 0 to +50 °C

  • CE and UL508 approvals
