LSIS: PLC (K120S Series)

Programmable logic controller(PLC) is a general-purpose control device that automatically controls machinery, facilities and assembly lines by user defined programs. It also has a variety of communication functions for sequence, motion and process control.

MASTER-K Series

Powerful & compact block-type PLC CPU, digital I/O and power part are embedded in block-type PLCs, which is very compact and easy to install in area you want for system configuration. Also through various built-in function, user can configure cost-effective system.

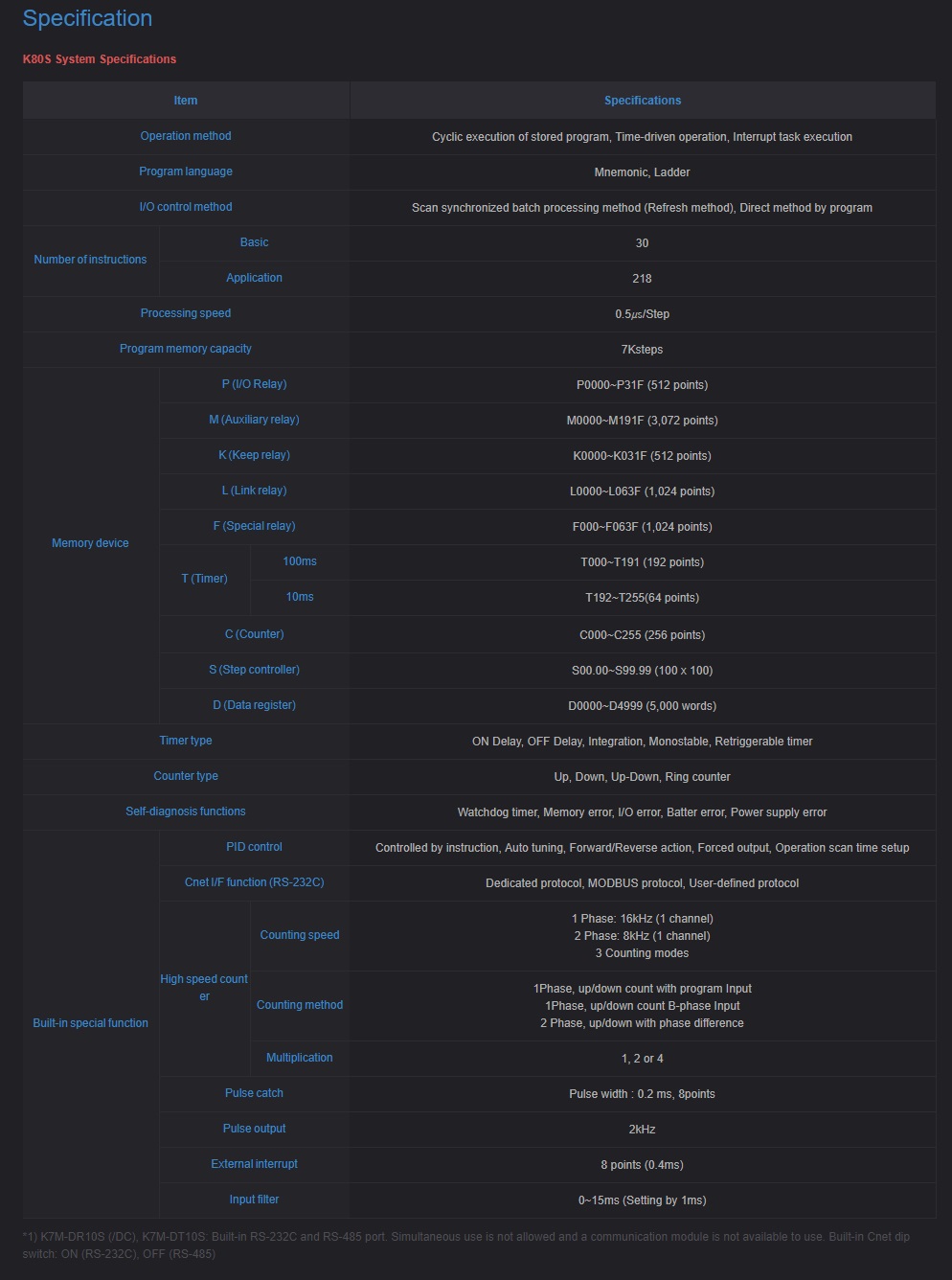

K80S Features
Compact and high-function block type:

• Base: 10, 20, 30, 40, 60 points

• Expansion: 10, 20 points



Various built-in functions for applications:

• HSC 1 point, Pulse output 1 point

• PID (Max. 8 loops), Pulse catch 8 points

• Built-in RS-232C I/F 1Ch: 4 (Rx), 7 (Tx), 5 (SG)



Various applications with special/comm. Modules:

• Analog input/output: G7F-ADHA

• Analog input: G7F-AD2A

• Analog timer: G7F-AT2A

• Cnet I/F: RS-232C, RS-422

• Fnet (Master)/Rnet (Master)

• Profibus-DP (Slave)/DeviceNet (Slave)

• RTC/Memory pack

On-line edit in KGL WIN

K120S Features
High-performance and various block type:

• Economic type: 10/14/20/30 points (10/14 points: 2 points built-in Analog Timer)

• Standard type: 20/30/40/60 points

• Various expansion modules: input, output, mixed modules

• P area extended for SMART I/O application (P000~P63F)

• High-speed processing speed: 0.1㎲/step (standard type)

• Battery-less backup

• Program backup: EEPROM backup while online editing

• Data backup: Supercapacitor

• Various input handling: Input filter, pulse catch



Enhanced communication functions:

• Built-in RS-232C (Ch0) and RS-485 (Ch1) support *1)

• Transmitting data monitoring support: KGLWIN

• Various option modules

• Cnet (RS-232C, RS-422) Fnet/Rnet (master module)

• Profibus-DP/DeviceNet (slave module)



Powerful built-in functions:

• High-speed counter: 32-bit signed operation

• Counter range: -2,147,483,648 ~ 2,147,483,647

• Function: ring counter, latch counter, comparison (equal/zone/task), RPM

• Positioning function (DRT/DT type)

• Control axis: 2 axes (100kHz)

• Operation method: single, repeat

• Operation mode: end, keep, continuous

• Additional functions: return to origin, JOG operation, PWM output

• PID operation function

• Relay/PRC auto-tuning, SV ramp, delta MV, PWM output, position/velocity algorithm



Various expansion modules:

• 7 Digital I/O modules: G7E-DR(08/10/20)A, G7E-TR10A, G7E-DC08A, G7E-RY(08/16)A

• 9 Analog I/O modules: G7F-ADHA(B/C), G7F-AD2A(B), G7F-DA2I(V), G7F-AT2A, G7F-RD2A

• 6 Comm. modules: G7L-CUEB(C), G7L-DBEA, G7L-PBEA, G7L-FUEA, G7L-RUEA

• 2 Option modules: G7E-RTCA, G7M-M256B

Model No.: K7M-DR10UE, K7M-DR14UE, K7M-DR20U, K7M-DR20U/DC, K7M-DR20UE, K7M-DR30U, K7M-DR30U/DC, K7M-DR30UE, K7M-DR40U, K7M-DR40U/DC, K7M-DR60U(N), K7M-DR60U/DC, K7M-DRT20U, K7M-DRT30U, K7M-DRT40U, K7M-DRT60U, K7M-DT20U, K7M-DT30U, K7M-DT40U, K7M-DT60U
