LUGE:motor drive and controller,LUGE-350DC48
LUGE:motor drive and controller,LUGE-350DC48

Price : $1,120.00

Quantity in Stock:7

Availability: Usually Ships in 24 Hours
Order #: LUGE-350DC48
Qty:

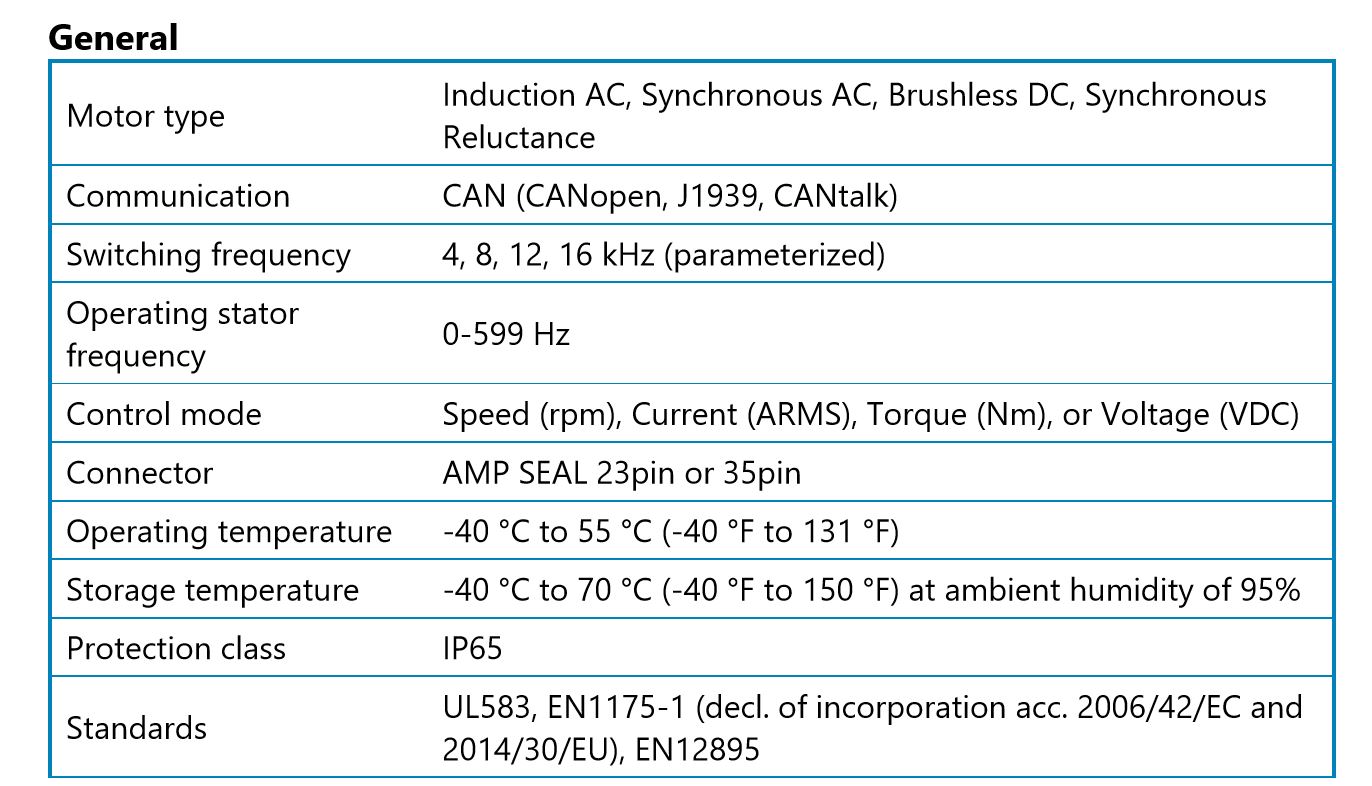

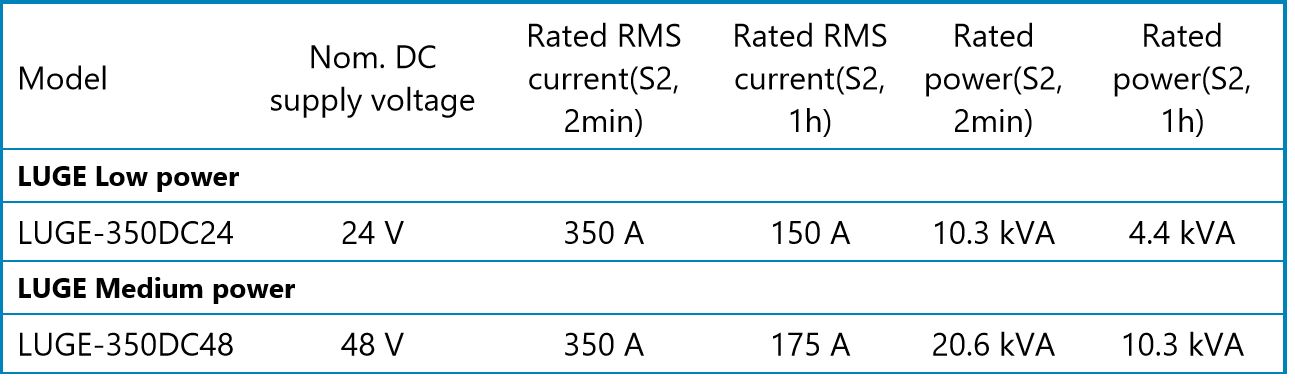

Description Ordering Information Specifications and Drawings

LUGE motor controllers
Digital Mobile Vehicle Controller and Amplifier(LUGE) is a family of amplifier/motor controllers with power levels from 5 to 20kVA , designed for nominal voltages 24VDC/48VDC. The LUGE is developed with traction, hydraulic pump and generator applications in mind which makes it an ideal choice for most battery-powered electric mobile vehicles. LUGE features very high power density. The logic platform, which is common to the entire power electronics range of Luge, offers unparalleled flexibility in software customization, as well as adherence to demanding functional safety requirements. All LUGE feature CAN bus communication and have extended I/O option for standalone operation, or to facilitate distribution of mobile vehicle control and I/O functionality in an overall system.
Features
• Outstanding quality and reliability, achieved through superior design and world class manufacturing processes.
• Rugged design suitable for the demanding environment of electric vehicles. Protected against ingress of dust and water according to IP65.
• Powerful MCU with an efficient operating system capable of parallel execution of motor control as well as customized vehicle control tasks.
• Firmware with built-in standard functionality for common traction, generator and pump applications.
• Software quality assured through development and review processes designed for Automotive SPICE® and ISO13849-1 compliance.
• I/O version available for standalone operation or for distributed system I/O.
• Industry standard CANopen and J1939 for reliable communication in a vehicle system.
• Control of AC induction, AC synchronous, BLDC, and synchronous reluctance machines.
• State of the art vector control for optimal efficiency throughout the full speed range.
• Auto-tuning of motor parameters for rapid commissioning of inverters into an existing vehicle.
• Extensive and powerful event handling and data logging to simplify troubleshooting and minimize vehicle down time.
Support Links
LUGE-350 Brochure
