Misumi: Single Axis Actuators (LX26 Series) LX2610C-B1-E2640-200-FA3
Misumi: Single Axis Actuators (LX26 Series) LX2610C-B1-E2640-200-FA3

Price : $970.00


Availability: Usually Ships in 4 to 6 Weeks
Order #: LX2610C-B1-E2640-200-FA3
Qty:

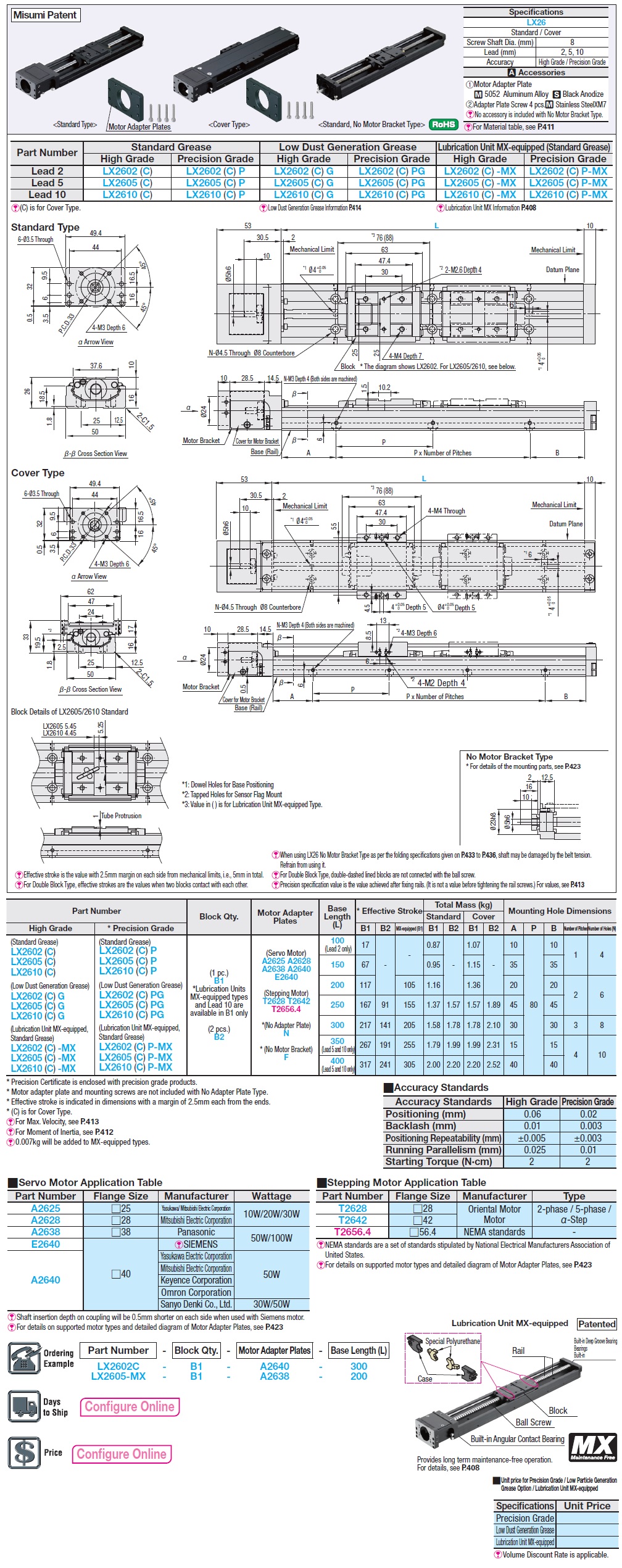

Description Specifications and Drawings


LX2610C-B1-E2640-200-FA3
Width 62mm, Trave 117mm, Ball Screw Lead 10mm,Position Repeatablity(µm) ±5µm ,with cover,3 sensor for 1 home and 2 limits,100W servo motor flange.

Misumi: Single Axis Actuators - LX26 Standard / Cover Type

Specifications:

  • Main Body, Peripheral Components

  • Nominal (Height): 26

  • Precision: High Grade / Precision Grade

  • Table: Long 1 pc. / Long 2 pcs.

  • Lead(mm): 2～10

  • Motor Mounting Orientation: Straight

  • Cover: Not Provided / Included

  • Grease: Standard / Low Particle Generation

  • With or w/o Motors: Not Provided (Installed by customers)

  • With or w/o Lubricant Unit: Not Provided

  • Ball Screw Shaft Dia.(φ): 8

  • Table Length L1(mm): 47.4

  • Table Width W1(mm): 37.6～62

Model No.: LX2602-B1-A, LX2602-B1-E2640, LX2602-B1-F, LX2602-B1-N, LX2602-B1-T, LX2602-B2-A, LX2602-B2-E2640, LX2602-B2-F, LX2602-B2-N, LX2602-B2-T, LX2602-MX-B1-A, LX2602-MX-B1-E2640, LX2602-MX-B1-F, LX2602-MX-B1-N, LX2602-MX-B1-T, LX2602C-B1-A, LX2602C-B1-E2640, LX2602C-B1-F, LX2602C-B1-N, LX2602C-B1-T, LX2602C-B2-A, LX2602C-B2-E2640, LX2602C-B2-F, LX2602C-B2-N, LX2602C-B2-T, LX2602C-MX-B1-A, LX2602C-MX-B1-E2640, LX2602C-MX-B1-F, LX2602C-MX-B1-N, LX2602C-MX-B1-T, LX2602CG-B1-A, LX2602CG-B1-F, LX2602CG-B1-N, LX2602CG-B1-T, LX2602CG-B2-A, LX2602CG-B2-F, LX2602CG-B2-N, LX2602CG-B2-T, LX2602CP-B1-A, LX2602CP-B1-E2640, LX2602CP-B1-F, LX2602CP-B1-N, LX2602CP-B1-T

LX2602CP-B2-A, LX2602CP-B2-E2640, LX2602CP-B2-F, LX2602CP-B2-N, LX2602CP-B2-T, LX2602CP-MX-B1-A, LX2602CP-MX-B1-E2640, LX2602CP-MX-B1-F, LX2602CP-MX-B1-N, LX2602CP-MX-B1-T, LX2602CPG-B1-A, LX2602CPG-B1-E2640, LX2602CPG-B1-F, LX2602CPG-B1-N, LX2602CPG-B1-T, LX2602CPG-B2-A, LX2602CPG-B2-E2640, LX2602CPG-B2-F, LX2602CPG-B2-N, LX2602CPG-B2-T, LX2602G-B1-A, LX2602G-B1-F, LX2602G-B1-N, LX2602G-B1-T, LX2602G-B2-A, LX2602G-B2-F, LX2602G-B2-N, LX2602G-B2-T, LX2602P-B1-A, LX2602P-B1-E2640, LX2602P-B1-F, LX2602P-B1-N, LX2602P-B1-T, LX2602P-B2-A, LX2602P-B2-E2640, LX2602P-B2-F, LX2602P-B2-N, LX2602P-B2-T, LX2602P-MX-B1-A, LX2602P-MX-B1-E2640, LX2602P-MX-B1-F, LX2602P-MX-B1-N

LX2602P-MX-B1-T, LX2602PG-B1-A, LX2602PG-B1-E2640, LX2602PG-B1-F, LX2602PG-B1-N, LX2602PG-B1-T, LX2602PG-B2-A, LX2602PG-B2-E2640, LX2602PG-B2-F, LX2602PG-B2-N, LX2602PG-B2-T, LX2605-B1-A, LX2605-B1-E2640, LX2605-B1-F, LX2605-B1-N, LX2605-B1-T, LX2605-B2-A, LX2605-B2-E2640, LX2605-B2-F, LX2605-B2-T, LX2605-MX-B1-A, LX2605-MX-B1-E2640, LX2605-MX-B1-F, LX2605-MX-B1-N, LX2605-MX-B1-T, LX2605C-B1-A, LX2605C-B1-E2640, LX2605C-B1-F, LX2605C-B1-N, LX2605C-B1-T, LX2605C-B2-A, LX2605C-B2-F, LX2605C-B2-N, LX2605C-B2-T

LX2605C-MX-B1-A, LX2605C-MX-B1-E2640, LX2605C-MX-B1-F, LX2605C-MX-B1-N, LX2605C-MX-B1-T, LX2605CG-B1-A, LX2605CG-B1-F, LX2605CG-B1-N, LX2605CG-B1-T, LX2605CG-B2-A, LX2605CG-B2-F, LX2605CG-B2-N, LX2605CG-B2-T, LX2605CP-B1-A, LX2605CP-B1-E2640, LX2605CP-B1-F, LX2605CP-B1-N, LX2605CP-B1-T, LX2605CP-B2-A, LX2605CP-B2-E2640, LX2605CP-B2-F, LX2605CP-B2-N, LX2605CP-B2-T, LX2605CP-MX-B1-A, LX2605CP-MX-B1-E2640, LX2605CP-MX-B1-F, LX2605CP-MX-B1-N, LX2605CP-MX-B1-T, LX2605CPG-B1-A, LX2605CPG-B1-E2640, LX2605CPG-B1-F, LX2605CPG-B1-N, LX2605CPG-B1-T, LX2605CPG-B2-A

LX2605CPG-B2-E2640, LX2605CPG-B2-F, LX2605CPG-B2-N, LX2605CPG-B2-T, LX2605G-B1-A, LX2605G-B1-F, LX2605G-B1-N, LX2605G-B1-T, LX2605G-B2-A, LX2605G-B2-F, LX2605G-B2-N, LX2605G-B2-T, LX2605P-B1-A, LX2605P-B1-E2640, LX2605P-B1-F, LX2605P-B1-N, LX2605P-B1-T, LX2605P-B2-A, LX2605P-B2-E2640, LX2605P-B2-F, LX2605P-B2-N, LX2605P-B2-T, LX2605P-MX-B1-A, LX2605P-MX-B1-E2640, LX2605P-MX-B1-F, LX2605P-MX-B1-N, LX2605P-MX-B1-T

LX2605PG-B1-A, LX2605PG-B1-E2640, LX2605PG-B1-F, LX2605PG-B1-N, LX2605PG-B1-T, LX2605PG-B2-A, LX2605PG-B2-E2640, LX2605PG-B2-F, LX2605PG-B2-N, LX2605PG-B2-T, LX2610-B1-A, LX2610-B1-E2640, LX2610-B1-F, LX2610-B1-N, LX2610-B1-T, LX2610-MX-B1-A, LX2610-MX-B1-E2640, LX2610-MX-B1-F, LX2610-MX-B1-N, LX2610-MX-B1-T, LX2610C-B1-A, LX2610C-B1-F, LX2610C-B1-N, LX2610C-B1-T, LX2610C-MX-B1-A, LX2610C-MX-B1-F, LX2610C-MX-B1-N, LX2610C-MX-B1-T, LX2610CG-B1-A, LX2610CG-B1-F, LX2610CG-B1-N, LX2610CG-B1-T, LX2610CP-B1-A, LX2610CP-B1-E2640, LX2610CP-B1-F, LX2610CP-B1-N

LX2610CP-B1-T, LX2610CP-MX-B1-A, LX2610CP-MX-B1-E2640, LX2610CP-MX-B1-F, LX2610CP-MX-B1-N, LX2610CP-MX-B1-T, LX2610CPG-B1-A, LX2610CPG-B1-E2640, LX2610CPG-B1-F, LX2610CPG-B1-N, LX2610CPG-B1-T, LX2610G-B1-A, LX2610G-B1-F, LX2610G-B1-N, LX2610G-B1-T, LX2610P-B1-A, LX2610P-B1-E2640, LX2610P-B1-F, LX2610P-B1-N, LX2610P-B1-T, LX2610P-MX-B1-A, LX2610P-MX-B1-E2640, LX2610P-MX-B1-F, LX2610P-MX-B1-N, LX2610P-MX-B1-T, LX2610PG-B1-A, LX2610PG-B1-E2640, LX2610PG-B1-F, LX2610PG-B1-N, LX2610PG-B1-T
