Phytron: Stepper Motor Controller (MCC-1 Series)

Programmable controller for one axis.

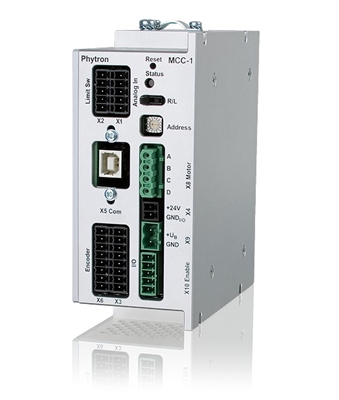

The MCC-1, phytron‘s freely programmable dual axis stepper motor controller, is a compact stand-alone unit for 2 phase stepper motors providing up to 3.5 APEAK phase current.

Controllers in the MCC series have many inputs and outputs (digital and analogue) and encoder inputs for step position monitoring plus possibilities to connect limit switches all as standard.

Due to the variety of available host interfaces (USB, Ethernet etc.), the MCC can be quickly and easily integrated into existing applications.

This controller is easy to program and can operate either directly (remote) via its bus or stand-alone (local) with the program routines stored within.

As a compact stand-alone device, it convinces especially in small experimental setups, machines and equipment, which can be dispensed in a PLC.

Technical Details

• Freely programmable one-axis stepper motor controller for stand-alone operation.
• Bipolar control of 2-phase stepper motors
• Step resolution up to 1/256 step
• RS 485, RS 232, USB or Ethernet interface
• Programming in the well-tried MiniLog format and acc. to DIN 66025
• Analog input e. g. for joystick
• 8 bidirectional digital inputs/outputs, electrically isolated
• Redundant designed hardware input for enabling the motor
• Encoder evaluation
• Compact design, size: 127 x 55 x 110 mm only
• Wall mounting bracket for different mounting positions
• DIN rail mounting kit
• Supply voltage 24 to 48 VDC
• Phase currents up to 3.5 APEAK

Available Models

• USB or RS 232 interface for PC connection
• RS 485-4-wire interfaces for PC (RS 422) connection and bus operation
• Ethernet interface for integration into the firm's network
• Attached USB converter for PC connection and RS 485 for bus operation
• Attached terminal adaptor for BT 5 AM operator terminal
• DIN rail or wall mounting
