Phytron: Stepper Motor Controller (MCC-2 LIN Series)

Linear controller for two axes.

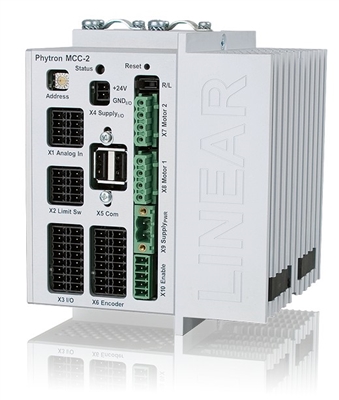

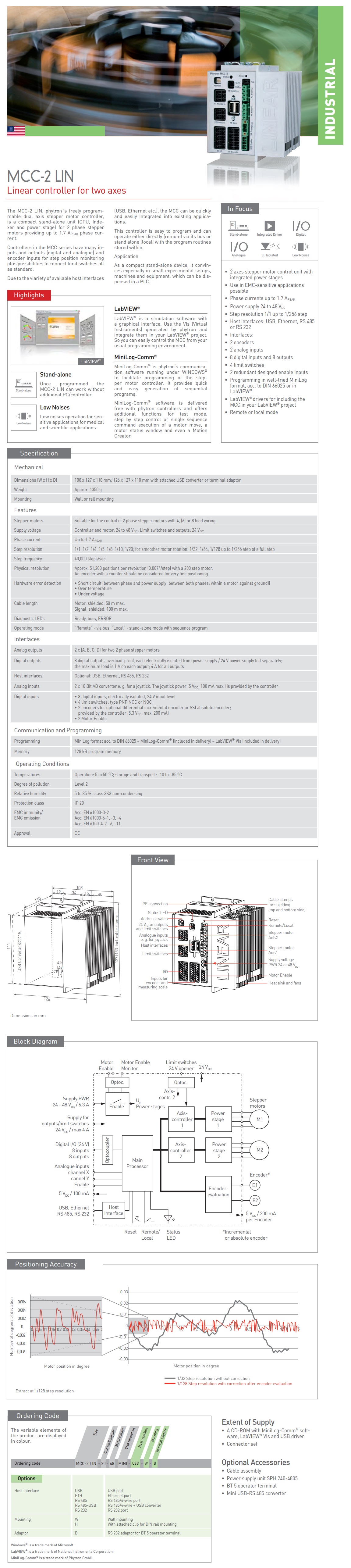

The MCC-2 LIN, phytron´s freely programmable dual axis stepper motor controller, is a compact stand-alone unit (CPU, Indexer and power stage) for 2 phase stepper motors providing up to 1.7 APEAK phase current.

Controllers in the MCC series have many inputs and outputs (digital and analogue) and encoder inputs for step position monitoring plus possibilities to connect limit switches all as standard.

Due to the variety of available host interfaces (USB, Ethernet etc.), the MCC can be quickly and easily integrated into existing applications.

This controller is easy to program and can operate either directly (remote) via its bus or stand alone (local) with the program routines stored within.

As a compact stand-alone device, it convinces especially in small experimental setups, machines and equipment, which can be dispensed in a PLC.

Technical Details

• Freely programmable 2-axes stepper motor controller.
• Linear power stages
• Best fit for extremely fine positioning and EMC-sensitive environments.
• Step resolution up to 1/256 step
• USB, RS 485, RS 232 or Ethernet interface
• Programming in the well-proven MiniLog format and acc. to DIN 66025
• 2 analog inputs, e. g. for joystick
• 8 digital inputs / 8 digital outputs, electrically isolated
• Encoder evaluation
• Redundant designed hardware input for enabling the motors.
• Compact design: 127 x 108 x 110 mm
• Wall and DIN-rail mounting
• Supply voltage 24 to 48 VDC
• Phase currents up to 1.7 APEAK

Available Models

• USB or RS 232 interface for PC connection
• RS 485-4-wire interfaces for PC (RS 422) connection and bus operation.
• Ethernet interface for integration into the firm's network
• Attached terminal adaptor for BT 5 AM operator terminal
• DIN rail or wall mounting
