Faulhaber: Gearhead (MD12B Series)
Faulhaber: Gearhead (MD12B Series)

Call for Pricing

Price Quote Form


Order #: MD12B


Model Number/Code*:

.

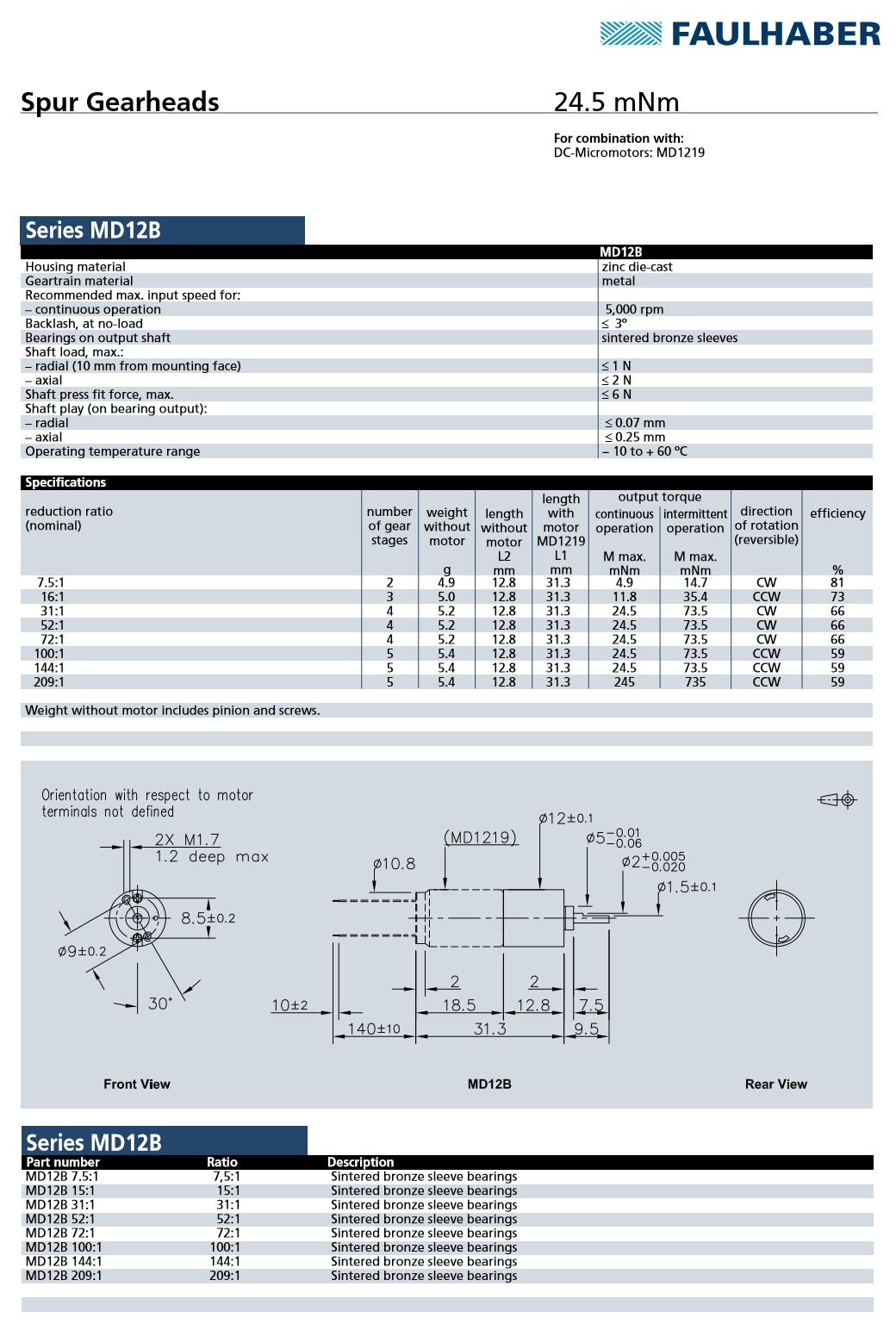

Description Specifications and Drawings


Faulhaber: Gearhead (MD12B Series)

FAULHABER develops high performance modular gearheads to complement each of its motor technologies.

From high torque planetary technology in a variety materials, to zero backlash spur gears, FAULHABER has the right solution.

Specifications:

  • Diameter (mm): 12

  • Type: Spur

  • Reduction Ratios: 7.5:1...209:1

  • Shaft Diameter (mm): 2

  • Torque Continuous (mNm): 24.5

  • Torque Intermittent (mNm): 73.5

Model No.: MD12B 100:1, MD12B 144:1, MD12B 15:1, MD12B 209:1, MD12B 31:1, MD12B 52:1, MD12B 7.5:1, MD12B 72:1
