Panasonic: AC Servo Motors (MHME A5 Series)

MHME-MINAS A5 Series (200V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 1.8-7.5

  • Rated Output (W): 1.0-5.0

  • Rated Torque (N.m): 4.77-23.9

  • Momentary Max. Peak Torque (N.m): 14.3-71.6

  • Rated Current (Arms): 5.7-25.9

  • Max. Current (Ao-p): 24-110

  • Rated Rotational Speed (r/min): 2000

  • Max. Rotational Speed (r/min): 3000

  • Static Friction Torque (N.m): 4.9-24.5 or more

  • Engaging Time (ms): 80 or less

  • Releasing Time (ms): 25-70 or less

  • Exciting Current (DC) (A): 0.59-1.3±10%

  • Releasing Voltage (DC) (V): 2 or more

  • Exciting Voltage (DC) (V): 24 ± 2.4%

  • Mass without Brake (kg): 6.7-23.0


Model No.: MHME102G1C, MHME102G1D, MHME102G1G, MHME102G1H, MHME102GCC, MHME102GCD, MHME102GCG, MHME102GCH, MHME152G1C, MHME152G1D, MHME152G1G, MHME152G1H, MHME152GCC, MHME152GCD, MHME152GCG, MHME152GCH, MHME202G1C, MHME202G1D, MHME202G1G, MHME202G1H, MHME202GCC, MHME202GCD, MHME202GCG, MHME202GCH, MHME302G1C, MHME302G1D, MHME302G1G, MHME302G1H, MHME302GCC, MHME302GCD, MHME302GCG, MHME302GCH, MHME402G1C, MHME402G1D, MHME402G1G, MHME402G1H, MHME402GCC, MHME402GCD, MHME402GCG, MHME402GCH, MHME502G1C, MHME502G1D, MHME502G1G, MHME502G1H, MHME502GCC, MHME502GCD, MHME502GCG, MHME502GCH, MHME752G1C, MHME752G1D


Catalog

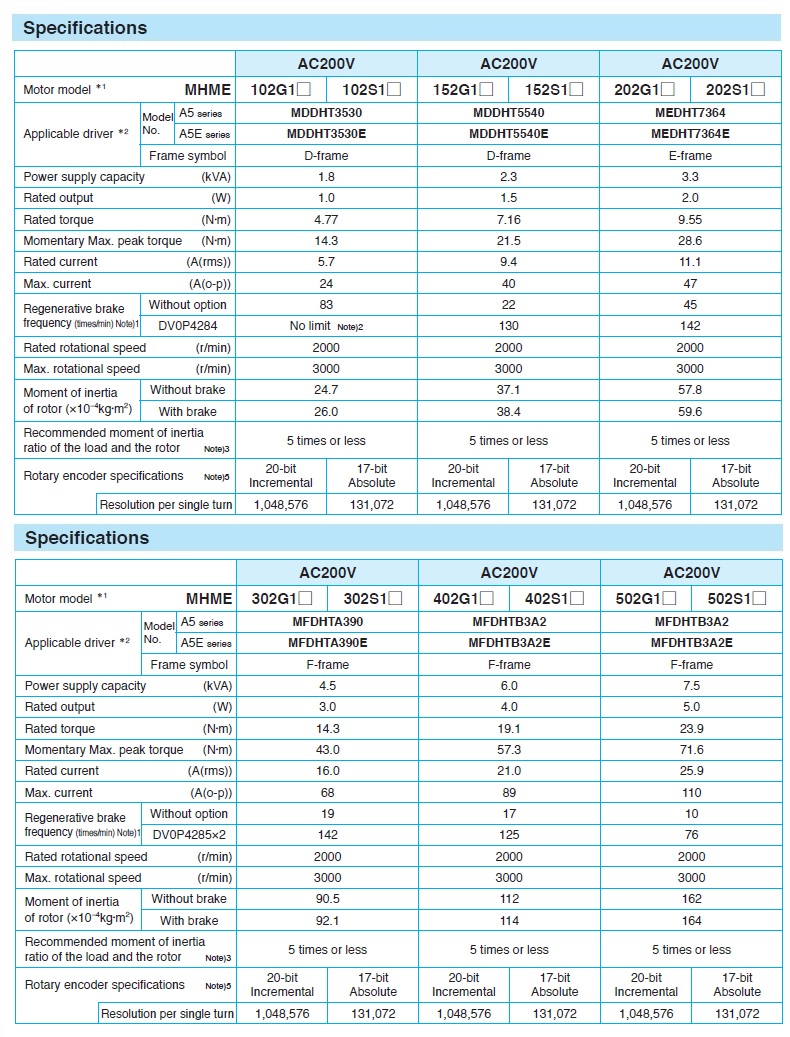

MHME Specs

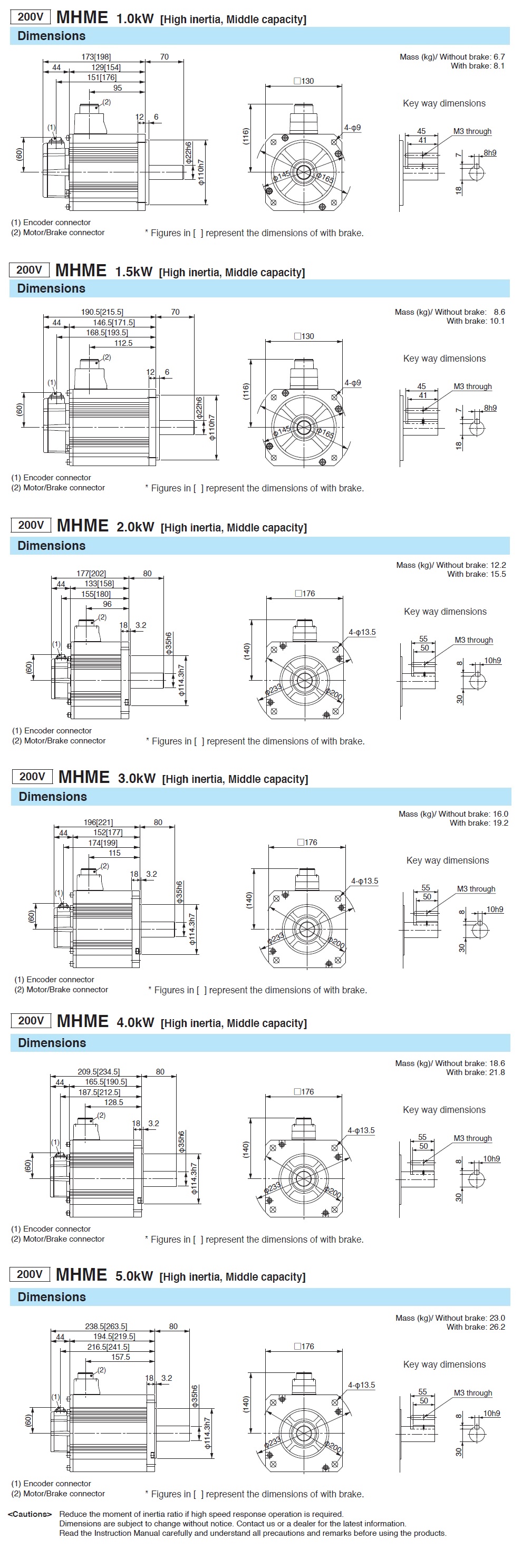

MHME CAD

Torque Curves

Buying Guide
