MicroScan: Vision MINI Xi

AutoVISION®: Machine Vision, Simplified.

Designed for simplicity and ease of use, AutoVISION empowers manufacturers to implement inspection without any advanced knowledge of machine vision or automation technology. This family of intuitive software and smart cameras provides tools for decoding, error-proofing, quality control, verification, and more and comes equipped with the customizable CloudLink interface for monitoring inspection jobs from any web-enabled device. Portable and scalable across cameras, software platforms, industrial systems, and mobile devices, AutoVISION provides a single, adaptable vision system to simplify every inspection challenge.

  • AutoVISION®: Intuitive software, 3-step setup, powerful inspection tools – no experience needed.

  • MicroHAWK®: World's smallest machine vision cameras for auto ID to inspection.

  • Vision MINI®: Miniature vision system.

  • Vision HAWK®: Most flexible, industrial vision system.

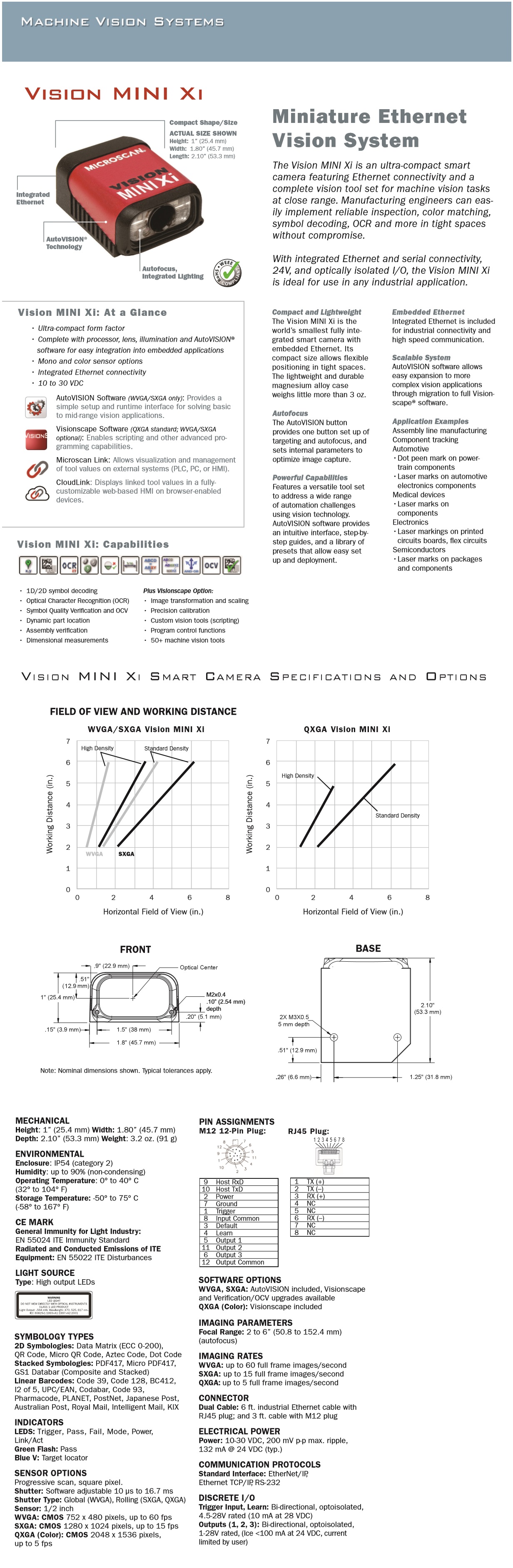

Vision MINI Xi Smart Camera

Overview

  • Ultra-compact form factor

  • OEM-ready for easy installation

  • Integrated Ethernet connectivity, 10 to 30 VDC

  • Complete with processor, autofocus lens, and illumination

  • Simplified Programming with AutoVISION®

  • Advanced Programming with Visionscape®

The Vision MINI Xi is an ultra-compact smart camera featuring Ethernet connectivity and a complete vision tool set for machine vision tasks at close range. Manufacturing engineers can easily implement reliable inspection, color matching, symbol decoding, OCR and more in tight spaces without compromise.

With integrated Ethernet and serial connectivity, 24V, and optically isolated I/O, the Vision MINI Xi is ideal for use in any industrial application.

World's Smallest: The Vision MINI Xi is the world’s smallest fully integrated smart camera with embedded Ethernet. Its compact size allows flexible positioning in tight spaces. The lightweight and durable magnesium alloy case weighs little more than 3 oz.

Powerful Capabilities: Features a versatile tool set to address a wide range of automation challenges using vision technology. AutoVISION software provides an intuitive interface, step-by-step guides, and a library of presets that allow easy set up and deployment.

Embedded Ethernet: Integrated Ethernet is included for industrial connectivity and high speed communication.

Autofocus: The AutoVISION button provides one button set up of targeting and autofocus, and sets internal parameters to optimize image capture.

Scalable System: AutoVISION software allows easy expansion to more complex vision applications through migration to full Visionscape® software.

Vision MINI Xi Smart Camera: Capabilities

  • 1D/2D symbol decoding

  • Optical Character Recognition (OCR)

  • Symbol Quality Verification and OCV

  • Dynamic part location

  • Assembly verification

  • Dimensional measurements

Plus Visionscape Option

  • Image transformation and scaling

  • Precision calibration

  • Custom vision tools (scripting)

  • Program Control functions

  • 50+ machine vision tools

Specifications:

Mechanical

  • Height: 1” (25.4 mm)

  • Width: 1.80” (45.7 mm)

  • Depth: 2.10” (53.3 mm)

  • Weight: 3.2 oz. (91 g)

Light Source

  • Type: High output LEDs

Sensor Options

Progressive scan, square pixel.

  • Shutter: Software adjustable 10 μs to 16.7 ms

  • Shutter Type: Global (WVGA), Rolling (SXGA, QXGA)

  • Sensor: 1/2 inch

  • WVGA: CMOS 752 x 480 pixels, up to 60 fps

  • SXGA: CMOS 1280 x 1024 pixels, up to 15 fps

  • QXGA (Color): CMOS 2048 x 1536 pixels, up to 5 fps

Software Options

  • WVGA, SXGA: AutoVISION included, Visionscape upgrade available

  • QXGA (Color): Visionscape included

Imaging Parameters

  • Focal Range: 2 to 6” (50.8 to 152.4 mm) (autofocus)

Connector

  • Dual Cable: 6 ft. industrial Ethernet cable with RJ45 plug; and 3 ft. cable with M12 plug

Communication Protocols

  • Standard Interface: EtherNet/IP™, Ethernet TCP/IP, RS-232

Applications:

Assembly line manufacturing

Component tracking

Automotive

  • Dot peen mark on power-train components

  • Laser marks on automotive electronics components

Medical Devices

  • Laser marks on components

Electronics

  • Laser markings on printed circuits boards, flex circuits

Semiconductors

  • Laser marks on packages and components
