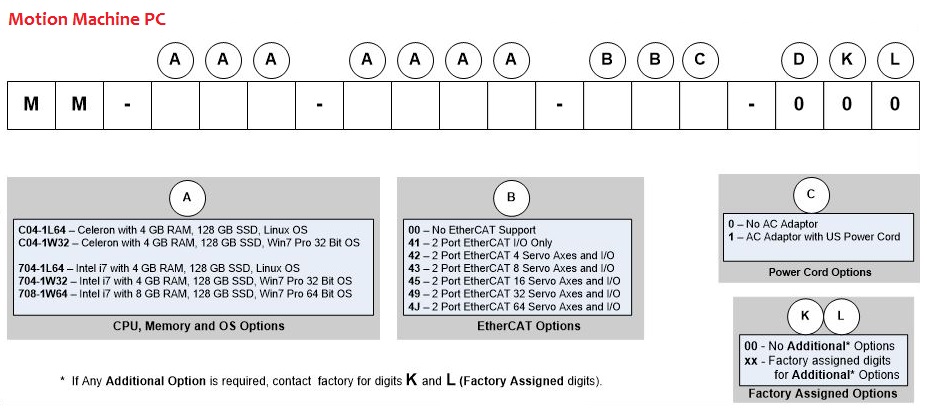

Order #: MM-XXX-XXXX-XXX-000

Description

Specifications and Drawings

Delta Tau: Motion Machine PC

The Motion Machine PC comprises a Linux- or Windows-based PC running the Power PMAC kernel. This offers all of the intelligence, power and capabilities of our Power PMAC controller with the convenience of running on familiar PC hardware, granting greater flexibility in application development. This product is ideal for distributed control networks controlled through EtherCAT and/or Modbus protocols.

Hardware Features:

EtherCAT
CoE Protocol Support for basic I/O and DS402 drives
Three display ports (DVI-I, Display Port, HDMI)
128 GB solid state drive (SSD)
Four 100/1000 Base T Ethernet ports
Two ports dedicated to Windows/Linux LAN
Two ports dedicated to Motion Core (i.e. one EtherCAT and one Modbus)Six USB ports with two of the ports USB 3.0 capable in the i7 version
Two RS232/422/485 ports
No fan or internal cabling
Industrial aluminum casing
Small form factor 10” × 6” × 2.7”, DIN-rail wall mount
9 – 36 VDC (+24 VDC @ 3 A) (Min 72 W) AT/ATX
CE, UL, CCC, FCC, C-TICK, BSMI certiGed
Two Mini PCIe Slots
