Feature
Stepping motor · Pulse train input Pulse generator for servo motor LSI

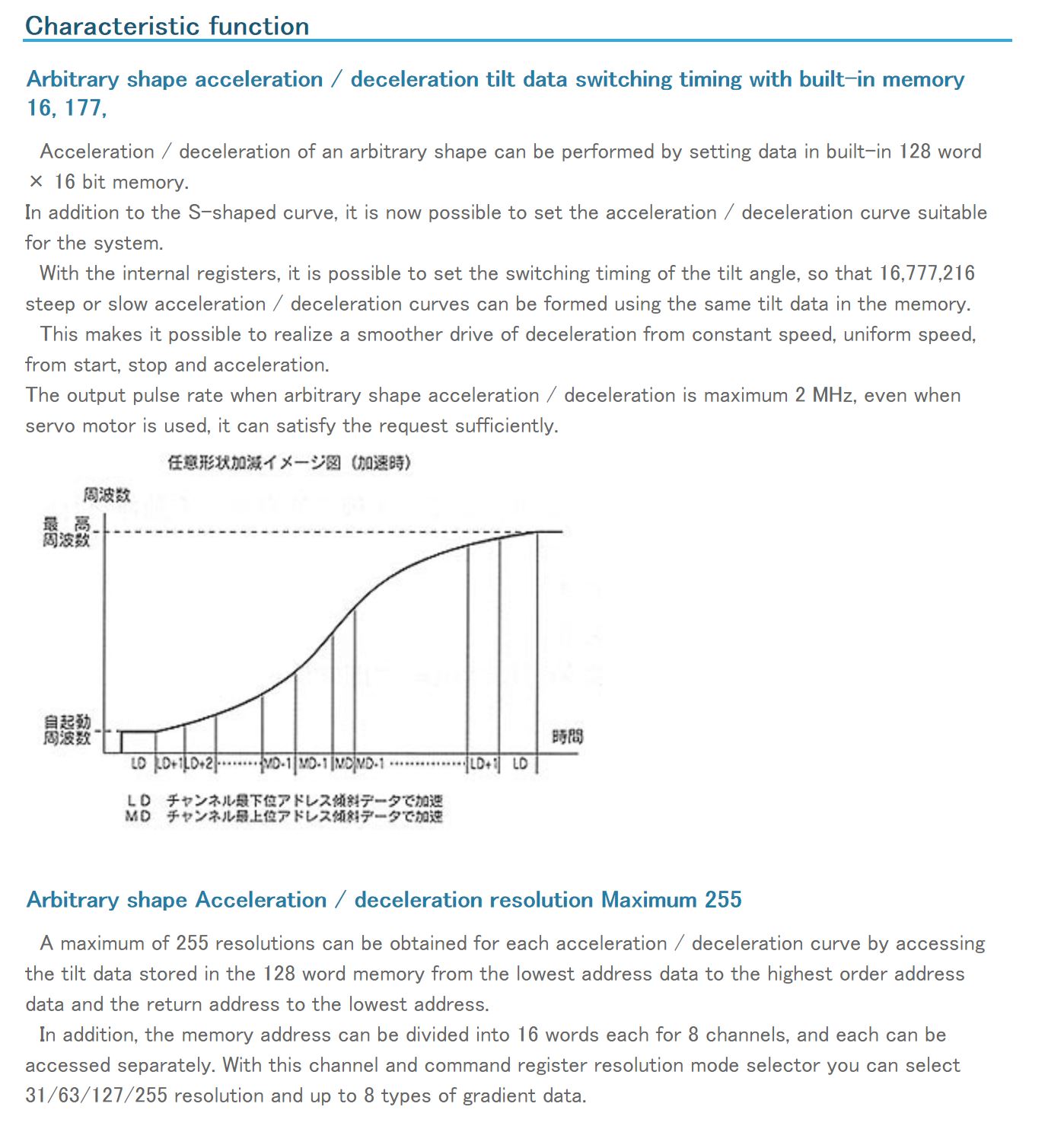

Arbitrary shape acceleration / deceleration by internal memory · data setting

Arbitrary shape acceleration / deceleration resolution, maximum 255

Store up to 8 arbitrary shape acceleration / deceleration data

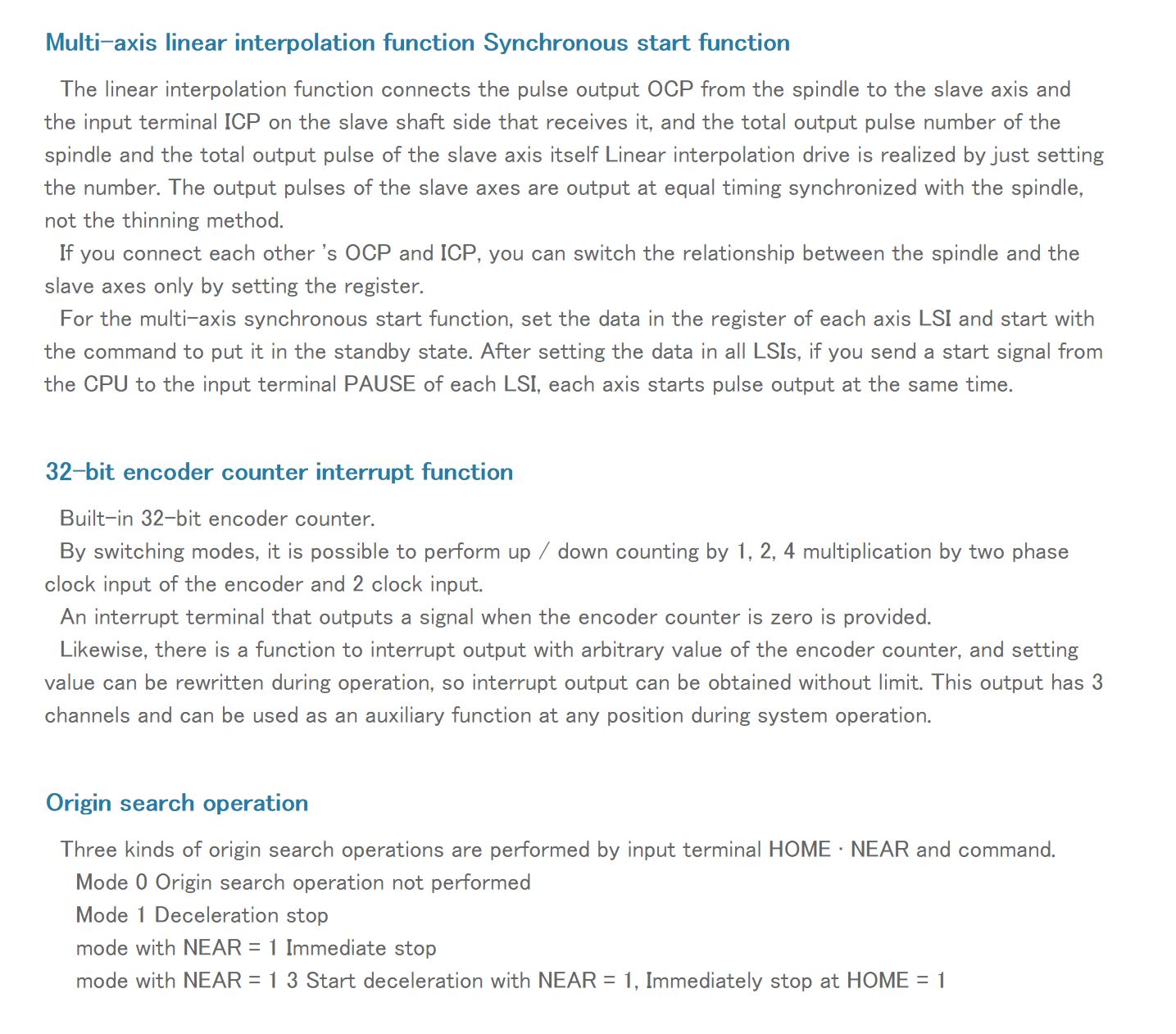

Multiaxial linear interpolation function synchronized with spindle and uniform output timing guaranteed

Multi-axis synchronous start function

Built-in 32-bit encoder counter. Interrupt function output 4 points
