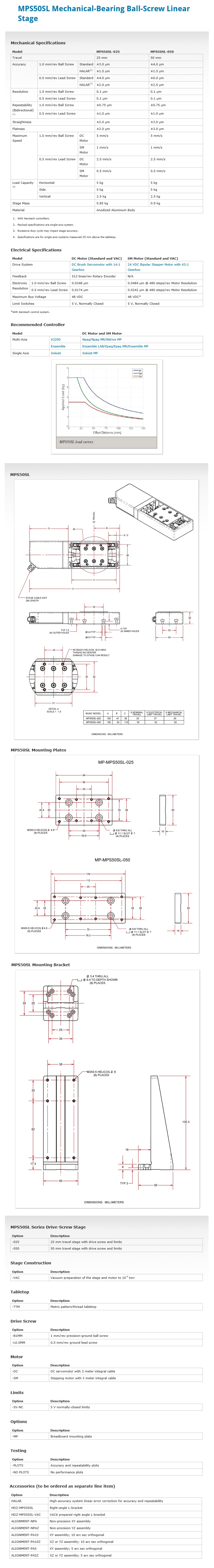

Description Specifications and Drawings


Aerotech: Linear Motor Drive Precision Stage (MPS50SL Series)

Linear Stages

Aerotech manufactures a large selection of positioning stages including linear stage models that utilize our own brushless linear direct-drive servomotors, as well as ball-screw models driven with Aerotech brush or brushless rotary motors. Innovators in linear stage design, manufacture and integration, Aerotech builds linear positioning stages for high-performance applications in industrial robots, fiber optics and photonics, vision systems, machine tools, assembly, semiconductor equipment, medical component laser machining, laser micromachining, electronic manufacturing, and other industrial automation applications.

Aerotech linear stages are available in X, XY and XYZ combinations to meet your motion requirements.

MPS50SL Mechanical-Bearing Ball-Screw Linear Stage

Design Features

  • Compact 50 mm width with travel to 50 mm

  • Precision ground ball-screw or lead-screw drive

  • DC servo or stepper motor

  • Crossed-roller bearings

  • High resolution (0.1 µm), repeatability (±0.75 µm), and accuracy (±1.5 µm)

  • High vacuum capable

  • Compact multi-axis configurations

The MPS50SL is a compact, high-performance linear positioning stage that is perfect for the confines of the laboratory while providing the high reliability required in a production environment. It is the ideal choice for measurement, testing, accurate alignment and component assembly in space-constrained applications.

High Accuracy

The precision ground ball-screw or lead screw provides exceptional accuracy, repeatability and ultra-fine positioning resolution capability to 0.1 micron. The DC servomotor is equipped with a rotary encoder. The crossed-roller linear bearings provide smooth travel and excellent payload characteristics.

Optional Vacuum Preparation

The MPS50SL is available with optional vacuum preparation to 10-6 Torr. It is the perfect compact stage choice for today's demanding vacuum applications in markets such as semiconductor manufacturing and inspection, optics fabrication and military/aerospace.

Highly Configurable

An optional breadboard mounting plate provides direct mounting to both English and metric breadboards. Any of the models can be mounted in an XY configuration and, with the right-angle L-bracket, in XYZ configurations. It can also be directly mounted to the larger MPS75SL stage.

The MPS50SL is a member of the MPS (Miniature Positioning Stage) family of linear, rotary, goniometer and vertical lift and Z stages. Two or more stages can easily be mounted together in numerous combinations using standardized mounting patterns and adapter plates.

Model No.: MPS50SL-025, MPS50SL-050
