RSF Elektronik: Exposed Linear Encoder (MS 45 Series)
RSF Elektronik: Exposed Linear Encoder (MS 45 Series)

Call for Pricing

Price Quote Form


Order #: MS-45


Model Number/Code*:

.

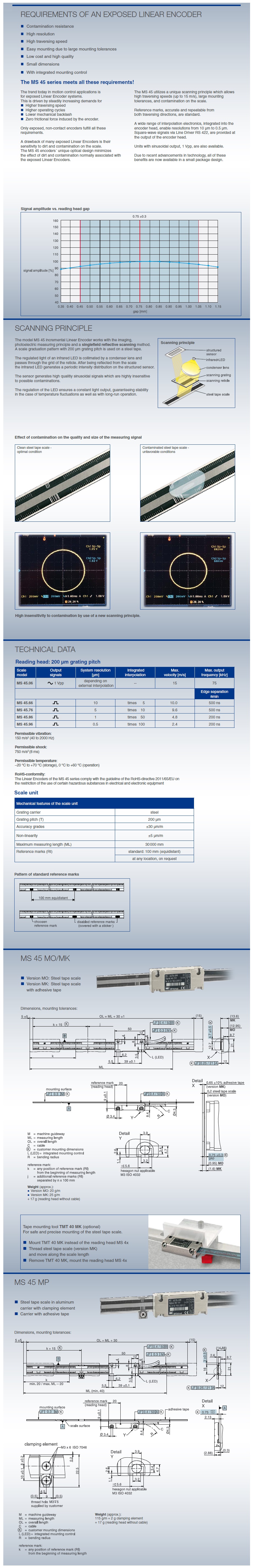

Description Specifications and Drawings


RSF Elektronik: MS 45 Series

(Open Linear Encoders with non-contact singlefield scanning)

Fields of Application:

Escalating market demand in terms of processing speed, operating cycles and mechanical backlash, together with the requirement that there should be no mechanical influences necessitates the provision of high-precision open linear measurement systems. The scale and reading head must be protected against soiling in this construction style. Open linear encoders are optimized for use in a "clean environment" (e.g. measuring machines, machines in electronics manufacture).

Performance Characteristics:

  • Non-contact optical scanning

  • No mechanical influence on the measurement slide

  • High measuring speed

  • High precision, small measuring increments

  • Reproducible thermal performance

  • Minimal space requirement

Typical Applications:

  • Measurement technology: Coordinate measuring machine, measuring microscope, presetting devices, video inspection

  • Electronics manufacturing: Circuit board assembly/ inspection / testing,screen-printing systems, LCD production

  • Semi-conductor production: Bonder

  • Linear drives

  • Rapid prototyping

  • Printer

  • Medical technology

  • Solar technology

Features:

  • Flat dimensions

  • System resolution: 10 µm - 0.5 µm

  • Indication of signal quality directly at the scanning head via 3-coloured LED

  • Easy mounting without additional test box

  • Easy mounting as a result of large mounting tolerances

  • High insensitivity to contamination by use of an extensive single field scanning principle

  • Output signals: TTL, sinus 1 Vpp

  • Signal-immunity against aging and temperature changes

  • High traversing speed: 15 m/s

  • Reference mark (accurate and repeatable from both traversing directions)

  • Integrated subdividing electronics in the encoder head: for up to times 100 interpolation (before quadrature)

  • Max. measuring length: 30 000 mm

Model No.: MS 45.06, MS 45.66, MS 45.76, MS 45.86, MS 45.96
