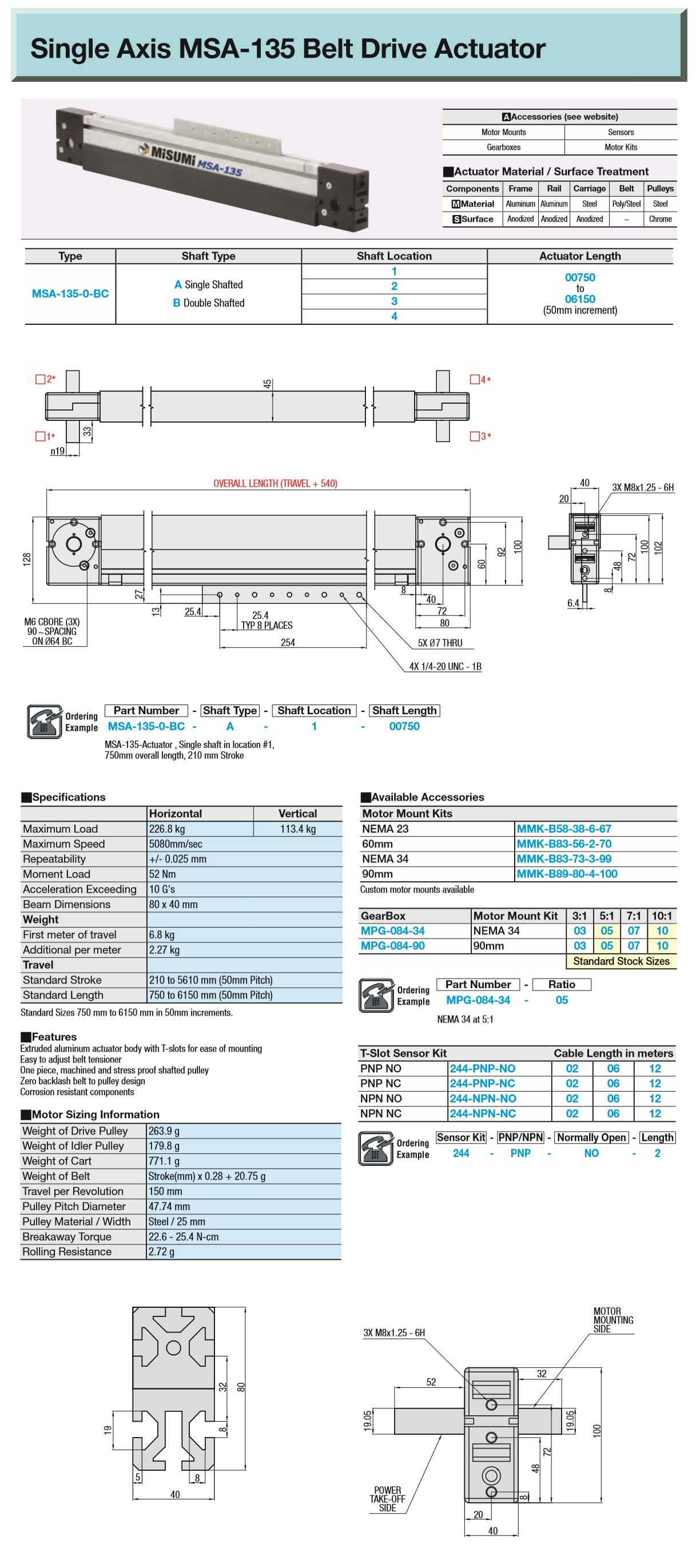

Extruded aluminum actuator body with T-slots for ease of mounting

Easy to adjust belt tensioner

One piece, machined and stress proof shafted pulley

Zero backlash belt to pulley design

Corrosion resistant components

Motion Load: 226.8 kg (Horizontal), 113.4 kg (Vertical)

Maximum Speed: 5080 mm/sec

Maximum Load: 226.8 kg

Repeatability: +/- 0.025 mm

Moment Load: 113.4 kg at 300 mm off CL

Acceleration Exceeding: 10 G's

Beam Dimensions: 80 x 40 mm

First meter of travel: 6.8 kg

Additional per meter: 2.27 kg

Standard Strokes: 210 to 5610 mm (50mm Pitch)

Standard Lengths: 750 to 6150 mm (50mm Pitch)

Weight of Drive Pulley: 263.9 g

Weight of Idler Pulley: 179.8 g

Weight of Cart: 771.1 g

Weight of Belt: Stroke (mm) x 0.28+20.75g

Travel per Revolution: 150mm

Pulley Pitch Diameter: 47.74 mm

Pulley Material/Width: Steel/25mm

Breakaway Torque: 22.6-25.4 N-cm

Rolling Resistance: 2.72g
