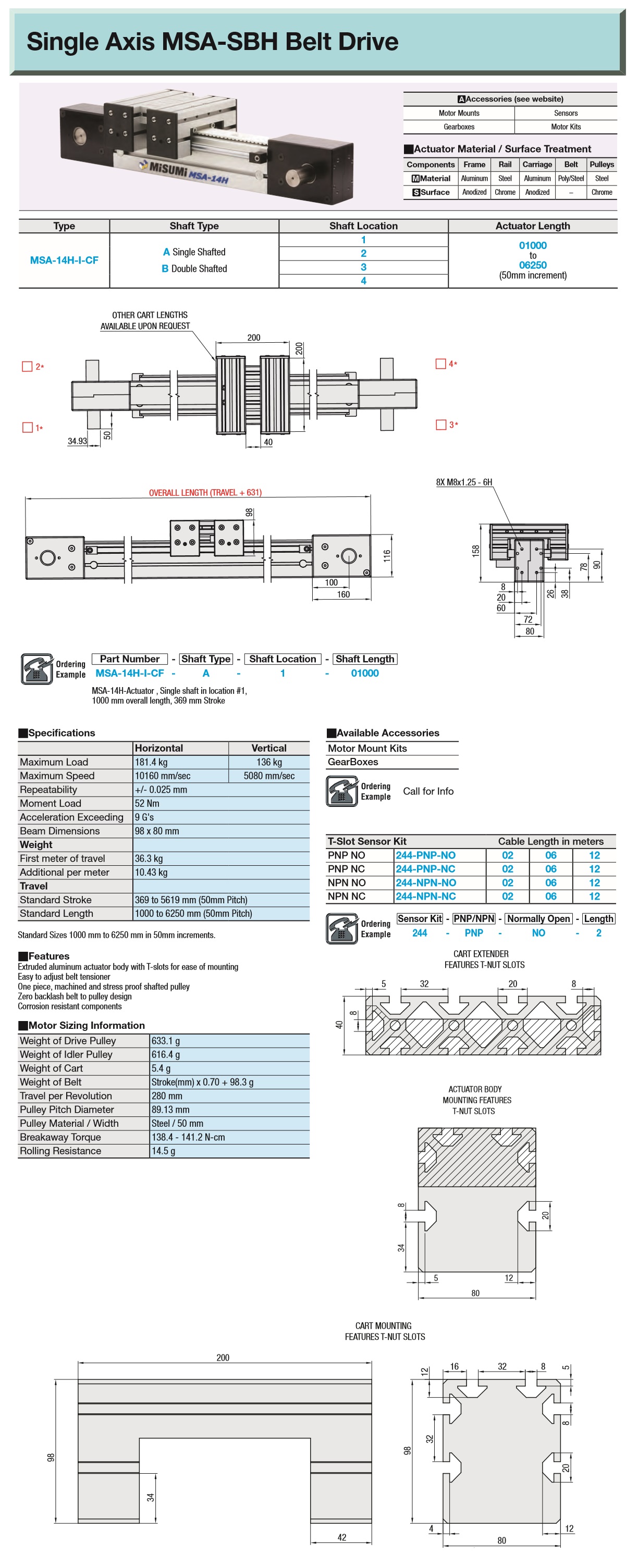

Extruded aluminum actuator body with T-slots for ease of mounting

Easy to adjust belt tensioner

One piece, machined and stress proof shafted pulley

Zero backlash belt to pulley design

Corrosion resistant components

Maximum Load: 181.4 kg (Horizontal), 136 kg (Vertical)

Maximum Speed: 10160 mm/sec (Horizontal), 5080 mm/sec (Vertical)

Repeatability: +/- 0.025 mm

Moment Load: 52 Nm

Acceleration Exceeding: 9 G's

Beam Dimensions: 98 x 80 mm

Weight: 36.3 kg (First meter of travel), 10.43 kg (Additional per meter)

Standard Stroke: 369 to 5619 mm (50mm Pitch)

Standard Length: 1000 to 6250 mm (50mm Pitch)

Weight of Drive Pulley: 633.1 g

Weight of Idler Pulley: 616.4 g

Weight of Cart: 5.4 g

Weight of Belt: Stroke(mm) x 0.70 + 98.3 g

Travel per Revolution: 280 mm

Pulley Pitch Diameter: 89.13 mm

Pulley Material/Width: Steel / 50 mm

Breakaway Torque: 138.4 - 141.2 N-cm

Rolling Resistance: 14.5 g
