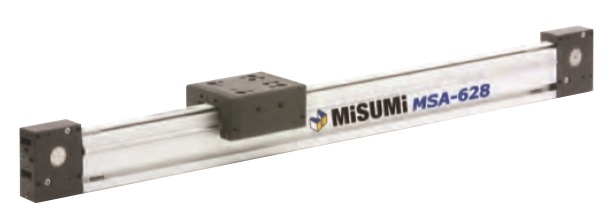

Extruded aluminum actuator body with T-slots for ease of mounting

Easy to adjust belt tensioner

One piece, machined and stress proof shafted pulley

Zero backlash belt to pulley design

Corrosion resistant components

Maximum Load: 11.36 kg (Horizontal), 11.36 kg (Vertical)

Maximum Speed: 5080 mm/sec (Horizontal), 2540 mm/sec (Vertical)

Repeatability: +/- 0.025 mm

Moment Load: 1.4 Nm

Acceleration Exceeding: 5 G's

Beam Dimensions: 56 x 28 mm

Weight: 4.55 kg (First meter of travel), 1.82 kg(Additional per meter)

Standard Stroke: 242 to 5992 mm (50mm Pitch)

Standard Length: 500 to 6250 mm (50mm Pitch)

Weight of Drive Pulley: 109.7 g

Weight of Idler Pulley: 100.4 g

Weight of Cart: 544.31 g

Weight of Belt: Stroke(mm) x 0.09 + 16 g

Travel per Revolution: 105 mm

Pulley Pitch Diameter: 33.42 mm

Pulley Material/Width: Steel / 12 mm

Breakaway Torque: 5.6 - 7.1N-cm

Rolling Resistance: 0.91 g
