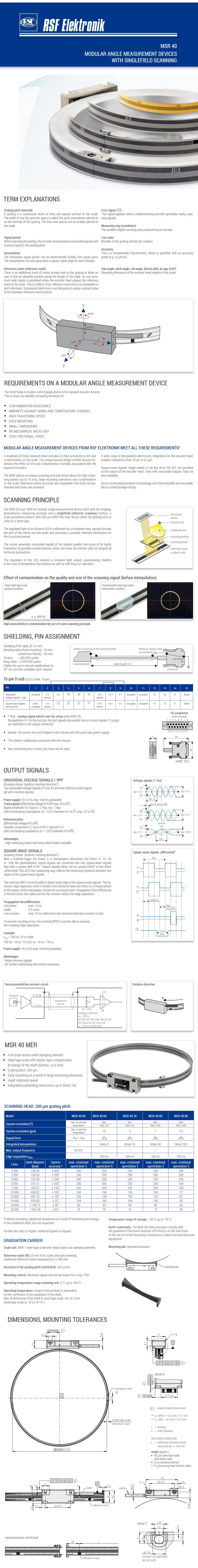

Description Specifications and Drawings


RSF Elektronik: Angle Measurement (MSR 40 MER Series)

Modular angle measurement devices with or without integral bearings establish the connection between the mechanism and the control electronics. In the field of automation, they are used both for recording the angle and position and for determining speed and acceleration values.

Modular angle measurement devices are required to convert the recorded value of a mechanical variable into electrical signals so that they can be evaluated by output devices, PLCs and industrial PCs.


MSR 40 MER Overview

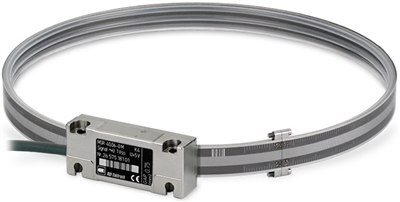

Modular angle measurement devices MSR 40 MER without integral bearing are used as position and rotator control for electrical drives and in the measurement technology.

  • Measuring range: >360°

  • Grating pitch: 200 µm

  • Accuracy of the grating (stretched): ±30 µm/m

  • Grating carrier: steel tape scale with elastic layer and clamping element


Technical Data

  • Scale unit: steel tape scale with elastic layer and clamping element

  • Reference mark (RI): 25 mm from scale-joint. Additional reference marks separated by n x 100 mm.

  • Accuracy of the grating (stretched): ±30 µm/m

  • Operating temperature range scanning head: 0 °C to +60 °C

  • Operating temperature range scale unit (dependent on the coefficient of the expansion of the shaft): max Ø difference of the shaft to steel tape scale ΔD ±0.2 mm (steel tape scale α= 10.5 × 10-6K-1).

  • Temperature range of storage: -20 °C to +70 °C

  • Weight (approx.): 45 g/m steel tape scale with elastic layer + 2.5 g clamping element + 17 g scanning head without cable.
