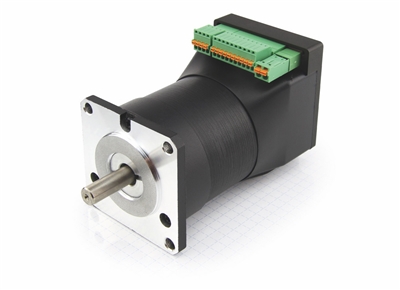

Nanotec: BRUSHLESS DC SERVO MOTOR WITH INTEGRATED CONTROLLER IN PROTECTION CLASS IP65 – NEMA 23 (PD4-CB59M024035-E-08)

Nanotec: BRUSHLESS DC SERVO MOTOR WITH INTEGRATED CONTROLLER IN PROTECTION CLASS IP65 â€“ NEMA 23 (PD4-CB59M024035-E-08)

Price : $636.50

Quantity in Stock:3

Order #: PD4-CB59M024035-E-08

Qty:

Description

Specifications and Drawings

BRUSHLESS DC SERVO MOTOR WITH INTEGRATED CONTROLLER IN PROTECTION CLASS IP65 – NEMA 23 (PD4-EB)

Smart BLDC motor with integrated controller and encoder and protection class IP65. Equipped with M12 connectors. Space-saving all-in-one servo system that simplifies installation. Flange size: 56 mm.

Features and Benefit

Controlled by fieldbus, clock & direction or analog/digital inputs
Easy to parameterize via CANopen, EtherCAT, EtherNet/IP, Modbus RTU, Modbus TCP, USB
Simple programming with the Plug & Drive Studio
Closed loop with singleturn absolute encoder
Ideally suited for dynamic applications
Long service life

TECHNICAL DATA

· Size - 2.2 in

· Interface - CANopen

· Rated Power - 135 W

· Rated Speed - 3500 rpm

· Peak Current (RMS) - 20A

· Type of Digital Inputs - 5/24V switchable

· Type of Analog Input - 0-10V

· Type of Digital Output - open-drain (max. 24 V/100 mA)

· Encoder Type - single-turn absolute

· Length - 3.74 in

· NEMA23

· Operating Voltage - 12 VDC - 48 VDC

· Rated Torque - 52.4 oz-in

· Rated Current (RMS) - 8A

· Number of Digital Inputs - 4

· Number of Analog Inputs - 1

· Digital Outputs - 2

· Encoder - Yes

· Encoder Resolution - 1024 CPR

· Weight - 0.9 kg

Support Links

PD4-CB CANopen Technical Manual (pdf, 6 MB)
PD4-CB CANopen Quick Guide (pdf, 531 KB)

CAD

PD4-CB59M024035-E-08 (stp, 2 MB)
