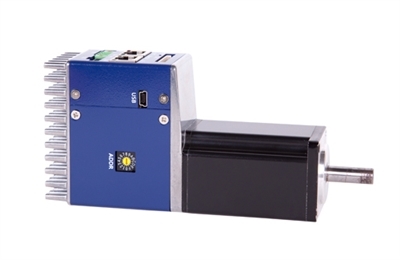

LS Mecapion: Pegasus Integrated Servo System PEGA-B03A-AN-MA
LS Mecapion: Pegasus Integrated Servo System PEGA-B03A-AN-MA

Alternate View


Price : $978.00


Availability: Usually Ships in 6 to 8 Weeks
Order #: PEGA-B03A-AN-MA
Qty:

Description Specifications and Drawings


LS Mecapion: PEGASUS Integrated Servo System

LS Mecapion's Pegasus product can control a motor, encoder and drive all at once with our professional skills. We provide perfect performance, accurate motion and scrupulous management of power. Those are the significant features that build the foundation of trouble-proof machinery for any demanding industrial application.

LS Mecapion goes on to enhance our R&D endeavor in the area of compact design with sophisticated digital processing technology. It is the cradle for all of our efforts in making the most elaborate, integrated motion control solutions available in the present market.

Compactness, Advancement, Modularity: we define as PEAGASUS.

It is able to provide trouble-proof AC servo system, adapt with a wide range of clever AC Servo System and apply multi-axis controls through EtherCAT. Also, it makes set-up extremely easy and shortens set-up time.

EtherCAT Communication

Pegasus series supports various communication standards such as FoE, EoE and CoE. FoE is for firmware updating. EoE is for Parameter setting, adjustment, auxiliary functions, and parameter copy through Ethernet for multi-axis. CoE is for standard drive control connectivity via IEC 61158 Type12, IEC 61800-7 CiA 402 drive profile. EtherCAT Communication allows long-distance wiring up to 100m cable length between nodes.

Pegasus provides the following benefits:

Cost-effective

Pegasus series does not require motor and encoder cables; it has standard simple EtherCAT wiring for communication. Also, Pegasus series is an integrated servo system which has a motor, encoder, and driver all in one.

Advanced

Pegasus series uses the magnetic encoder and optimizes PWM algorithm with DC48V input power for controlling the compact motor. Furthermore, we use ASIC which controls sensing, amplifying and signal output part in the magnetic encoder. We also applied new winding technology which is specialized in low voltage. An advanced magnetic encoder and low voltage winding technology make a more stable and high performance.

Compact and Modulated

Pegasus series is developed for harsh environments and limited spaces. We have modulated all the parts and components such as encoder, heatsink, winding method and etc for better performance. Pegasus series becomes integrated servo system which can withstand harsh vibration and it also has the feature of reduced temperature of the motor while operating.

PC Communication Software

For updating firmware into Pegasus drive, Pegasus series provides its own PC software which enables to perform all the functions include firmware updating. It will help you to do many things as well as parameter setting, adjustment, auxiliary functions, and parameter copy function through USB.

Application of Linear Axes Unit

Linear axes unit is used for various fields such as moving, autoloader inspection, line up, dispensing, carving and etc with an advantage of convenience, simple construction and chief investment compared to other types.

Dispensing Unit

Grease gun will input fixed volume or quantity with the required speed to a certain place by a conveyor. At this point in time, the utilization rate of this technical machine using many axes have has been increasing. This line of robots and linear motion units are designed with simplicity to be automated. Also, it can be used for easily integrating into automated robotic applications. This advanced robot system that specializes in dispensing is used in a large semiconductor company.

Palletizing Unit

Place certain items into the pallet with several spaces as programming order. This type of system is used to automate the pallet building process in a distribution, warehouse, and manufacturing facility. And this equipment offers tailored solutions for palletizing systems in the glass industry and beverage industry by using robot palletizer technology and different gripping facility; high performance can be fulfilled in a small room.

Pick and Place Unit

Move several parts to the assembly line. Then, pick and place. These pick and place equipment commonly pick up components and place them into the fixture for the assembly process. This system is designed for a production step including supply and alignment system and has significant flexibility to move parts. And it makes automated assembly system’s efficiency in maximization by using continuous operation in warehouses, distribution centers, and factories to reduce labor costs and increase production handling capacity.

Features:

  • Concept: Motor + Encoder + Drive

  • Input Power: DC 48[V]~60[V]

  • Capacity: 50[W]~300[W]

  • Rated Current: 1.77[A]~6.8[A]

  • Encoder: Magnetic Encoder(12bit/Single-turn Absolute)

  • Communication: EoE,CoE,FoE/USB2.0(HID)

  • Control Mode: Velocity, Position, Torque
