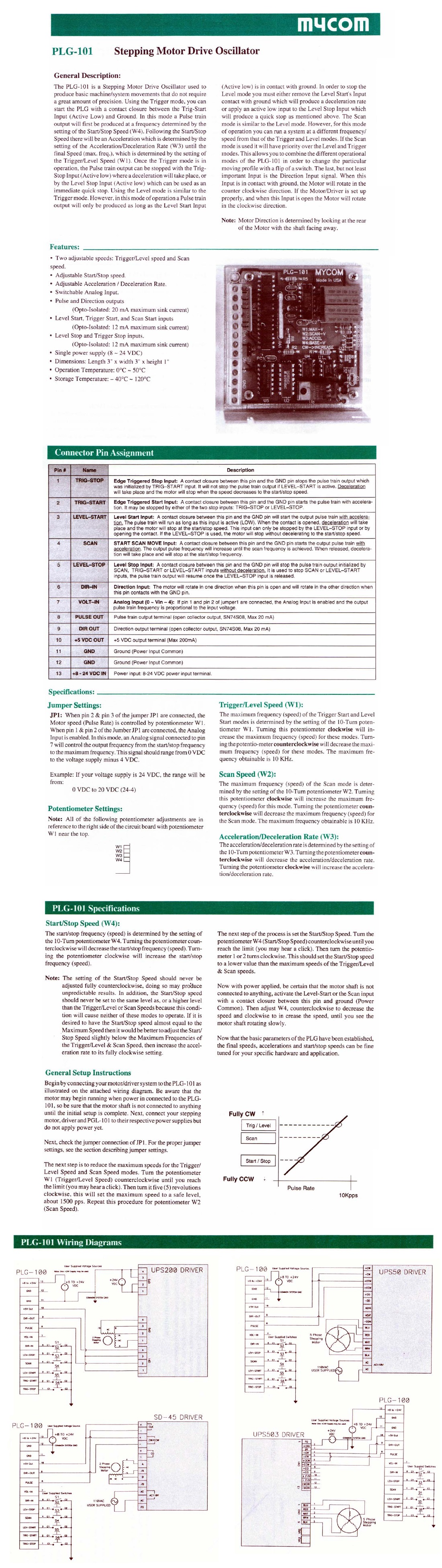

MYCOM: Stepping Motor Drive Oscillator (PLG-101 Series)

The PLG-101 is a Stepping Motor Drive Oscillator used to produce basic machine/system movements that do not require a great amount of precision. Using the Trigger mode, you can start the PLG with a contact closure between the Trig-Start Input (Active Low) and Ground. In this mode, a Pulse train output will first be produced at a frequency determined by the setting of the Start/Stop Speed (W4). Following the Start/Stop Speed, there will be an Acceleration which is determined by the setting of the Acceleration/Declaration Rate (W3) until the final Speed (max. freq.), which is determined by the setting of the Trigger/Level Speed (W1). Once the Trigger mode is in operation, the Pulse train output can be stopped with the Trig-Stop Input (Active Low) where a deceleration will take place, or by the Level Stop Input (Active Low) which can be used as an immediate quick stop. Using the Level mode is similar to the Trigger mode. However, in this mode of operation, a Pulse train output will only be produced as long as the Level Start Input (Active Low) is in contact with ground.

Features:
