Aerotech: Linear Motor Drive Precision Stage (PRO165LM Series)

Linear Stages

Aerotech manufactures a large selection of positioning stages including linear stage models that utilize our own brushless linear direct-drive servomotors, as well as ball-screw models driven with Aerotech brush or brushless rotary motors. Innovators in linear stage design, manufacture and integration, Aerotech builds linear positioning stages for high-performance applications in industrial robots, fiber optics and photonics, vision systems, machine tools, assembly, semiconductor equipment, medical component laser machining, laser micromachining, electronic manufacturing, and other industrial automation applications.

Aerotech linear stages are available in X, XY and XYZ combinations to meet your motion requirements.

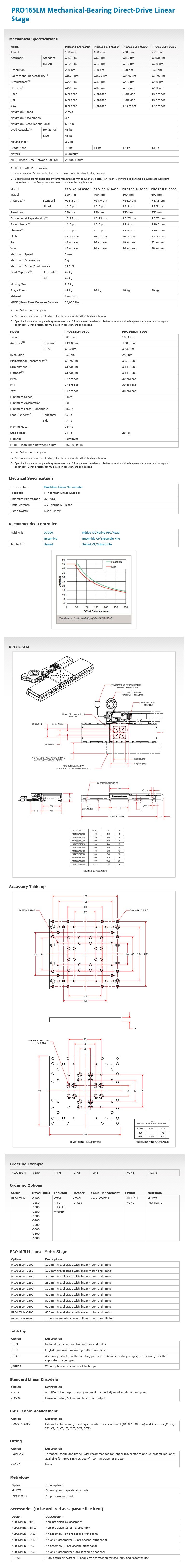

PRO165LM Mechanical-Bearing Direct-Drive Linear Stage

Design Features

The PRO165LM is a high-performance linear motor stage that is as accurate as it is versatile, providing a cost-effective alternative for precision applications. A linear motion guide bearing system and high-performance brushless linear servomotor make the PRO165LM the stage of choice in industrial applications such as laser machining, medical component manufacturing and other applications requiring high accuracy in a production environment.

Construction Features

Sealed linear motion guide bearings with integral wipers are incorporated to provide excellent payload capability and long life. Both the metal waycover and tabletop are treated with a hardcoat that is scratch-resistant and provides outstanding protection in the harshest applications. The tabletop utilizes stainless steel Helicoil® inserts to protect mounting holes against thread wear. Several tabletop options are available for metric or English mounting, as well as for direct interface with our popular ADRS and AGR rotary stages. In addition, configurable cable management options are available for single- or multi-axis systems.

Linear Motor Drive

Aerotech’s high-power, cog-free, BLMC series linear motor drives the PRO165LM. The non-magnetic forcer coil provides high force with zero cogging for super-smooth velocity and position control. This zero-cogging design is ideal for applications requiring outstanding contour accuracy and smooth velocity profiling. As with all Aerotech linear motor stages, the linear motor has zero backlash, no windup, zero friction and outstanding system responsiveness. The magnetic field of the linear motor is totally self-contained within the U-channel design. Many high-performance applications cannot tolerate the stray magnetic fields generated by flat motor magnet tracks.

High Performance

Noncontact linear encoders with micron-level repeatabilities are standard on all PRO165LM series stages. A line-driver output or amplified sine-wave output encoder is available.

The optional HALAR factory calibration further increases the standard accuracy and repeatability. Aerotech manufactures a wide range of matching drives and controls to provide a fully integrated and optimized motion solution.

Model No.: PRO165LM-0100, PRO165LM-0150, PRO165LM-0200, PRO165LM-0250, PRO165LM-0300, PRO165LM-0400, PRO165LM-0500, PRO165LM-0600, PRO165LM-0800, PRO165LM-1000
