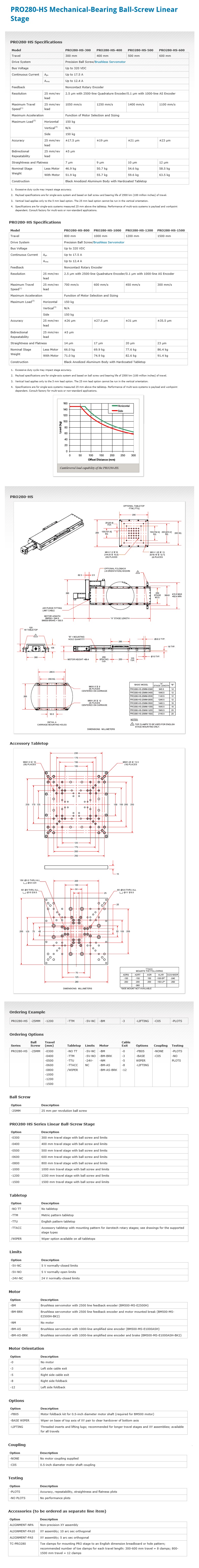

PRO280-HS Mechanical-Bearing Ball-Screw Linear Stage

Design Features

When a PRO-style stage is desired, but more load and speed capability is necessary, the PRO280-HS is ideal. The PRO280-HS comes with a 25 mm/rev ball screw for high-speed applications requiring up to 1400 mm/s and the stage features a maximum load of 150 kg. It is similar in design to the PRO225 series, providing additional load carrying capability with larger bearings and a wider cross-section.

Rugged Construction

The hard-cover design provides protection from debris. The robust aluminum cover is hard-coated providing a scratch resistant surface. The side seals keep dirt and particulates out of the stage and protect the bearing surfaces from contamination. The vertical orientation of the seals easily deflects debris away from the stage. The tabletop can be outfitted with an optional brush assembly to remove any particles that collect on the hard cover. Competitive top-seal designs can ingest debris in the seal, resulting in the eventual failure and replacement of the sealing mechanism.

NEMA 34 Motor Support

The PRO280 has a NEMA 34 motor flange mounting interface and can be ordered with an Aerotech standard brushless rotary motor installed. Alternatively, the stage can be ordered without a motor for the attachment of third-party DC brush, brushless or stepper motors.

Highly Configurable

The stage is equipped with a 25 mm/rev ball screw for all your high-speed applications and can be outfitted with English or metric bolt-hole pattern tabletops. A motor-mounted brake option is available to prevent back-driving the screw when power is removed from the servomotor. A fold-back kit is also available to effectively reduce the overall stage length for space-constrained applications.

Model No.: PRO280-HS-300, PRO280-HS-400, PRO280-HS-500, PRO280-HS-600, PRO280-HS-800, PRO280-HS-1000, PRO280-HS-1200, PRO280-HS-1500
