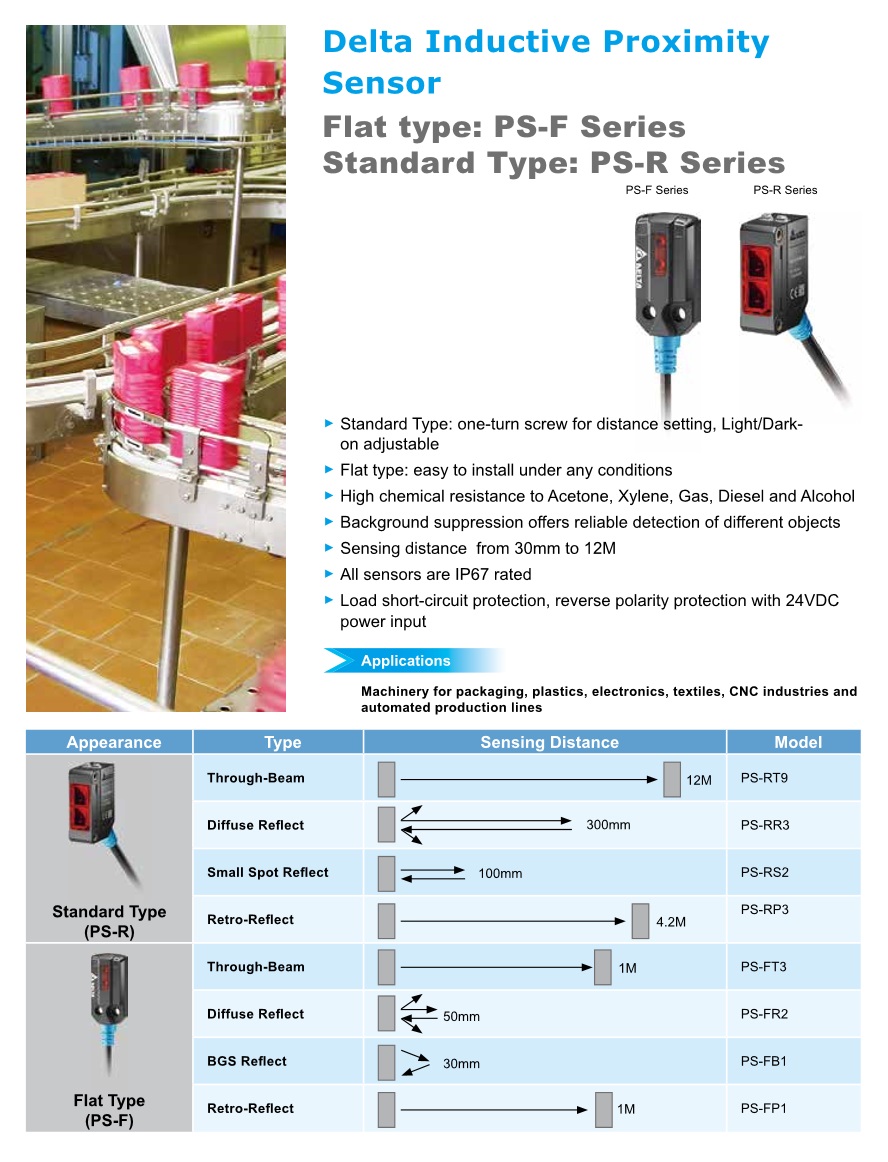

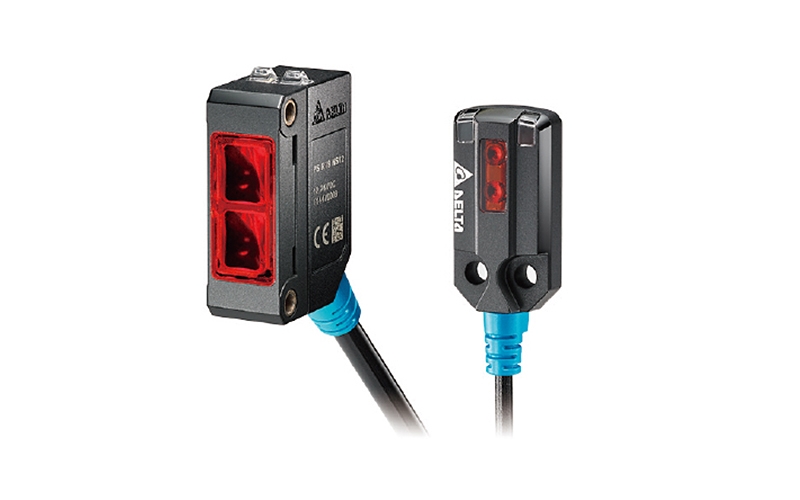

Delta: Smart Sensor (PS-F and PS-R Series)

The Delta Smart Sensor features a slim design with a metallic exterior, and it can be applied to a wide range of applications, such as food and beverages, packaging, pharmacy, electronic component equipment, rubber and plastics, warehouses, machine tools industries, and other industrial automation production lines. Users can select the best models according to specific environments and detection distances.

All models are highly chemical resistant and IP67 rated.

Photoelectric Sensor

The flat type photoelectric sensors are easily installed on any equipment without space limitations, and the standard type is adaptable to a variety of industrial environments. Detection range: 30mm ~ 12M

Features:

Wider detection range
All Sensors are IP67 rated
High chemical resistance in all models with tolerance to Acetone, Xylene, Gas, Diesel, Alcohol
CE certification

Specifications:

Voltage Range: 12~24 VDC ±10%
Number of Outputs: NPN x 1 or PNP x 1 or Push-Pull x 1
Output: Max. durable pressure 30 V / 50 mA, residual voltage 1.5 V (Flat Type), Max. durable pressure 30 V / 100 mA, residual voltage 1.5 V (Rectangular Type)
Response Time: ON → OFF : 0.5 ms, OFF → ON 0.5 ms
Light Source: 4 element, Red LED (630 nm)
Protection Circuit: Protection against reverse power connection, output overcurrent, power supply surge, output surge
Operation Temperature: -25 ºC ~ 55 ºC Storage Temperature: -25 ºC ~ 75 ºC
Materials: Lens: PC ; Case: PBT ; Wire: PVC
Cables: 3 Wire 2M PVC Cable Transmitter: 2 Wire 2M PVC Cable, M8 Connector with 200 mm Cable (Flat Type), M12 Connector with 200 mm Cable (Rectangular Type).
Dimensions: 16 × 30 × 6.8 mm (Flat Type), 32.8 × 11.2 × 21.1 mm (Rectangular Type)
