Kavlico: Thin Film Pressure Sensors (PTA5000 Series)

Innovative Sensors

Kavlico has more than 50 years of experience in the design of innovative pressure, position, force and other specialty sensors and transducers for mission critical applications in harsh environments for Transportation, Building Equipment, Energy & Infrastructure, Food & Beverage, Medical as well as Aerospace & Defense markets.

Kavlico Pressure Sensors pioneered the electronic pressure sensor and transducer market. Focused on premium quality products, and adapting innovative pressure sensing technologies to meet customer needs, Kavlico Pressure continues to be a leader in creating pressure sensing solutions for a cleaner, safer, more comfortable world.

Our broad range of technologies, such as Thin Film, Ceramic Capacitive, Piezo-Resistive and Silicon Capacitive, allows Kavlico Pressure Sensors to provide cutting-edge measurement devices for a diverse number of applications within several market segments.

Flexible by design, Kavlico Pressure Sensors pressure sensors and transducers can be easily adapted to meet unique customer requirements.

Thin Film Pressure Sensors

Kavlico Pressure Sensors innovative Thin Film Pressure Sensors utilizes a TiON sense element in a welded, hermetically sealed, stainless steel housing, measuring the pressure and the temperature of the media.

Kavlico's Thin Film Pressure Sensors and Transducers were developed for Industrial and Transportation applications to meet the most stringent performance and quality standards. The innovative, compact designs and low weight in combination with high media resistance and high operating temperature capability provides highly reliable and long term stability for the most demanding applications.The innovative thin film pressure sensors are manufactured in an up to ISO class 5 clean room in Minden, Germany.

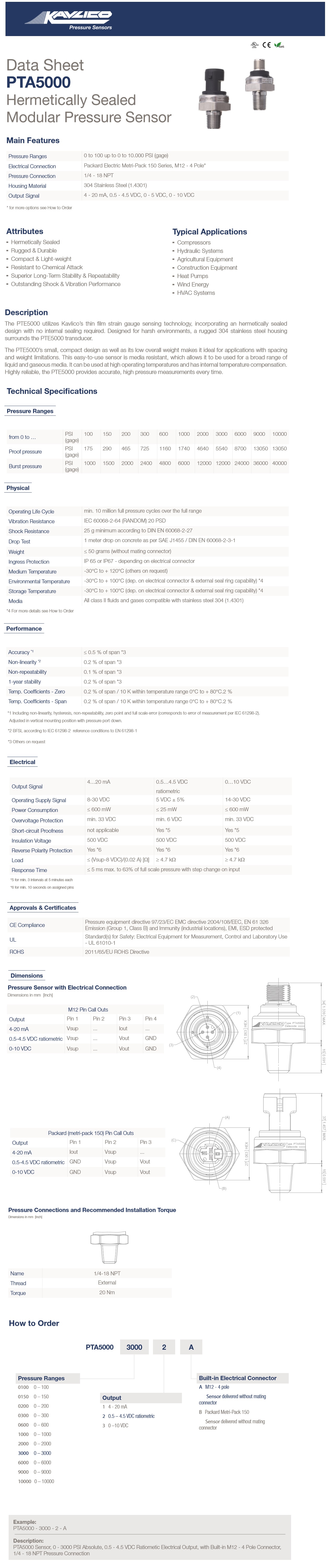

The PTA5000 pressure sensor utilizes Kavlico’s thin film strain gauge sensing technology, incorporating a hermetically sealed design with no internal sealing required. Designed for harsh environments, a rugged 304 stainless steel housing surrounds the PTA5000 transducer.

With it's small, compact design and light weight the PTA5000 pressure sensor is ideal for applications with packaging and weight limitations. This easy-to-use pressure sensor is media resistant, allowing for a broad range of liquid and gaseous media compatibility. It can be used at high operating temperatures and has integral temperature compensation. Reliable, accurate, and rugged the PTA5000 is a solution to the most demanding, mission critical applications. To ensure a world-wide usage the senor is cULus listed and CE certified.

Made in Germany

Features

Typical Applications

Full Scale Pressure Ranges

0 - 100, 0 - 150, 0 - 200, 0 - 300, 0 - 600, 0 - 1000, 0 - 2000, 0 - 3000, 0 - 6000, 0 - 9000 and 0 - 10000 Psi (Gage)
