High energy gamma radiation will attack all of the materials in a device, however the non-metallic materials in a motor or resolver are subject to more rapid breakdown. Lubricants, varnish, adhesives, insulations, and cables deteriorate and ultimately crumble. Empire Magnetics radiation hardened stepper motors, motors and resolvers (RH-) combine the best available radiation resistant materials with practical commercial practices to provide products with the longest possible service life within pragmatic budgetary considerations.

The standard RH series products are rated for 2 x 108 Rads, total accumulated dose of Gamma radiation. However on a custom basis, products can be provided with life in excess of 1 x 109 Rads, TAD. Several of these products were tested in a hot cell, all of the supplied products exceeded requirements. (For details see frequently asked questions (FAQ) at the bottom of this page)

Radiation hardened include stepper motors, resolvers, brushless motors, gearboxes, brakes. On a custom basis AC motors, assemblies of various types and complete systems can be provided.

Note: Waterproof and Radiation Hardened products have been developed for specific applications. This combination requires a compromise of radiation resistance or a significant design change.

Radiation Hardened Stepper Motor Frame Size Selection:

High energy, gamma radiation will attack all non-metallic materials in the motor. Lubricants, varnish, lamination bonding, and cable insulation deteriorate and ultimately crumble. Empire Magnetics' RH Radiation Hardened Stepper Motors combine the best available radiation resistant materials to provide motors with the longest possible service life in a radiation environment.
They have been tested to a total accumulated dose of 2 x 108 Rads. Frame size selection:

Radiation Hardened Stepper Motors are typically made in groups or families, the families are identified by the outer diameter or size of the square, these references are called frame sizes. In the American system, a 23 frame is a nominal 2.3 inches in diameter. For Radiation Hardened Stepper Motors less than one inch in diameter, the reference is typically known as a size. Herein is a list of the Radiation Hardened Stepper Motor frame sizes offered by Empire Magnetics Inc. and some of the characteristics of the group that will allow you to select from them.

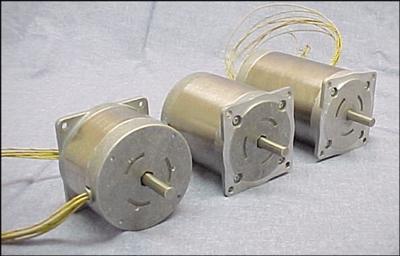

Radiation Hardened Stepper Motor Frame Size 23: Nominal outer dimension of 2.3 inches. Extremely popular size useful for a wide range of industrial applications. Torque range of 60 to 150 oz-in. Cylindrical shaped Radiation Hardened Stepper Motor with square front flange.

Model #: RH-U21, RH-U22, RH-U23
