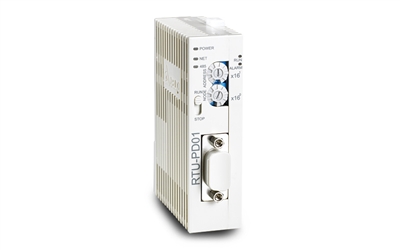

Delta: Industrial Fieldbus Solution (RTU-PD01 Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

PROFIBUS Communication Devices (RTU-PD01 Series)

  • Supports max. baudrate 12M bps

  • Applicable for distributed control system in industrial automation

Features:

  • A PROFIBUS DP remote communication module

  • Supports PROFIBUS DPV0 cyclic data transmission

  • Auto-detects baud rate, diagnosis

  • Max. baud rate: 12M bps

  • Connectable to 8 DVP-S series analog I/O modules

  • Connectable to 256 points of digital I/O modules

  • RS-485 port is connectable to max. 16 Modbus slaves

  • Supports max. 100 bytes of I/O data input and 100 bytes of output

Specifications:

  • Transmission method: High-speed RS-485

  • Connector: DB9

  • Serial baud rate: 9.6k, 19.2k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, 12M bps

  • Message type: DPV0

  • Power supply voltage: 24 VDC (-15 to 20%)

  • Power consumption: 2.5 W

  • Insulation voltage: 500 VDC
