Nanotec: SCA5618 – STEPPER MOTOR – NEMA 23

Nanotec: SCA5618 â€“ STEPPER MOTOR â€“ NEMA 23

Alternate View

Price : $103.70

Price with Selected Options: $103.70

Availability: Usually Ships in 3 to 5 Days
Order #: SCA5618

Model Number/Code*:

Qty:

Description

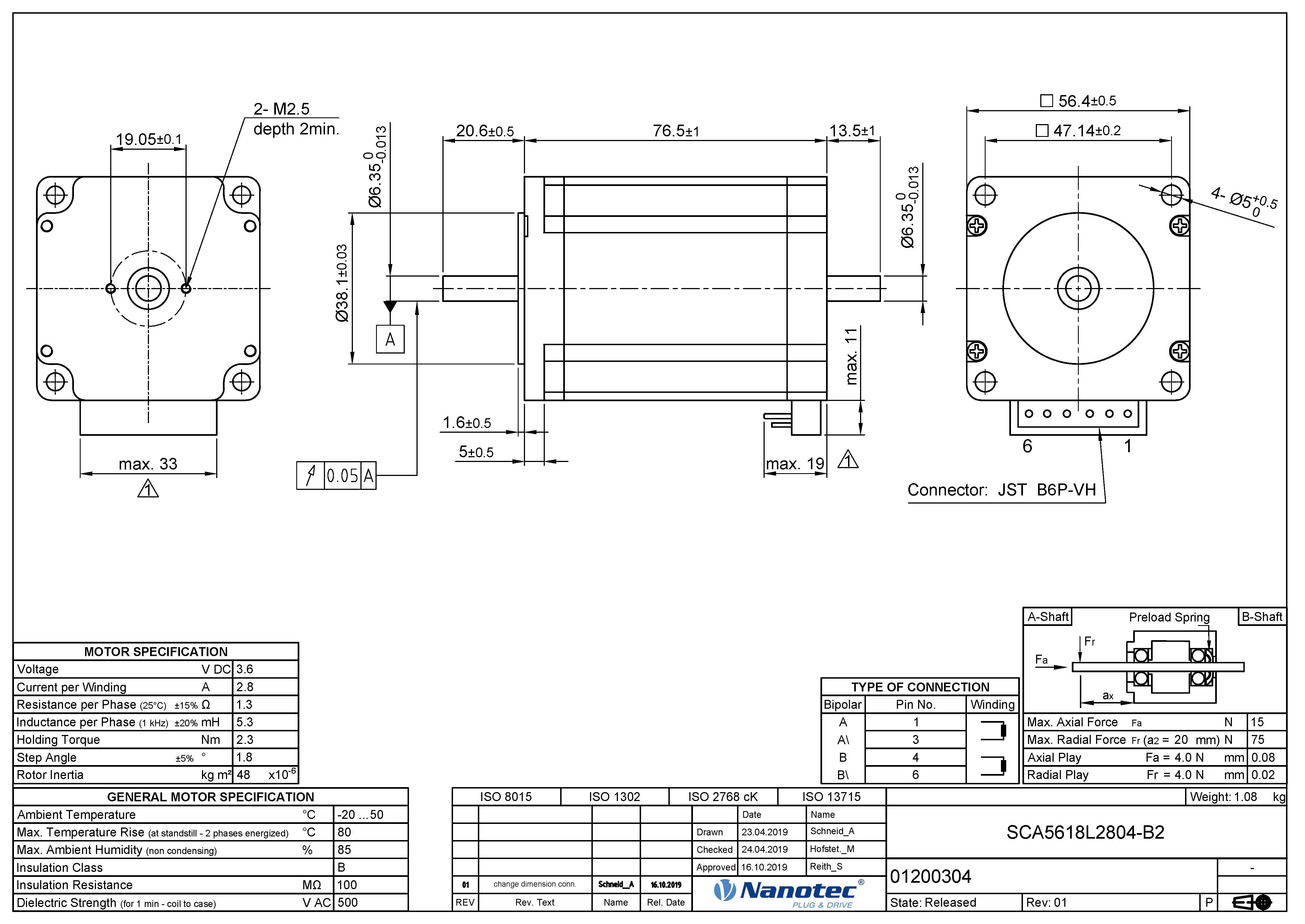

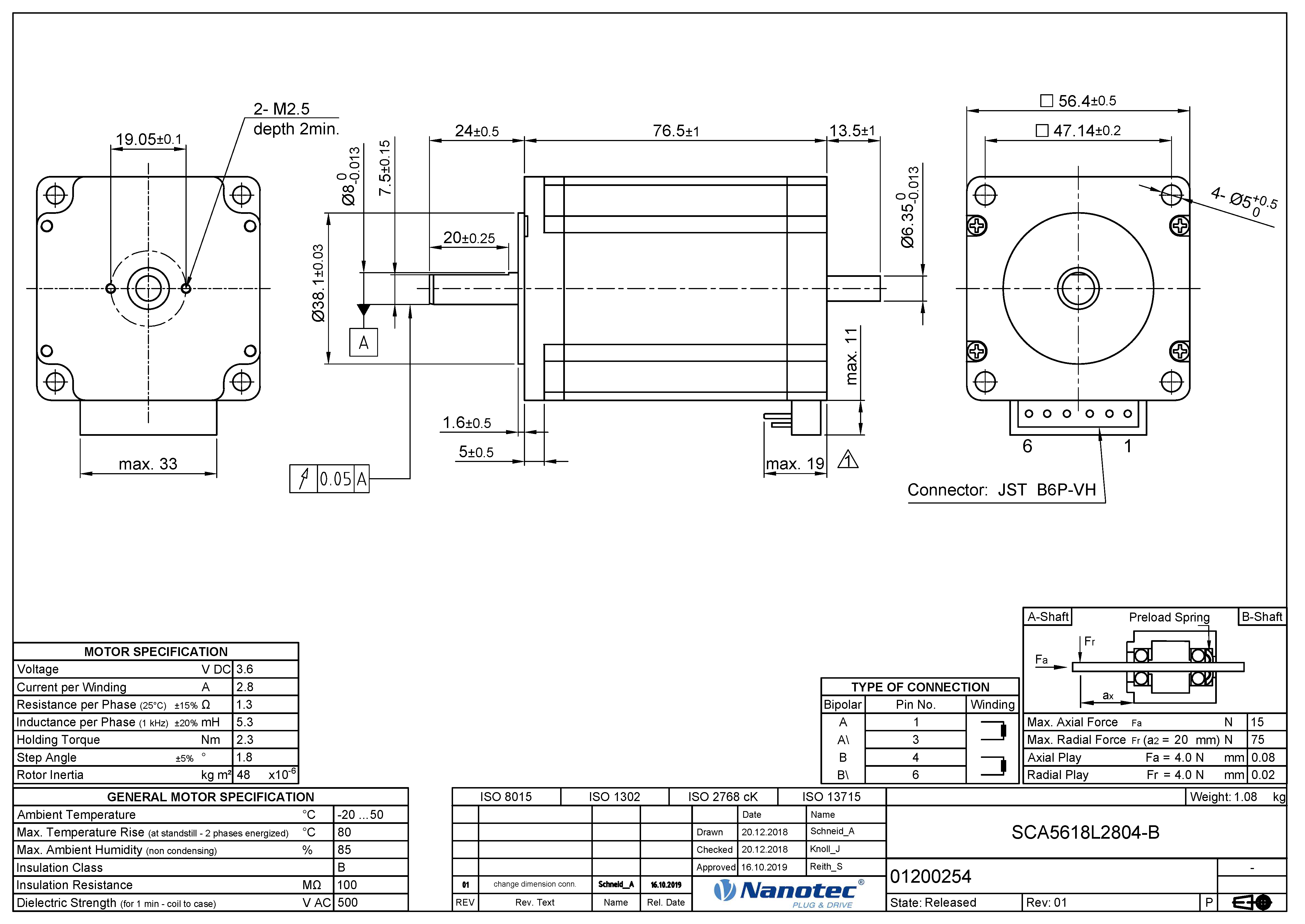

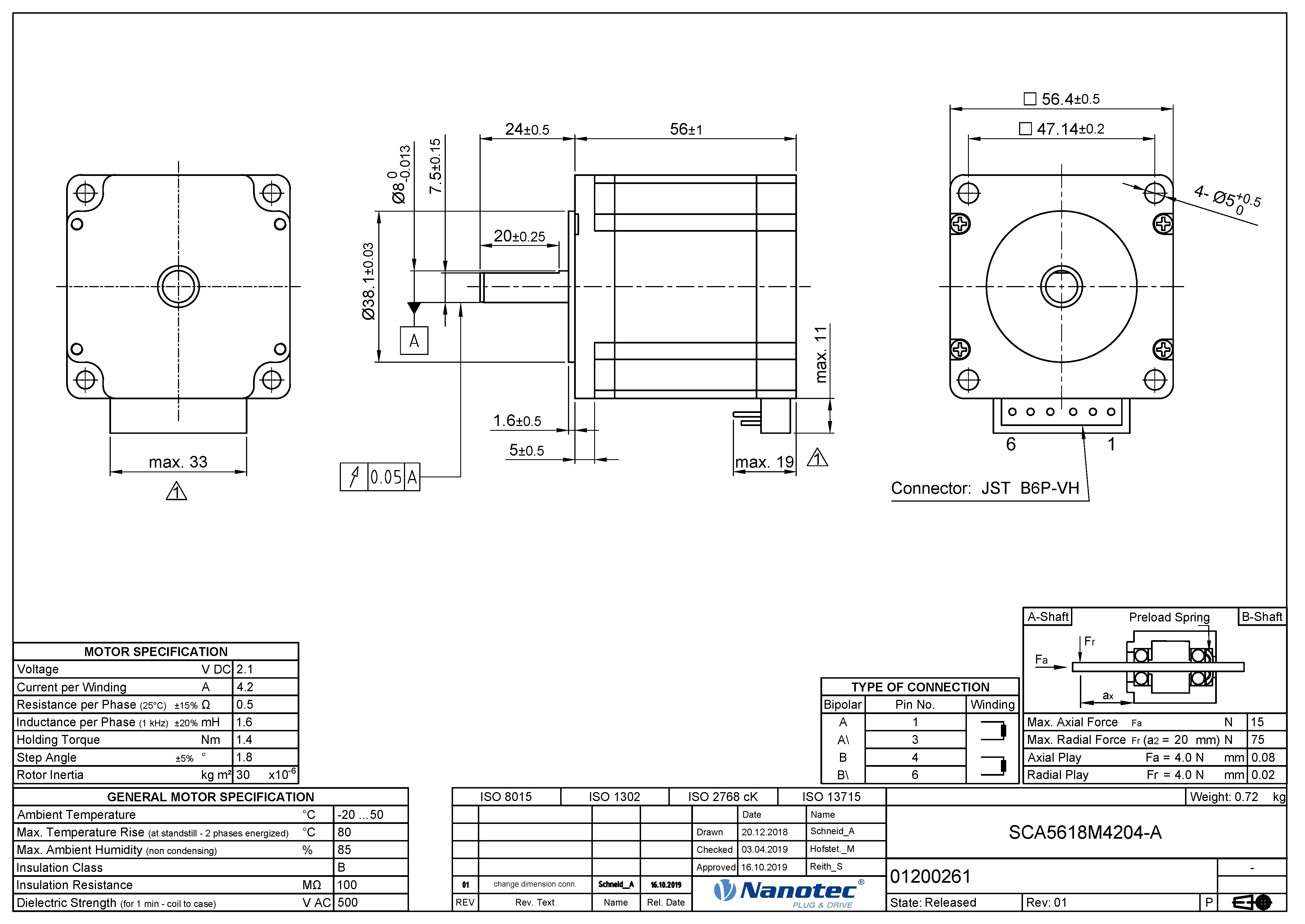

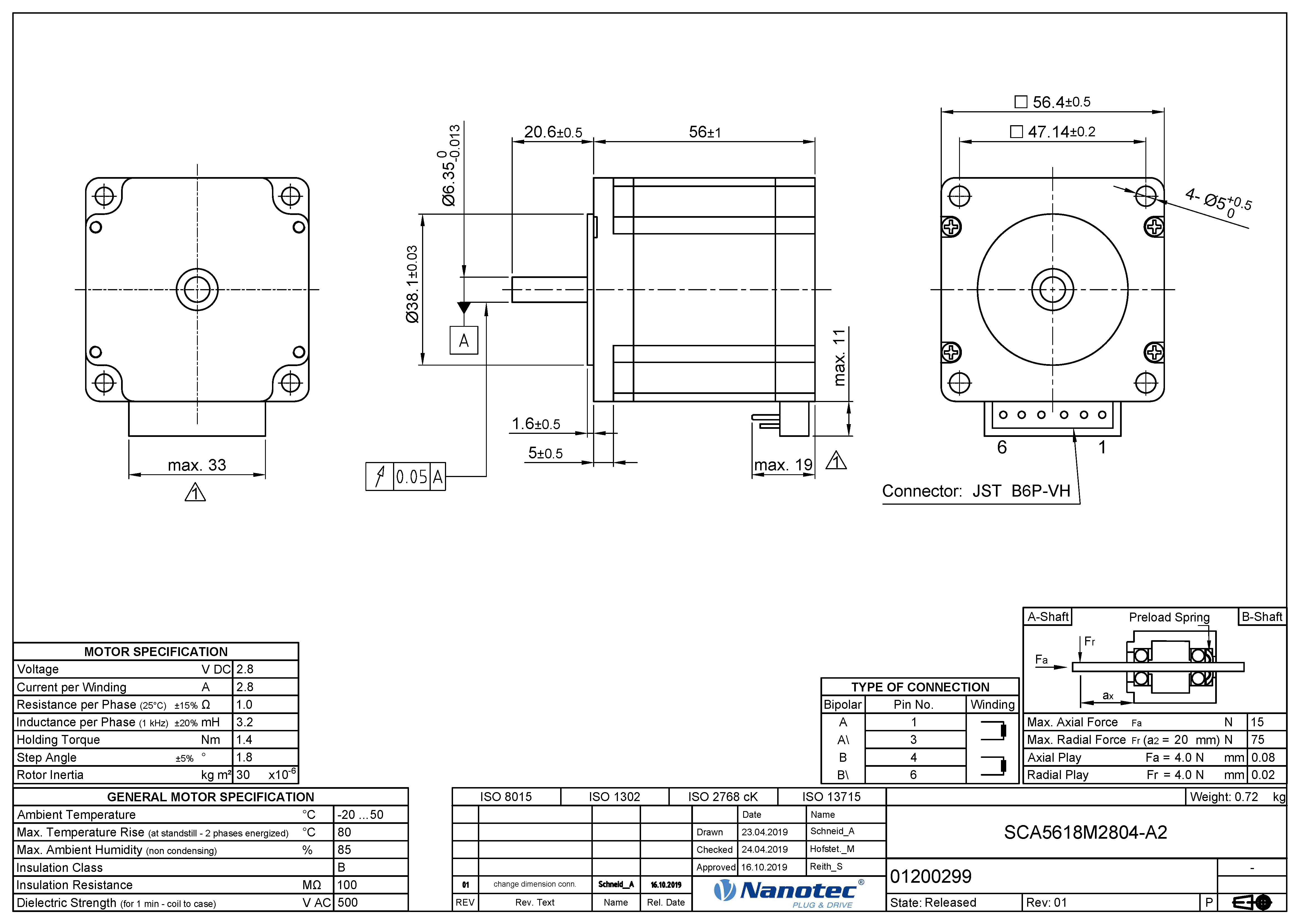

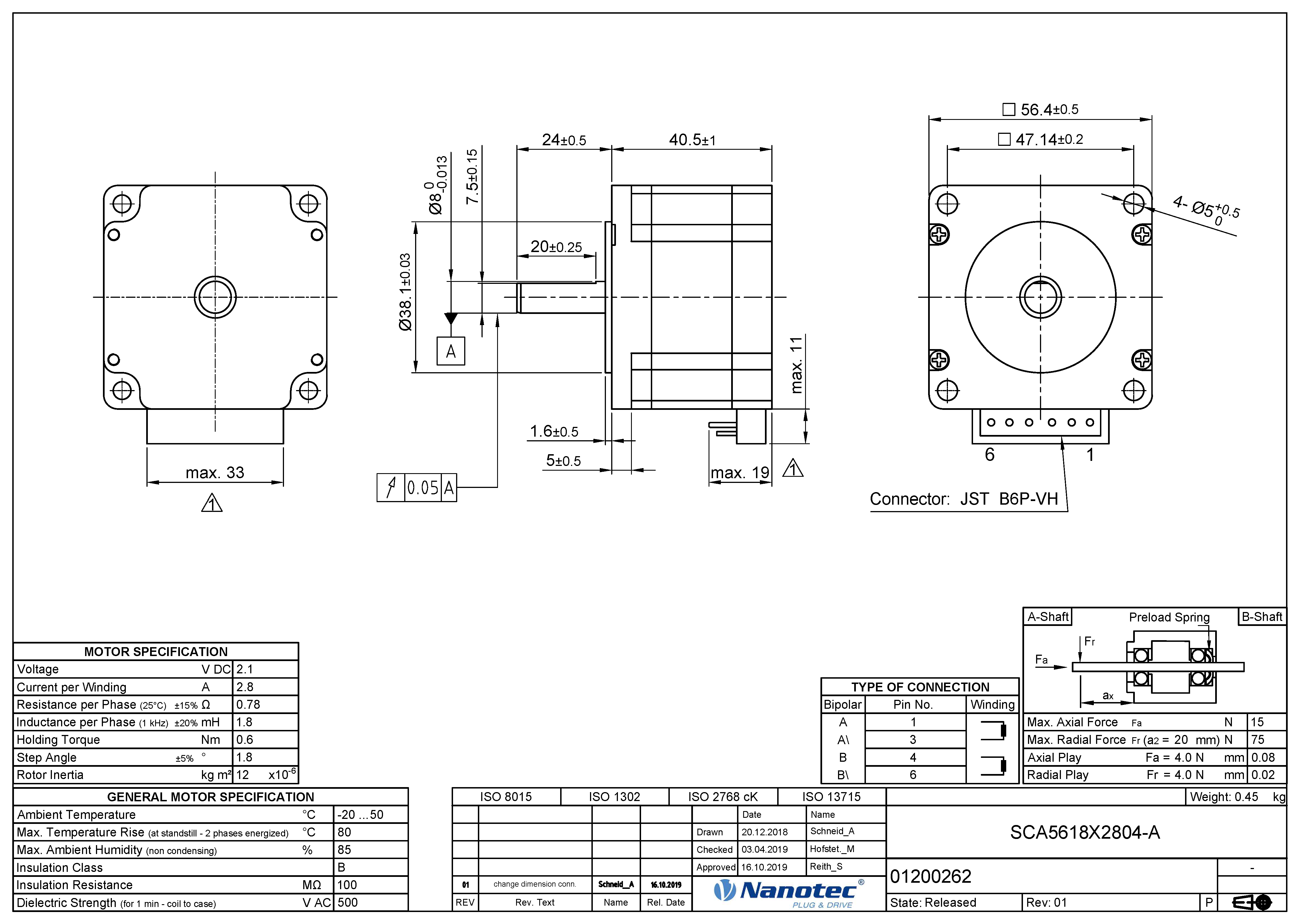

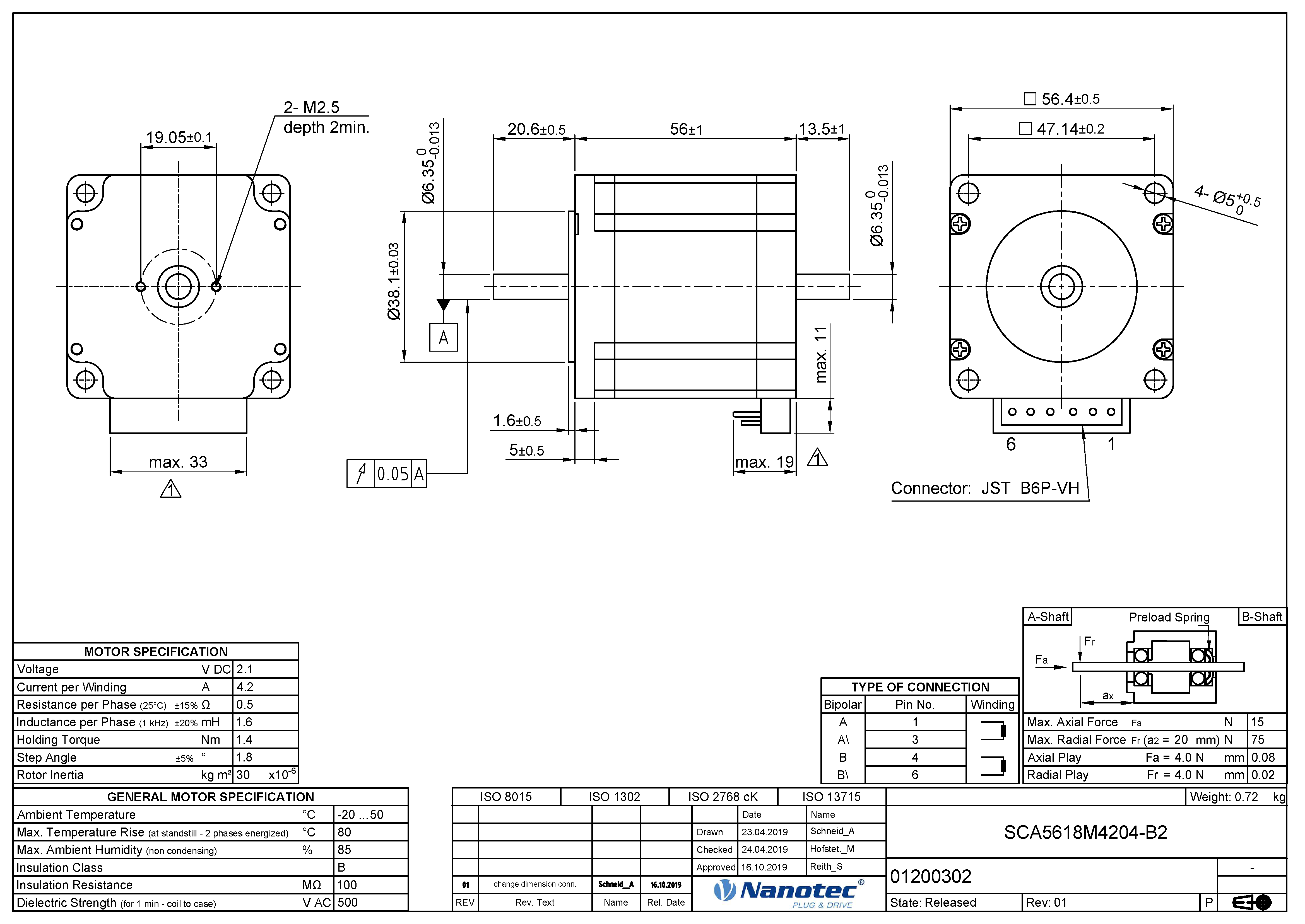

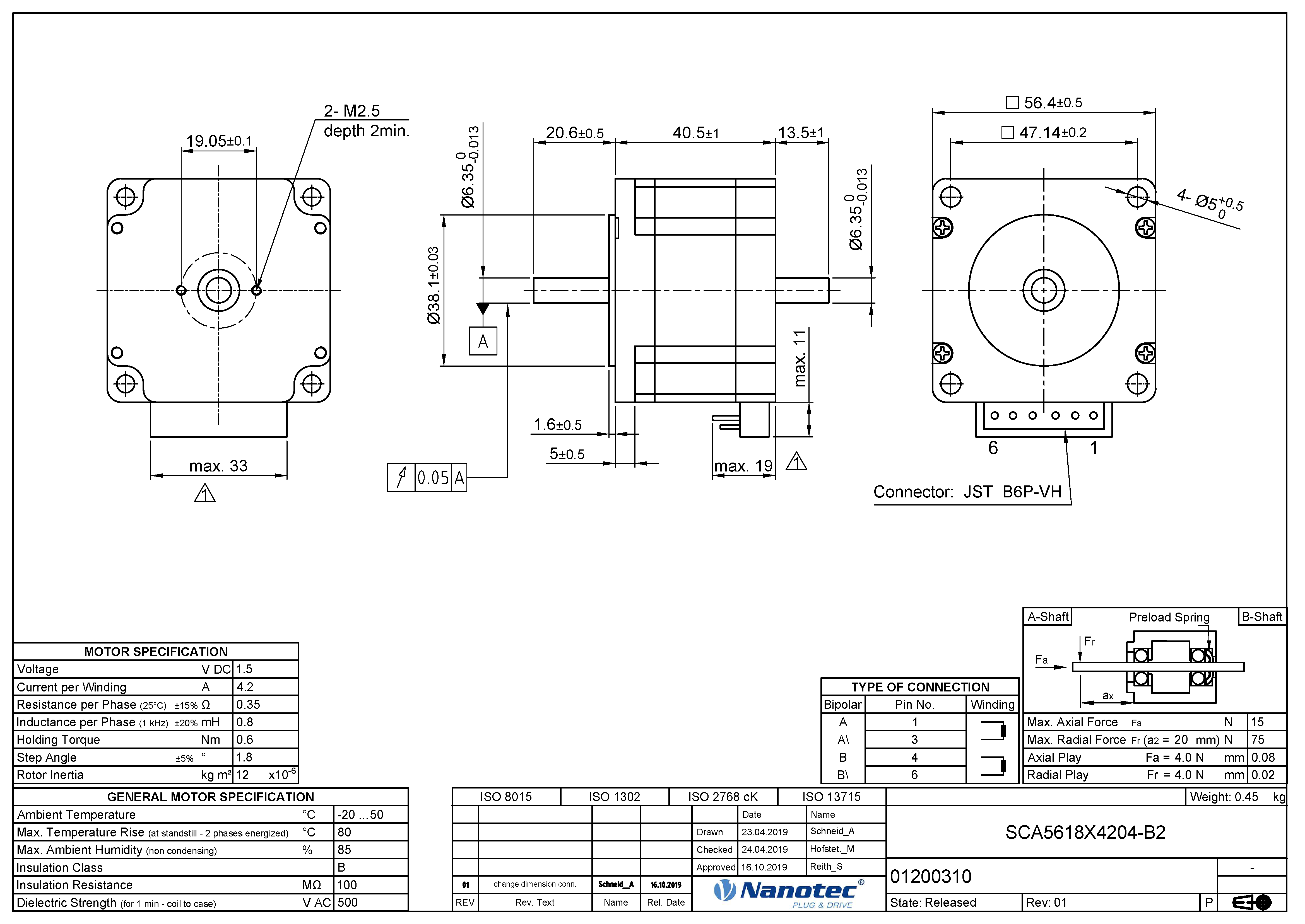

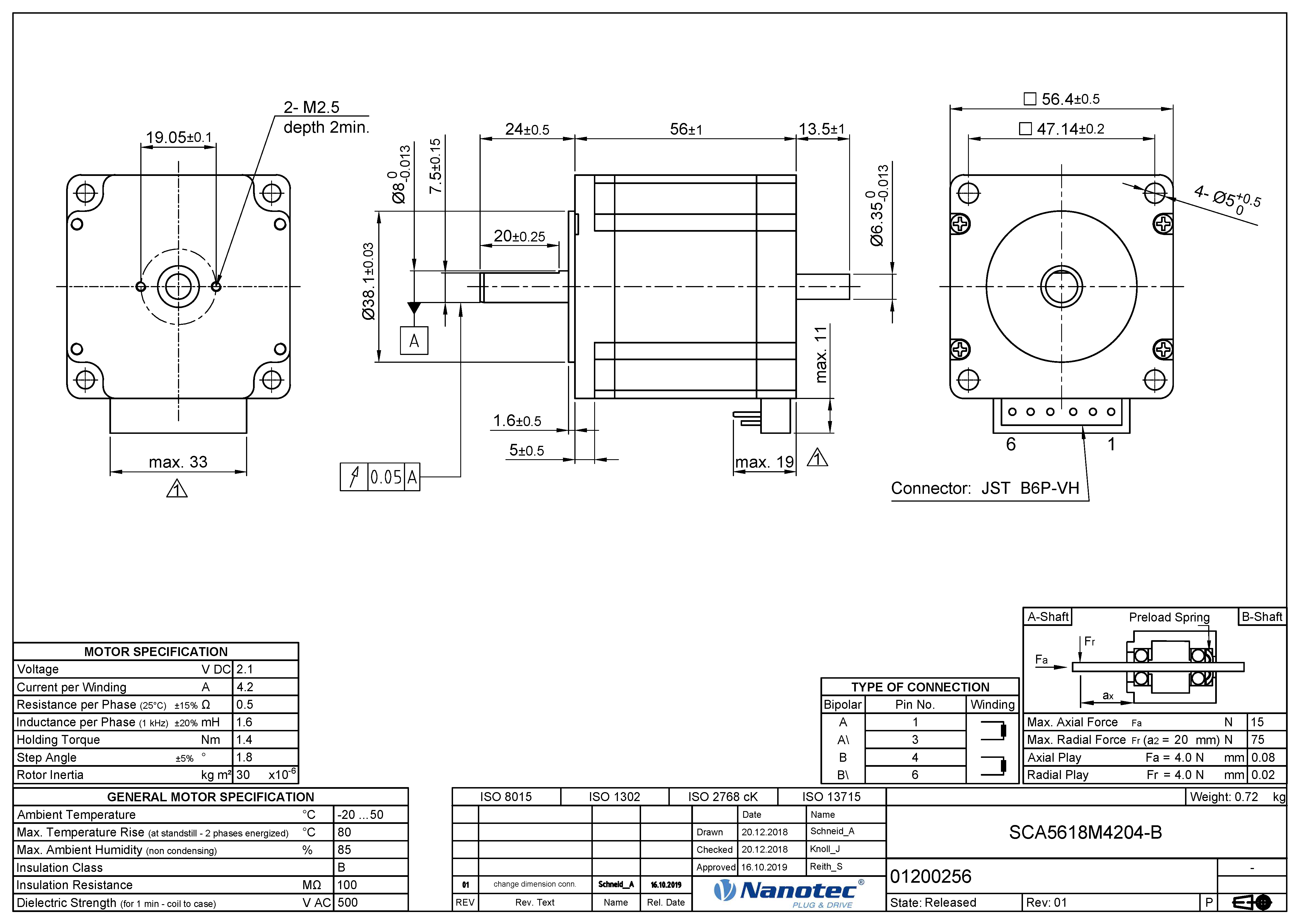

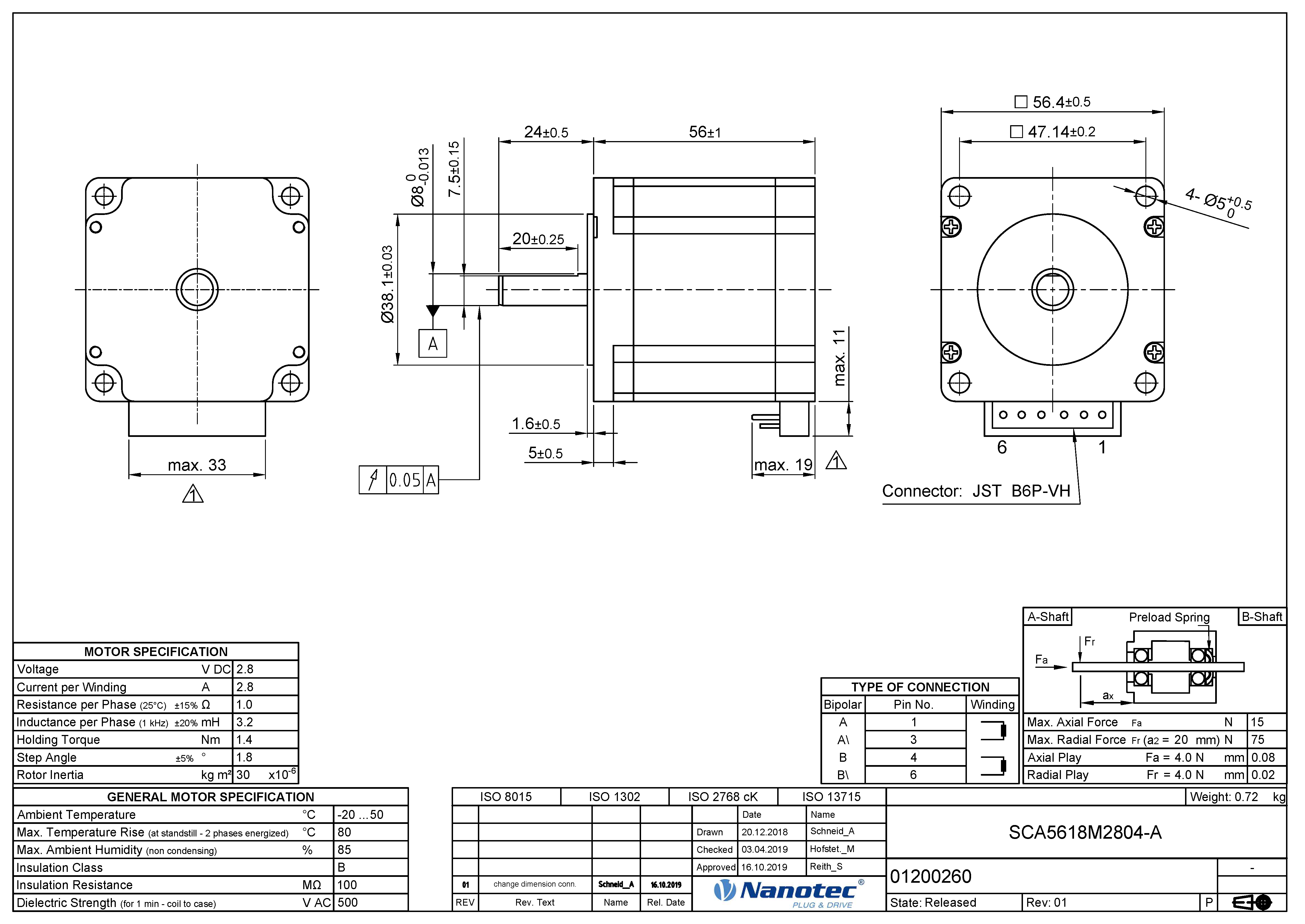

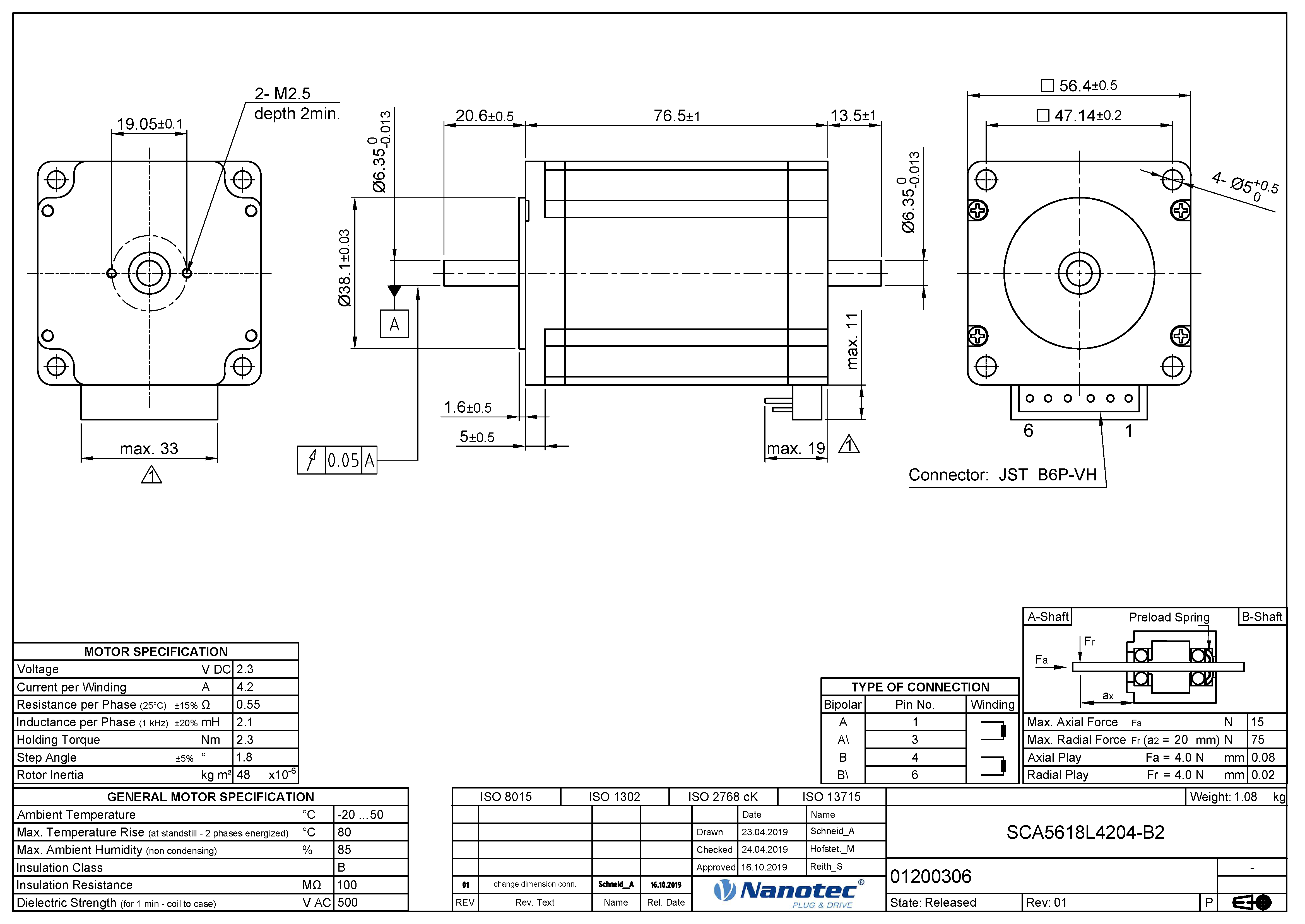

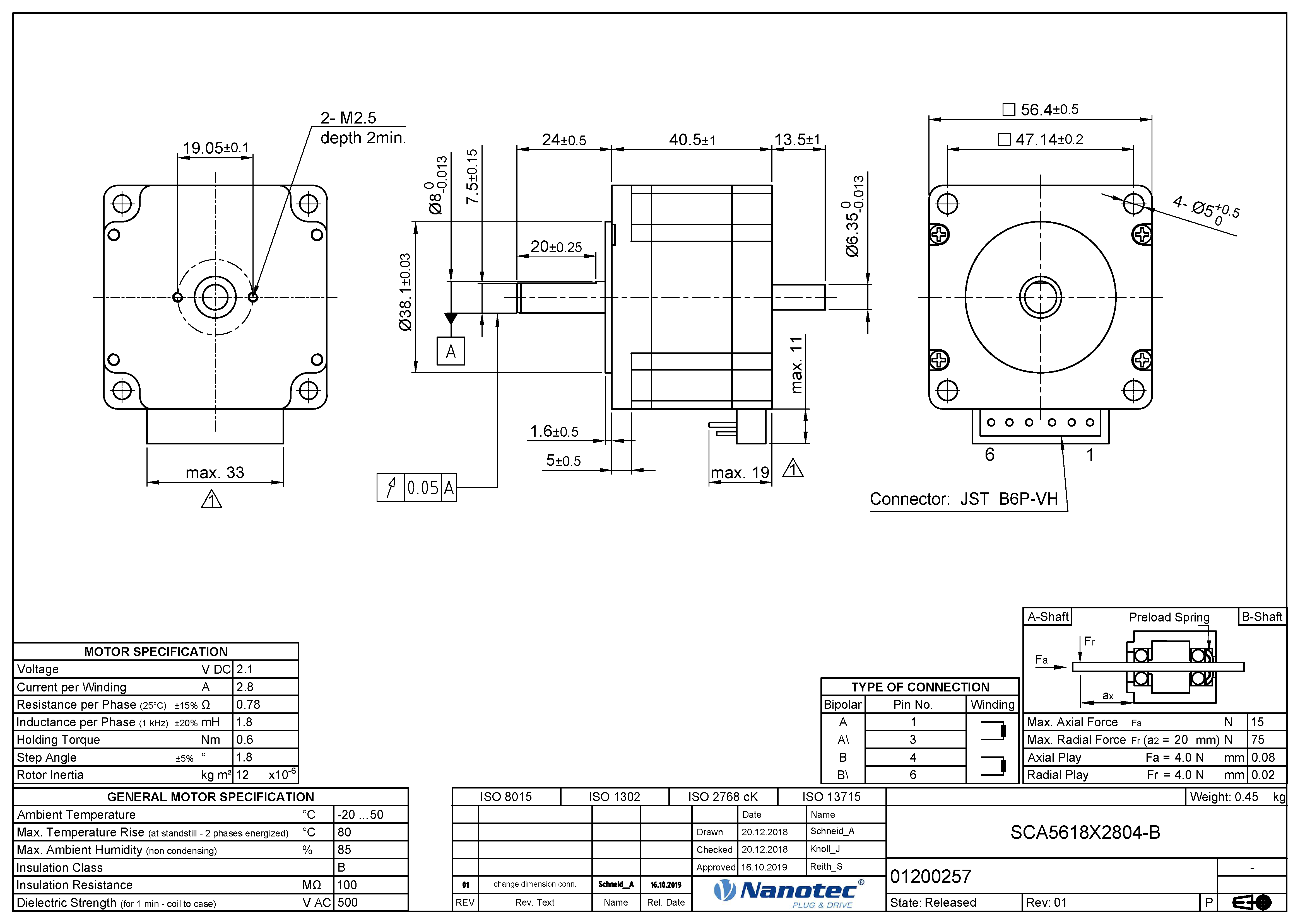

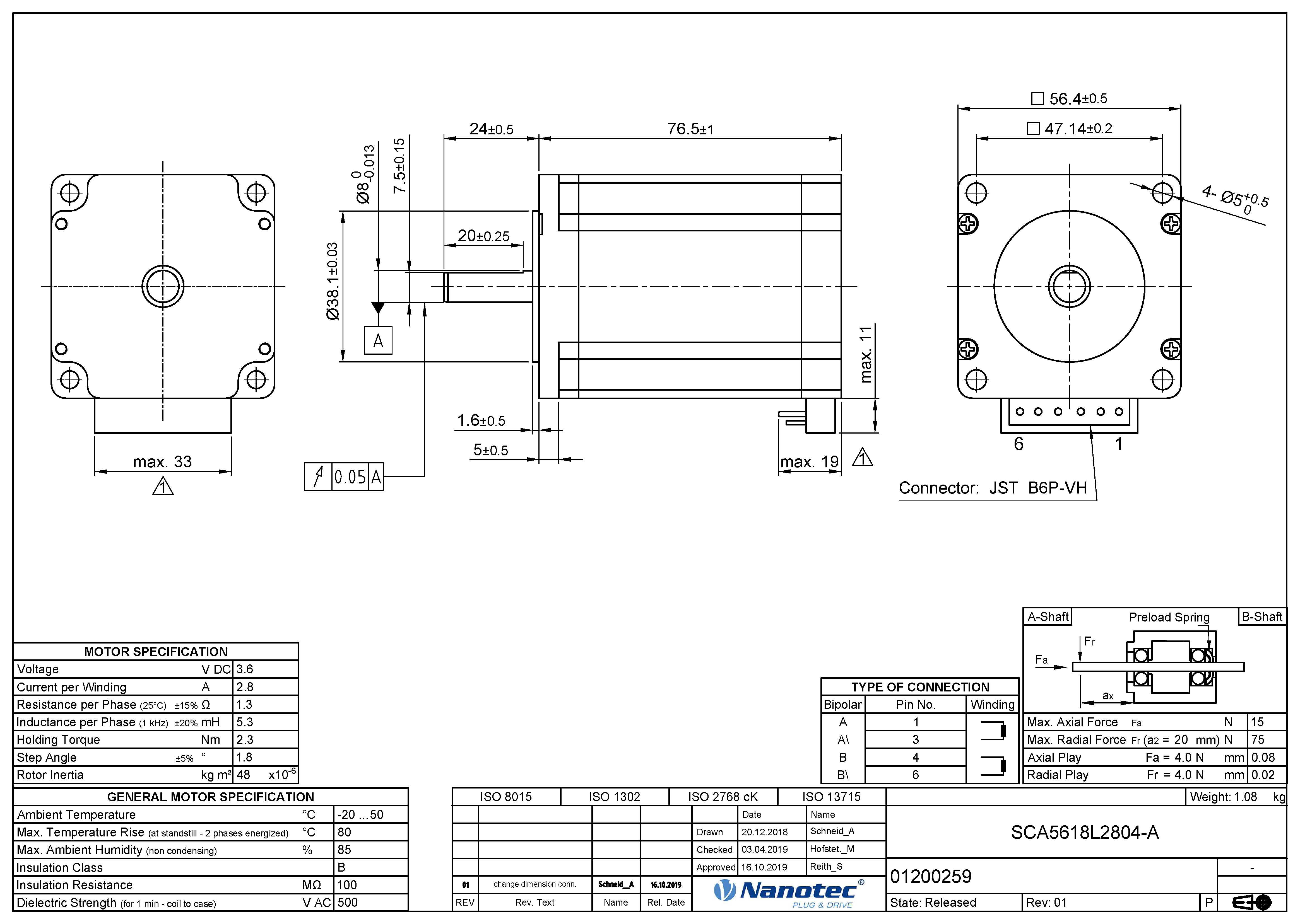

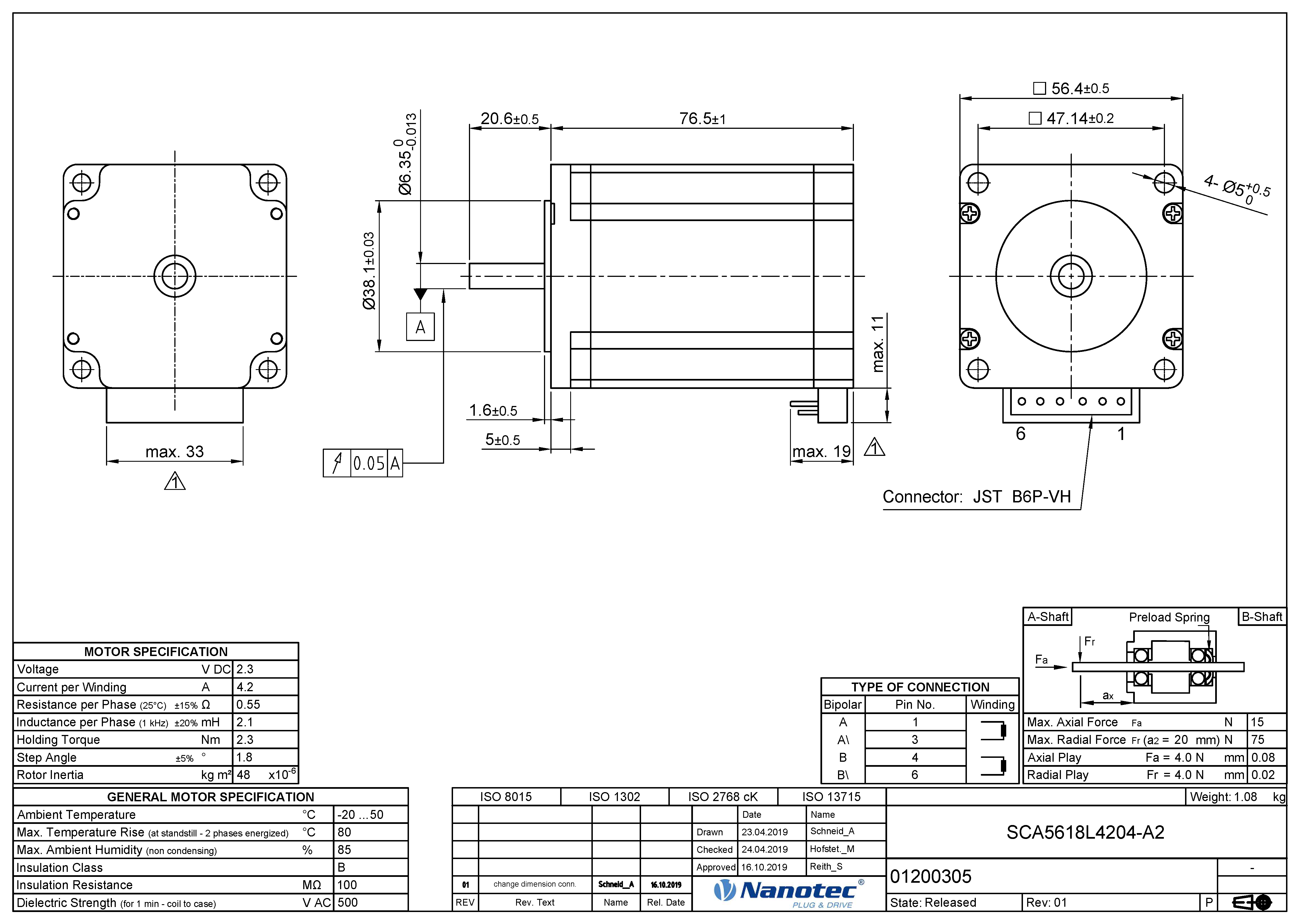

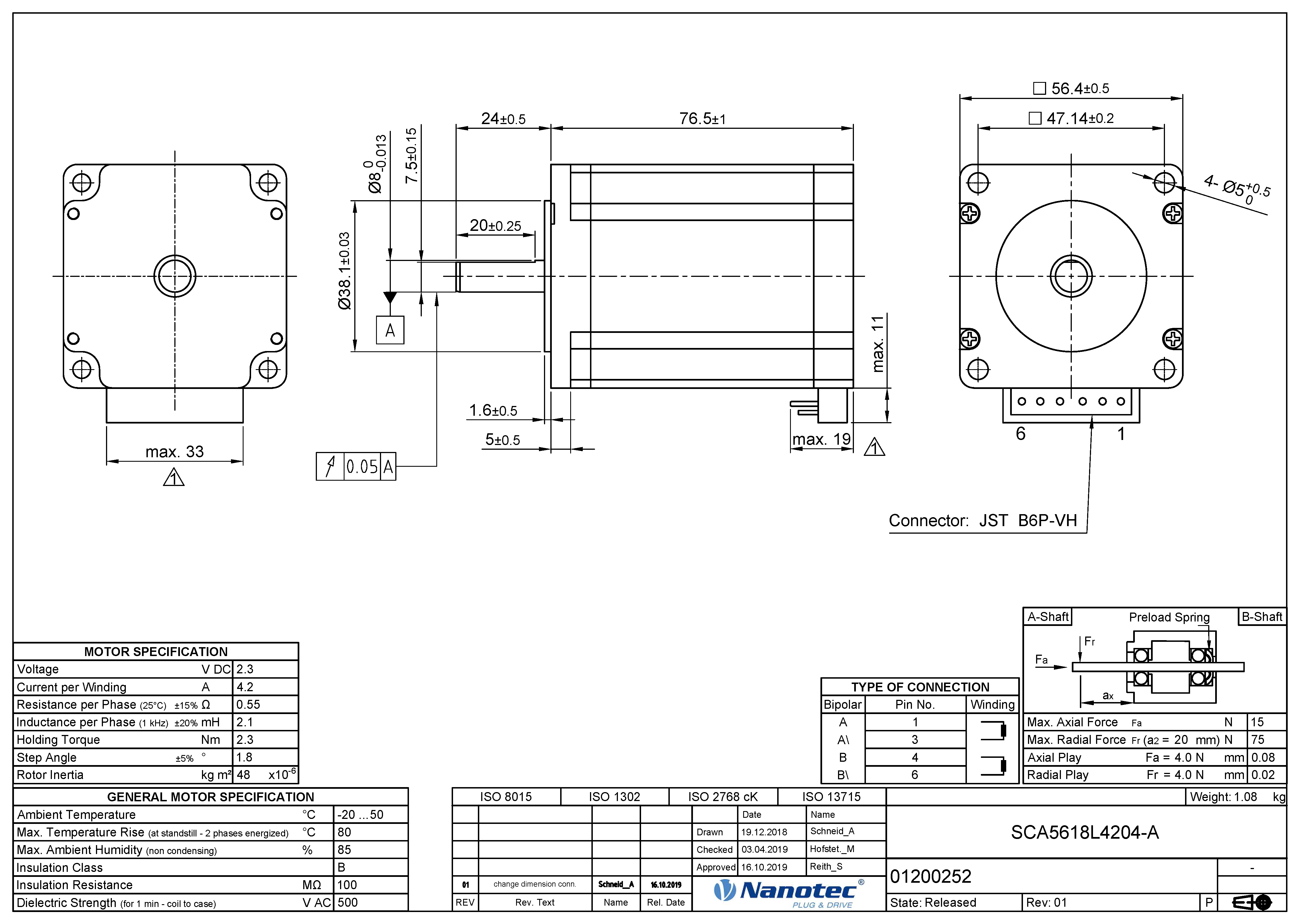

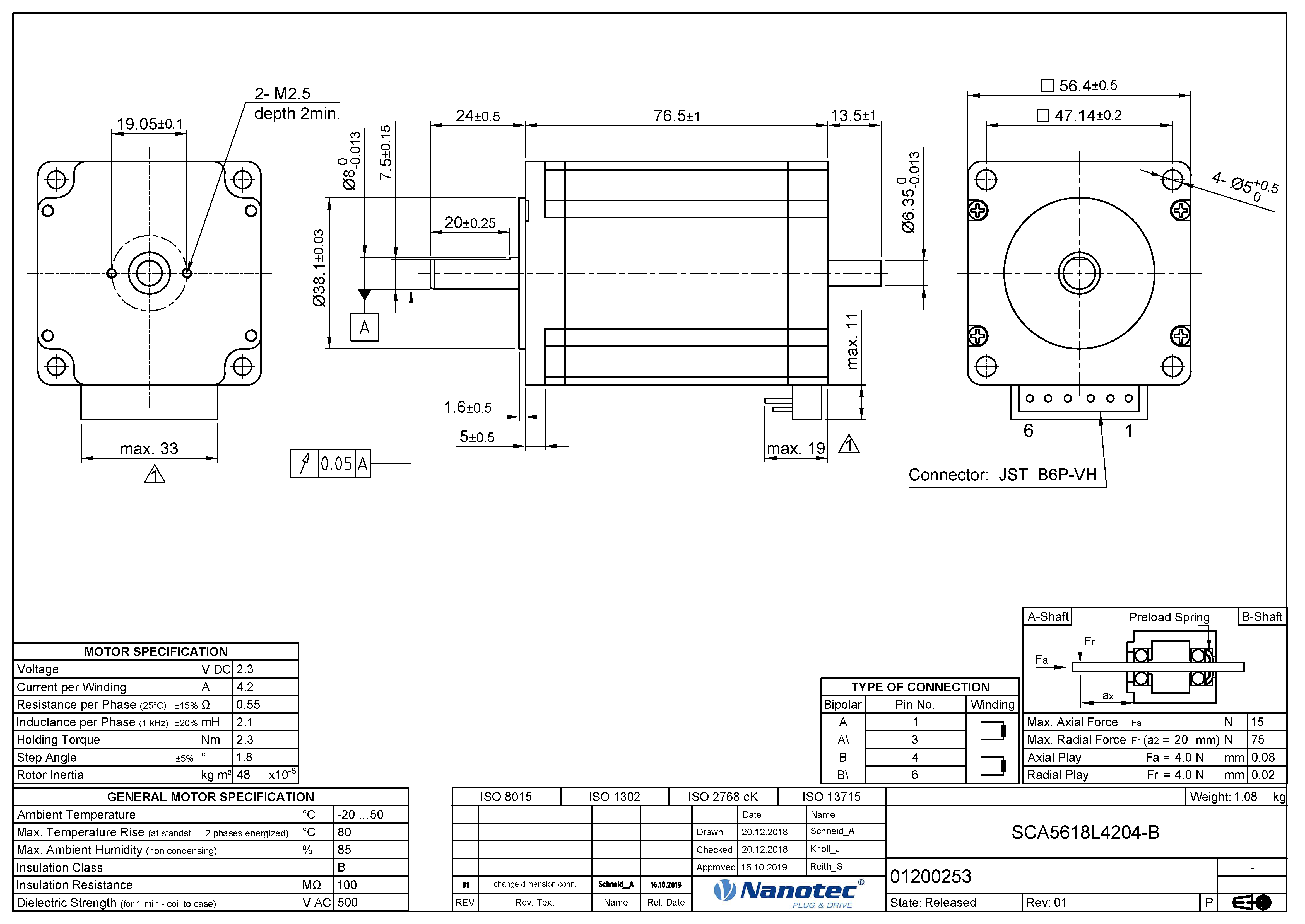

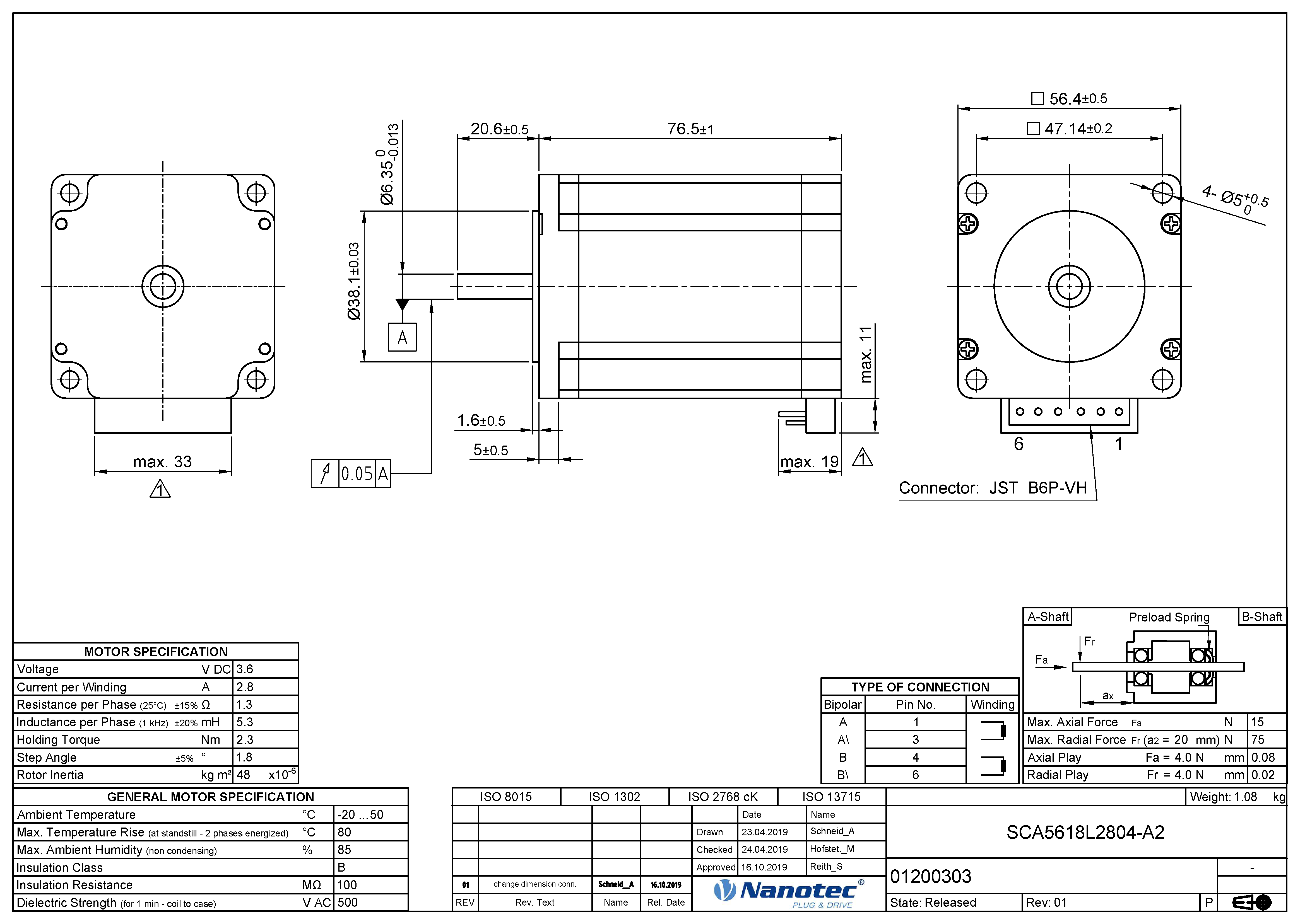

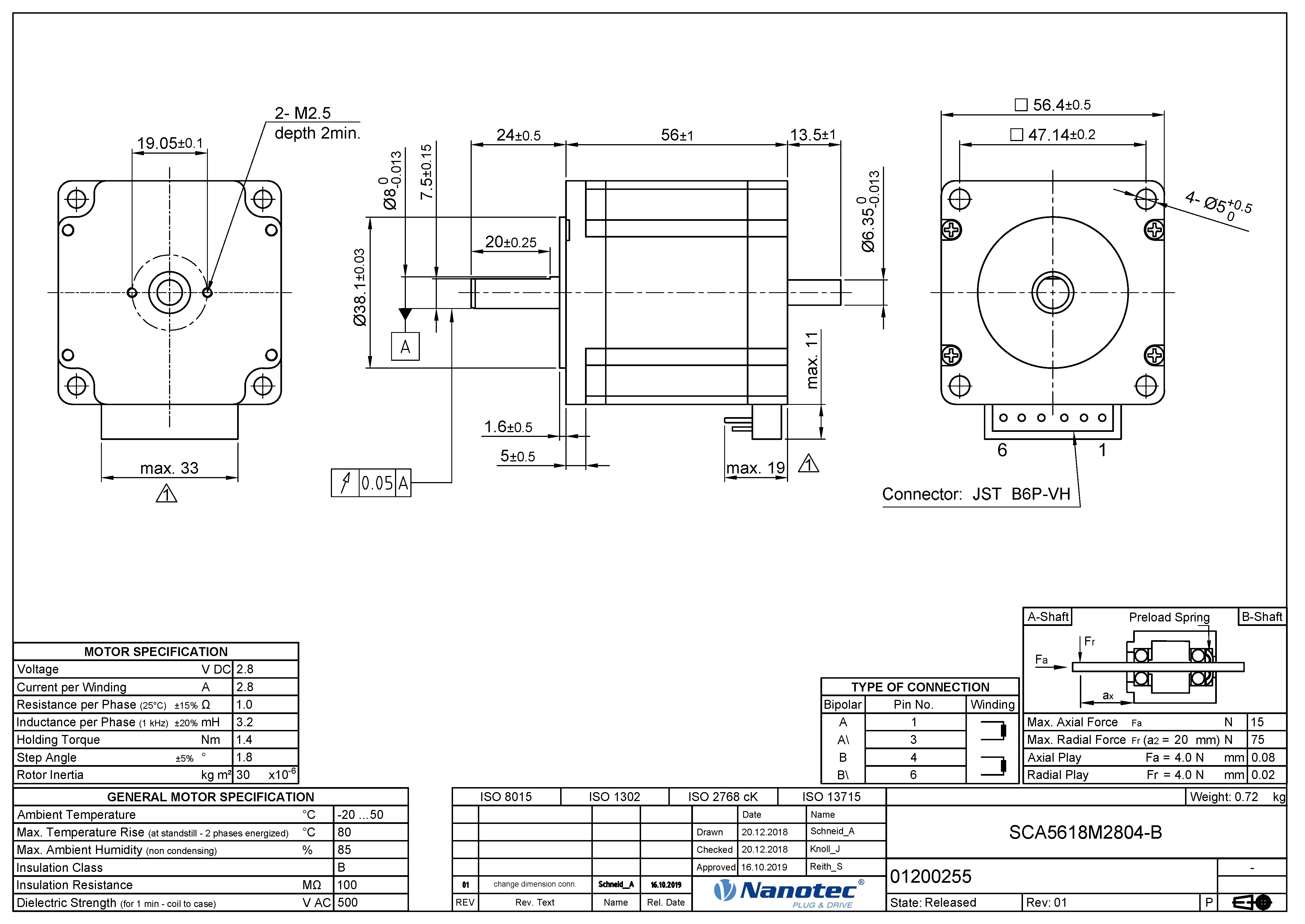

Specifications and Drawings

HYBRID STEPPER MOTOR – NEMA 23

Stepper motor with 15–30 % more torque than its predecessor ST5918. 56 mm flange, 1.8° step angle and 50–230 Ncm holding torque. Length: 40.5–76.5 mm.

High-torque stepper motor with integrated connector in size NEMA 23 (56 mm). The SCA5618 is available in three lengths and with two different windings.

The A shaft comes in two versions: with D-Cut and 24mm length (A) and without D-Cut with 20.6mm length (A2).

Holding torque up to 2.3 Nm
1.8° step angle
Integrated connector

Size2.2 in
NEMA23
Holding Torque84.97 oz-in - 325.71 oz-in
Current per Winding2.8 A - 4.2 A
Length "A"1.59 in - 3.01 in

SCA5618X4204-A, SCA5618X4204-B, SCA5618X4204-A2, SCA5618X4204-B2, SCA5618M2804-A, SCA5618M2804-B, SCA5618M2804- A2, SCA5618M2804-B2, SCA5618M4204-A, SCA5618M4204-B, SCA5618M4204-A2, SCA5618M4204-B2, SCA5618L2804-A, SCA5618L2804-B, SCA5618L2804-A2, SCA5618L2804-B2, SCA5618L4204-A, SCA5618L4204-B, SCA5618L4204-A2, SCA5618L4204-B2
