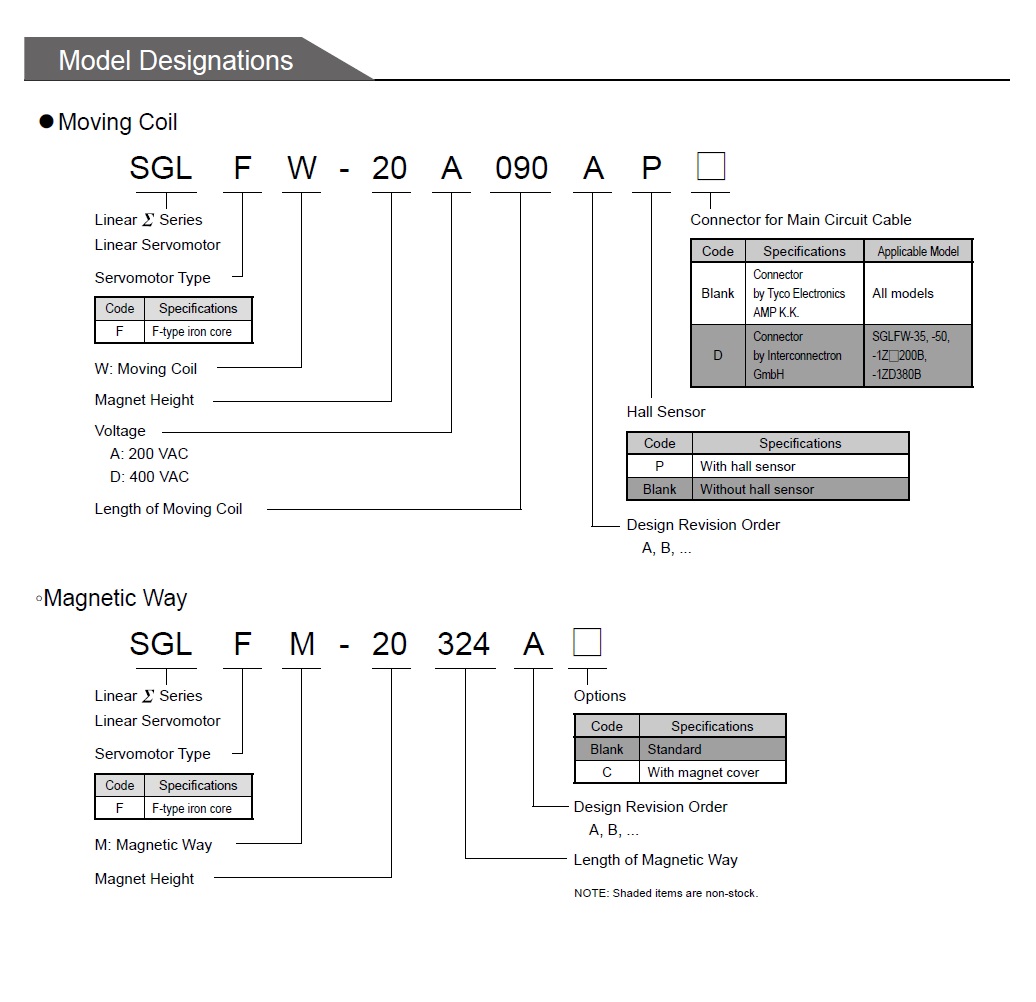

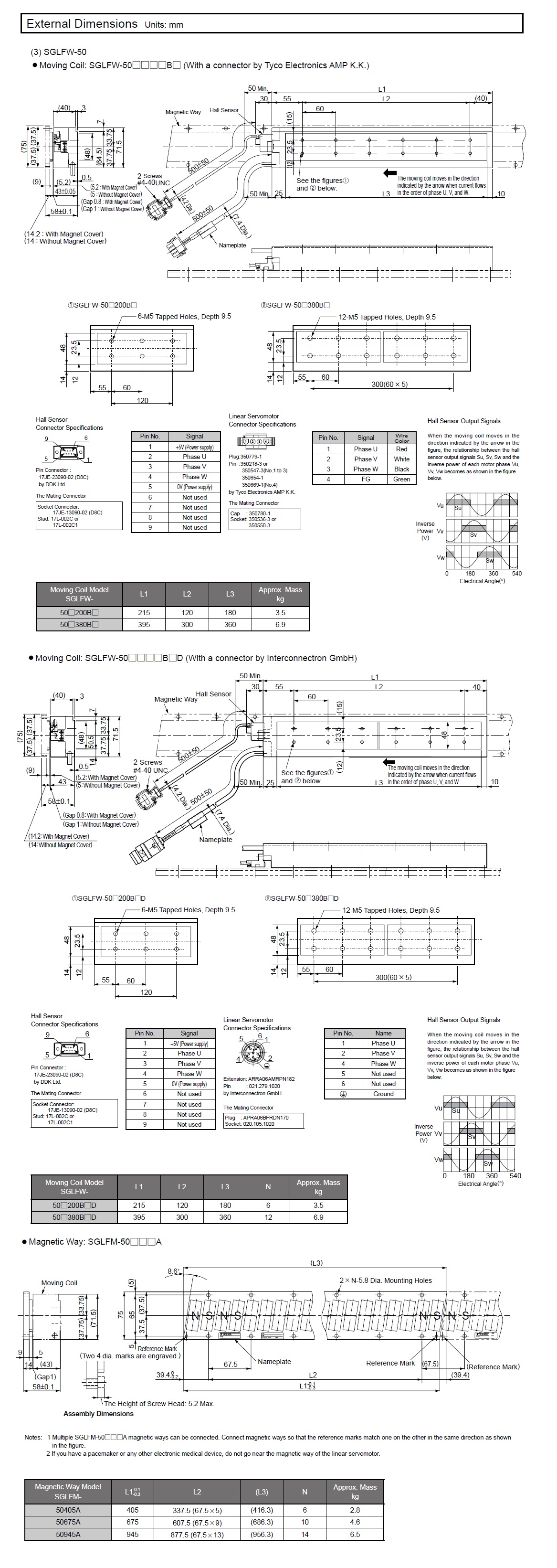

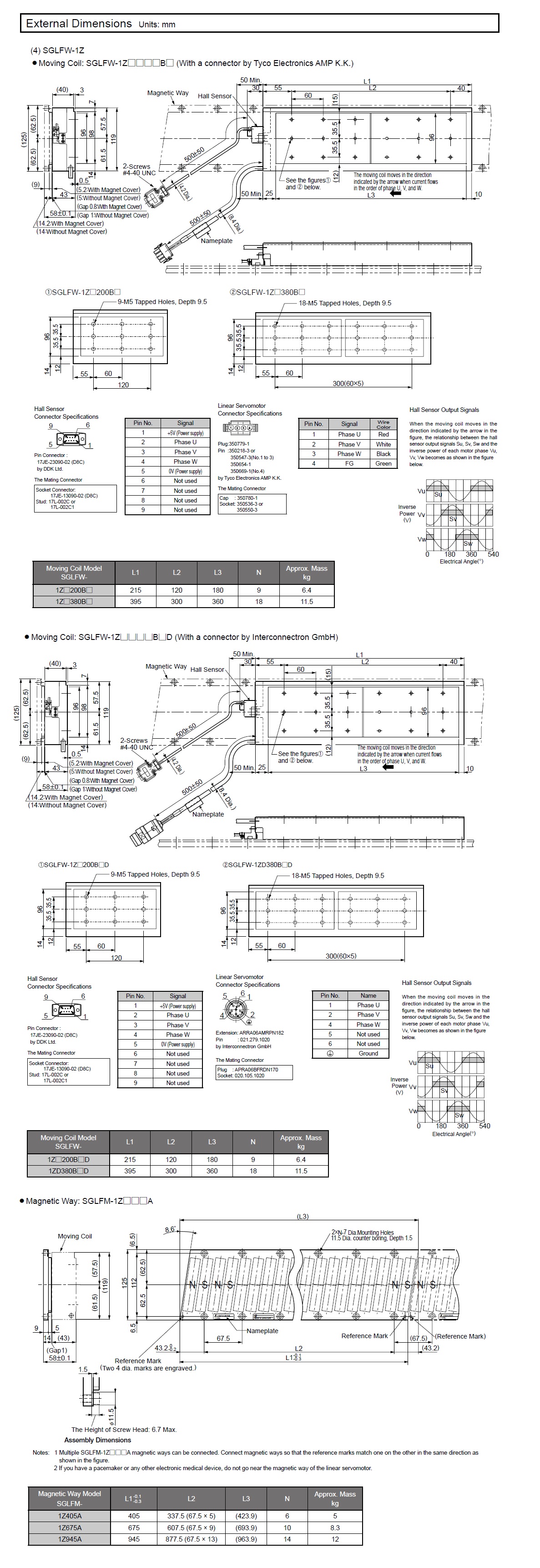

SGLFW

Iron core FW linear motors are composed of moving coils with laminated iron-core and single sided stationary magnet tracks. The moving coil of the FW linear motor is composed of laminated iron core and pre-wound coil bobbins inserted into the slots located on the laminated iron cores. The entire coil unit is permanently encapsulated in a thermally conductive resin body to give structural rigidity. The magnet track of the FW is made of a row of rare earth magnets accurately placed on one side of the nickelized steel carrier plate. Stainless steel magnet covers guard against minor accidental damage to the magnets.

Features:

• Direct-feed mechanism for high-speed and high-precision positioning.
• The magnetic attraction force between the moving and stationary members can be used effectively to increase the rigidity of the linear guidance by preloading the linear motion bearings.
• The magnetic preloading on certain types of compliant linear motion bearings can help increase the system’s frequency response, improving its deceleration and settling performances.

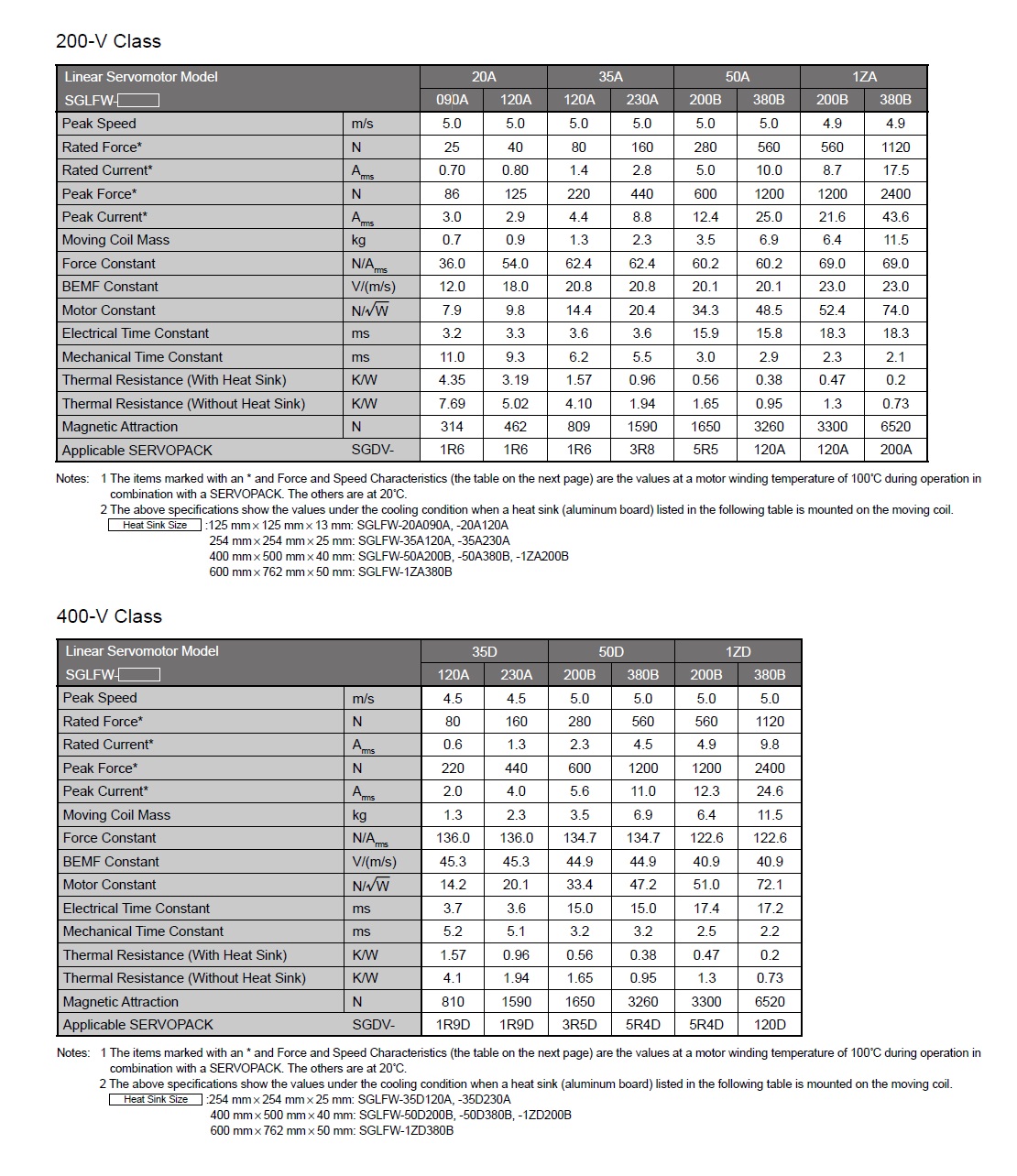

• Time Rating: Continuous
• Insulation Resistance: 500 VDC, 10 MW min.
• Ambient Temperature: 0 to 40˚C
• Excitation: Permanent magnet
• Withstand Voltage: 1500 VAC for one minute
• Enclosure: Self-cooled
• Ambient Humidity: 20% to 80% (no condensation)
• Allowable Winding Temperature: 130˚C (Thermal class B)

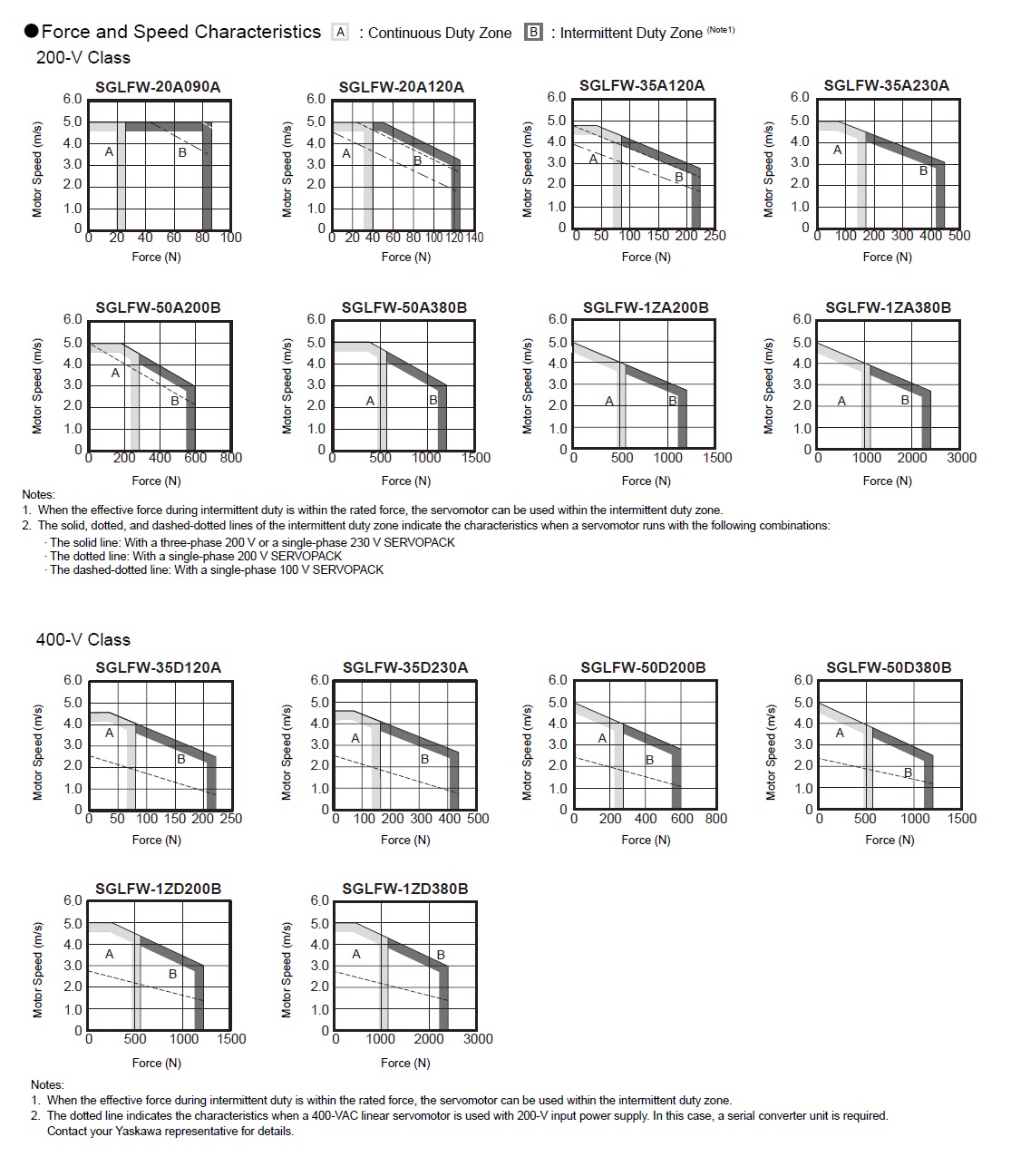

• Peak Speed: 4.5-5.0 m/s
• Moving Coil Mass: 0.7-11.5 Kg
• Electrical Time Constant: 3.2-18.3 ms
• Thermal Resistance (With Heat Sink): 0.2-4.35 k/w
• Thermal Resistance (Without Heat Sink): 0.73-7.69 k/w
