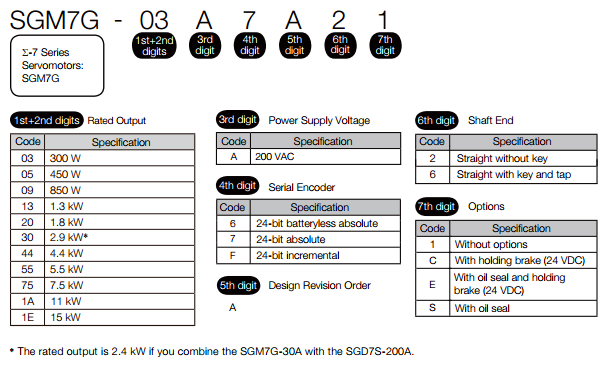

Ordering Information

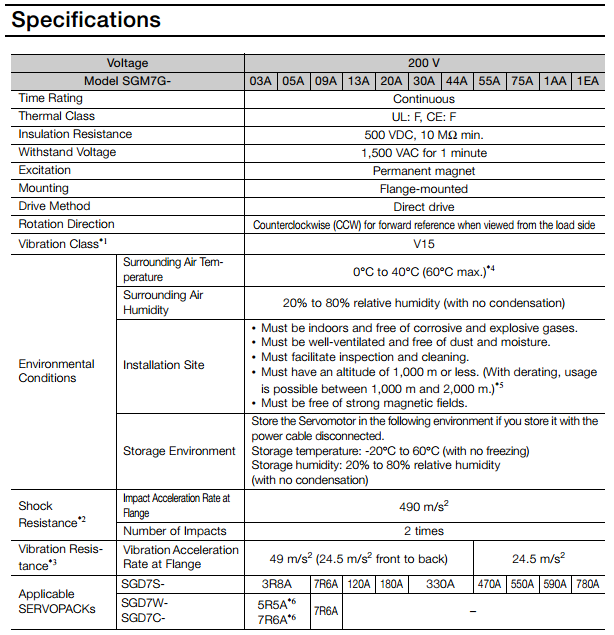

Specifications and Drawings

Yaskawa: Rotary Servo Motors (SGM7G Series)

The Sigma-7 line of AC brushless rotary servo motors covers a full range of load requirement in both small and medium capacities. The advanced technology built into Sigma-7 sets a new industry standard for responsiveness, precision and long-term reliability. Each Sigma-7 motor is engineered to maximize compatibility with existing Sigma-5 motors in control electronics, electrical rating and mounting conventions. Sigma-7 motors can be equipped with matching gearheads to suit a wider range of speed or mechanical linkage requirements.

300W - 15kW, Medium Inertia

The increased power demands of large automation components utilize the robust performance of SGM7G. These servo motors are built with a compact footprint, yet provide a higher torque while maintaining an inertia rating well within the medium range. Rated torques in the SGM7G family range up to 95.2 N-m (840 in-lb). SGM7G delivers a rated speed of 1500 rpm, delivering a rapid and consistent throughput over a wide power range. 24-bit encoder resolution maintains industry-leading positional accuracy across the power spectrum.

Features:

24-bit encoder resolution
More compact in size than most motors in its class.
Completely compatible with Sigma-5 servos.
Neodymium iron boron permanent magnets with a high flux density reduce rotor size.
Advanced magnetic circuitry and optimum winding geometry deliver very low cogging torque.
Safety rated at SIL 3 (IEC 61508)
IP67 rated for resistance to dust, water washdown
Peak acceleration torque up to 300% of rated torque
Peak torque can be maintained for up to three seconds
Rated speed of 3,000 rpm, max speed of 6,000 rpm
Functions in temperatures above 60°C, altitudes above 2000 ft.
Runs 20% cooler than previous generation products
Holding Brake and Shaft Seal options available
