SGMJV Sigma-5

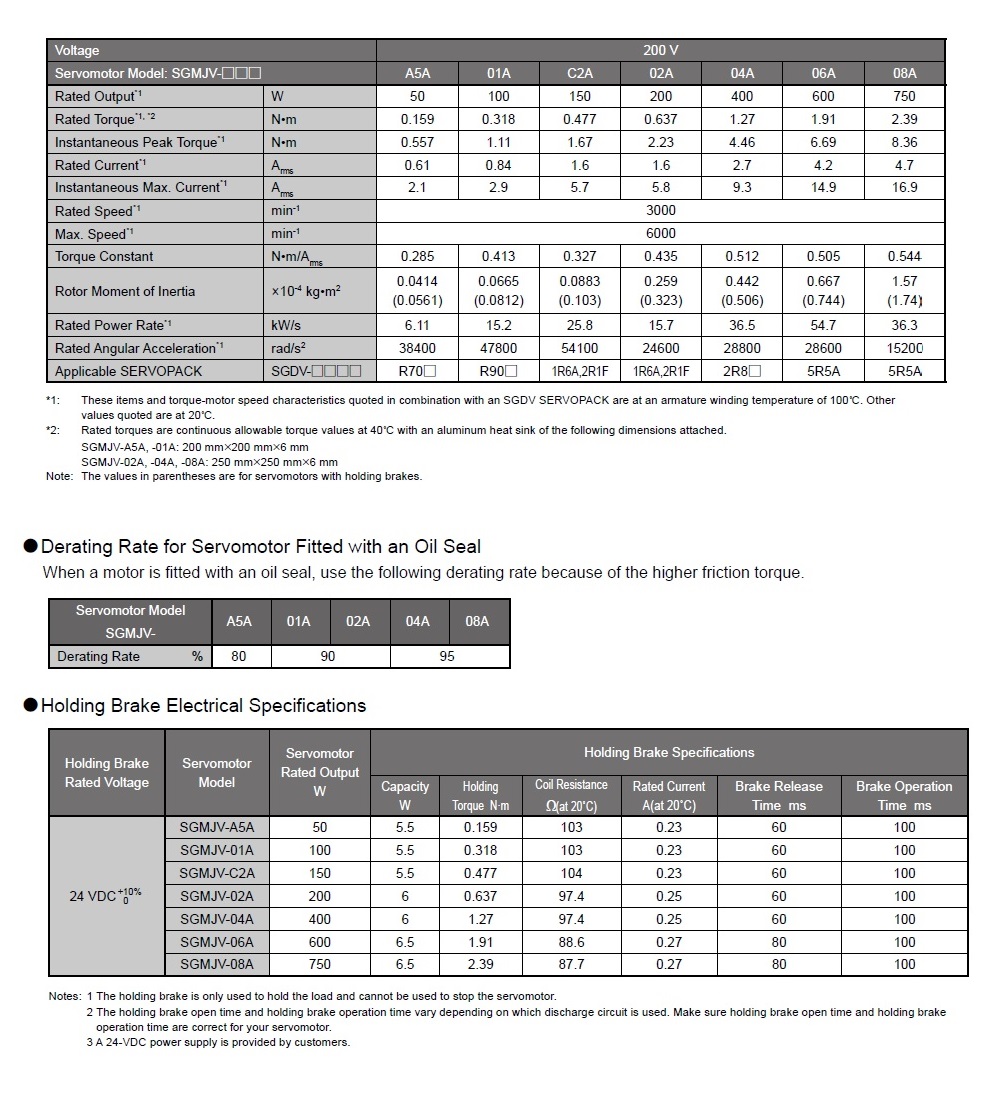

Rated Output: 50W, 100W, 200W, 400W, 750W

The SGMJV small capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

• Medium inertia

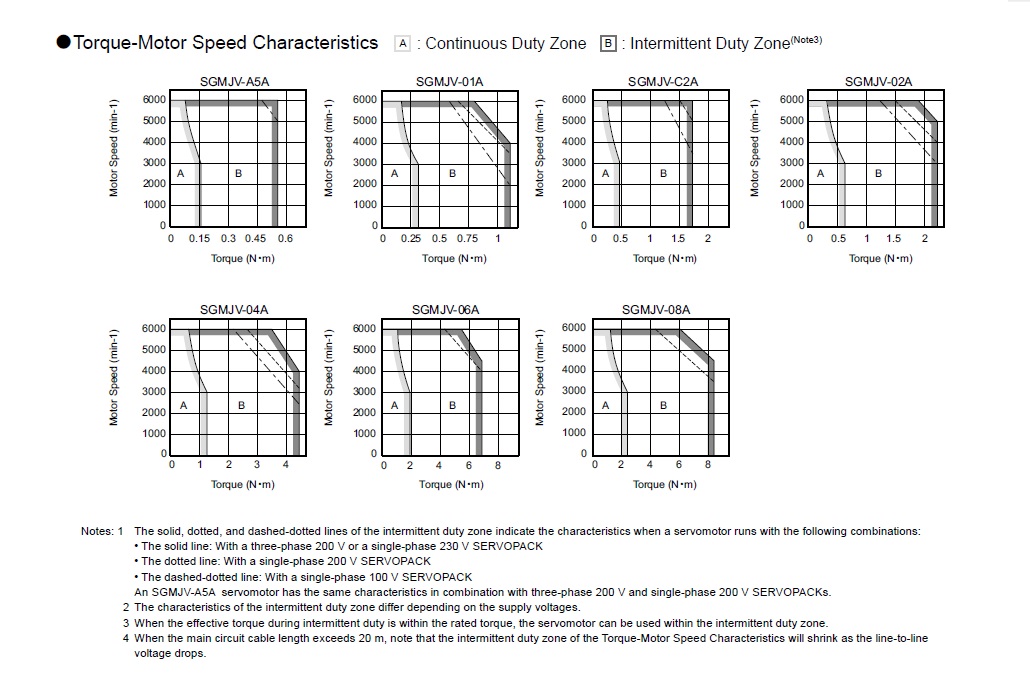

• Instantaneous peak torque (350% of rated torque)
• Mounted high resolution serial encoder: 13 or 20-bit
• Maximum speed: 6,000 rpm

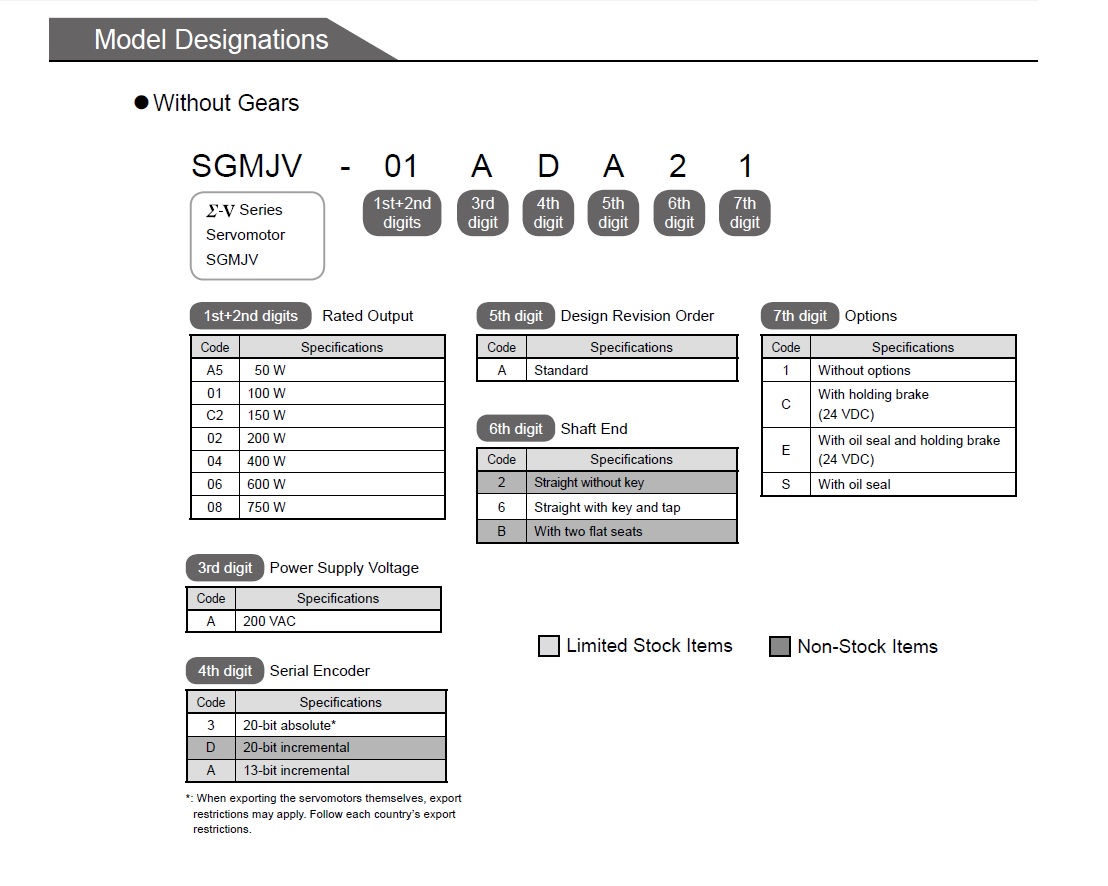

• Wide selection: 50 to 750W capacity, holding brake and gear options
• Time Rating: Continuous
• Vibration Class: V15
• Insulation Resistance: 500 VDC, 10 MW min.
• Ambient Temperature: 0 to 40˚C
• Excitation: Permanent magnet

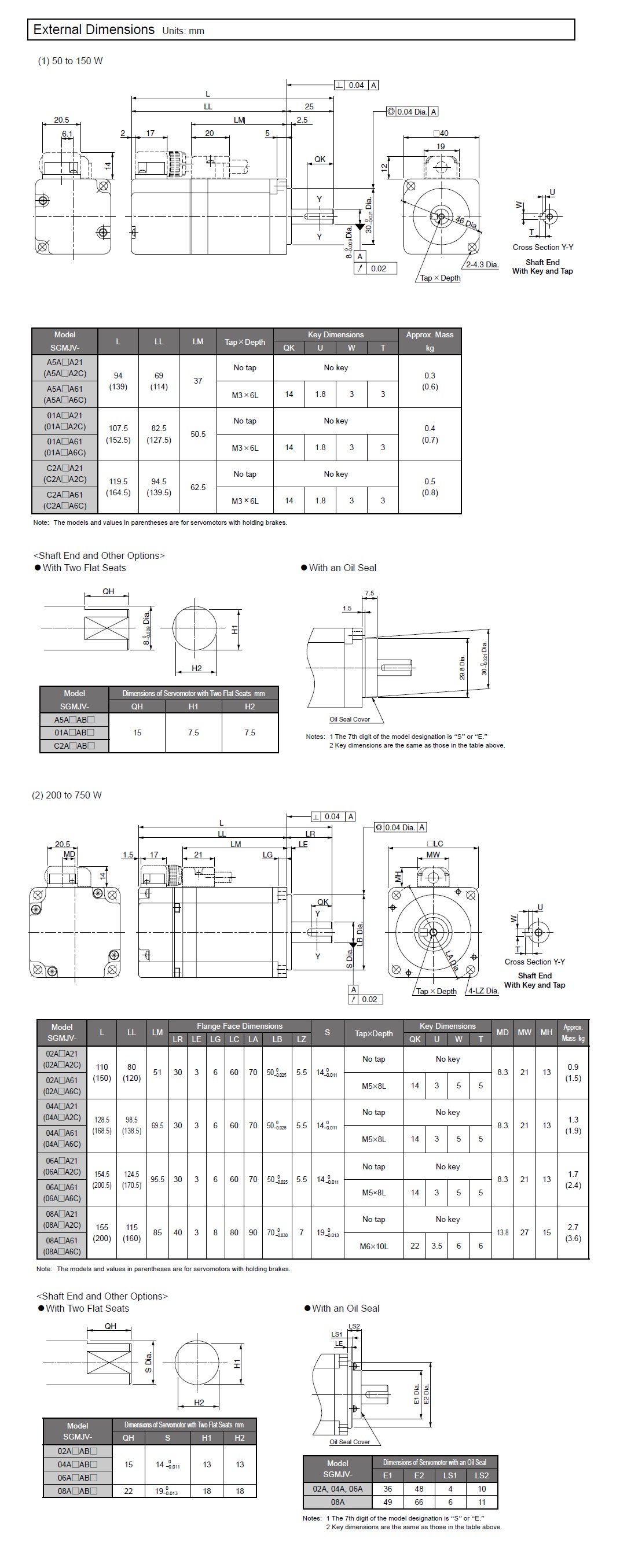

• Mounting: Flange-mounted
• Thermal Class: B
• Withstand Voltage: 1500 VAC for one minute
• Enclosure for IP65 (except for shaft opening): Totally enclosed, self-cooled
• Ambient Humidity: 20% to 80% (no condensation)
• Drive Method: Direct drive
