SGMMV Sigma-5 Mini

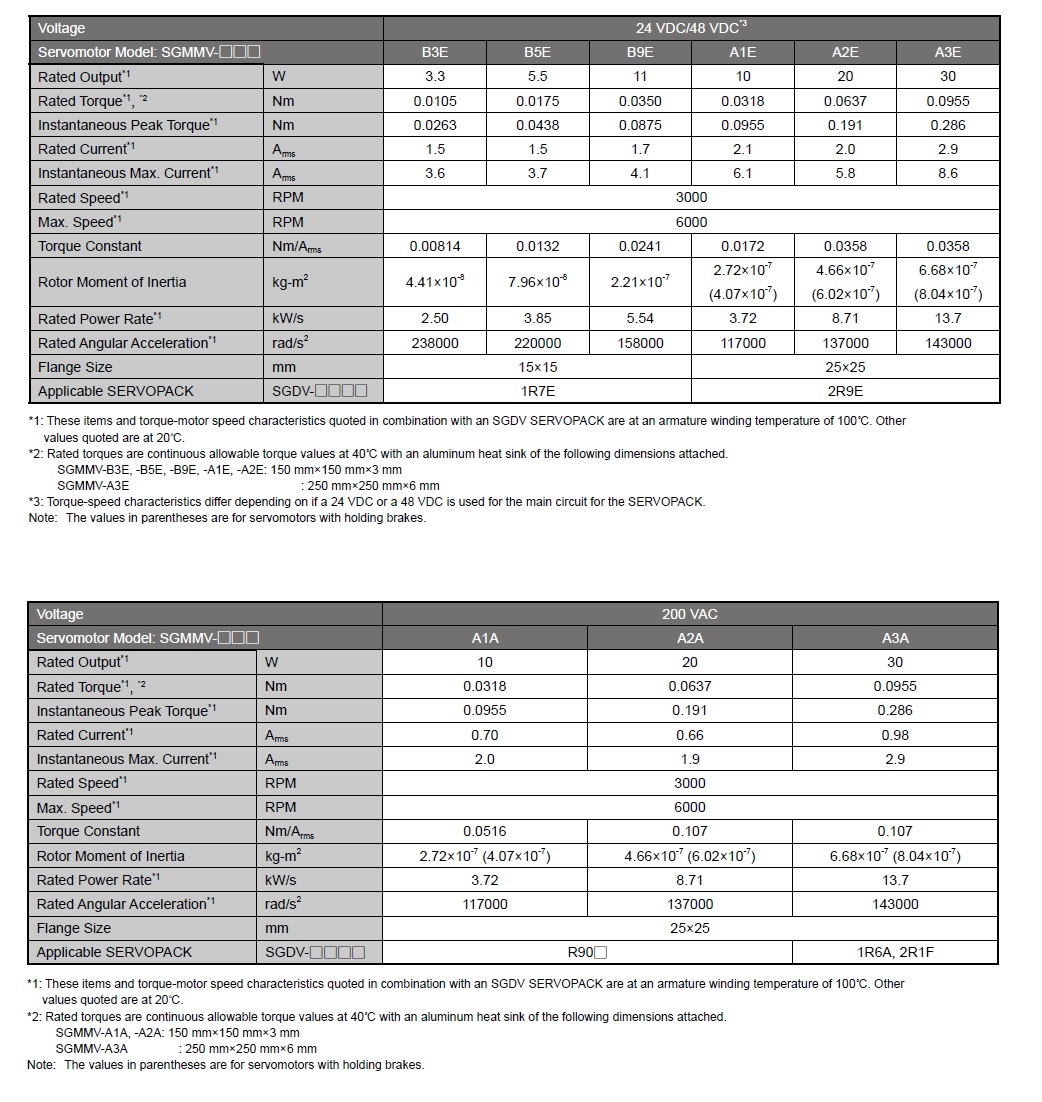

Rated Output: 3.3W, 5.5W, 10W, 11W, 20W, 30W

The SGMMV ultra-small capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

• Low inertia
• High resolution absolute serial encoder: 17-bit
• Maximum Speed: 6000 rpm
• Wide Selection: 3W to 30W
• Holding Brake option available
• AC or DC Input Power
• Time Rating: Continuous
• Vibration Class: V15
• Insulation Resistance: 500 VDC, 10 MΩ min.
• Ambient Temperature: 0 to 40˚C
• Excitation: Permanent magnet

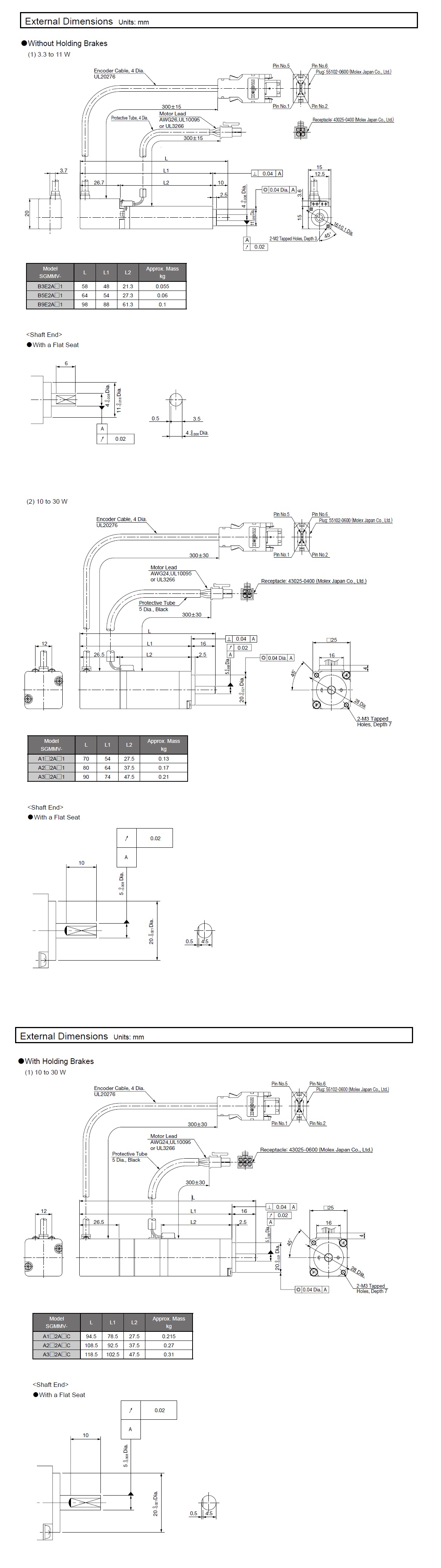

• Mounting: Flange-mounted
• Ambient Humidity: 20% to 80% (no condensation)
• Drive Method: Direct drive
• Rotation Direction: Counterclockwise (CCW) with forward run reference when viewed from the load side
• Thermal Class: 15 mm×15 mm B (UL: A); 25 mm×25 mm B
• Withstand Voltage: 600 VAC for one minute
• Enclosure for IP42 (except for shaft opening): 15 mm×15 mm; completely enclosed, self-cooled
• Enclosure for IP55 (except for shaft opening): 25 mm×25 mm; completely enclosed, self-cooled
