SGMVV Sigma-5

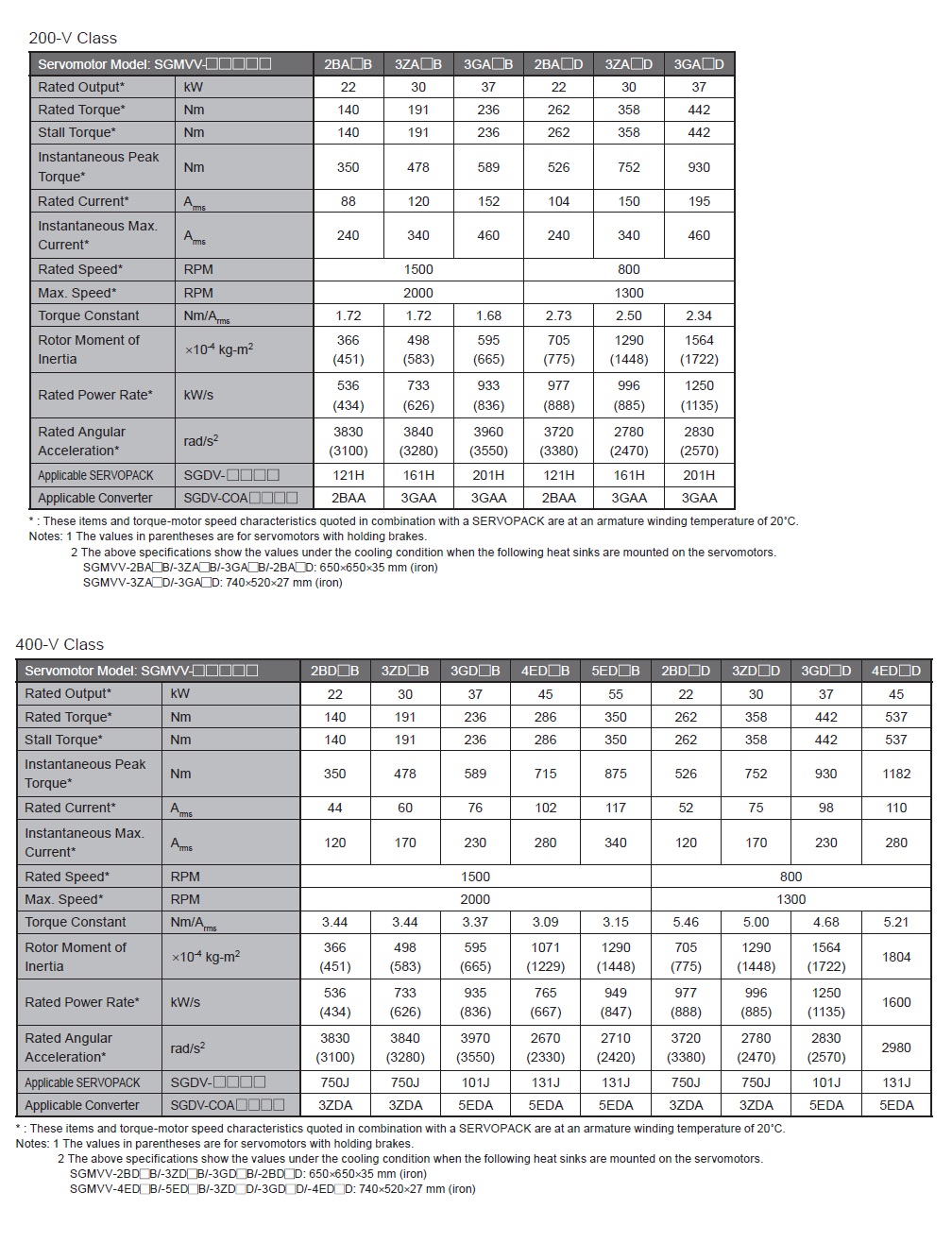

Rated Output: 22kW, 30kW, 37kW, 45kW, 55kW

The SGMVV large capacity brushless servomotor can be used in a variety of applications. Some characteristics of this motor line are as follows:

• Medium inertia
• High resolution absolute serial encoder: 20-bit
• Maximum Speed: 2000 rpm
• Wide Selection: 22kW to 55kW
• Holding Brake and Shaft Seal options available

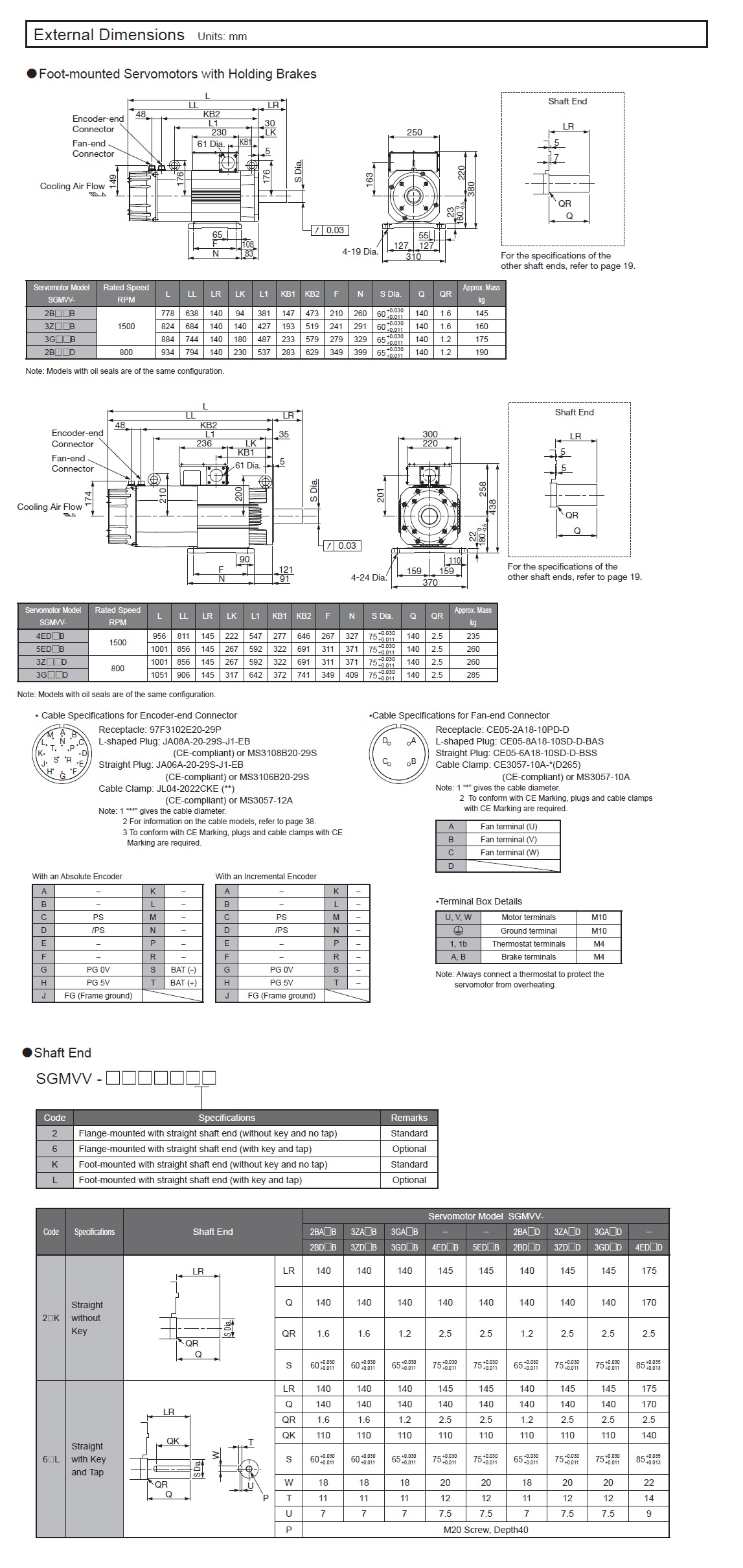

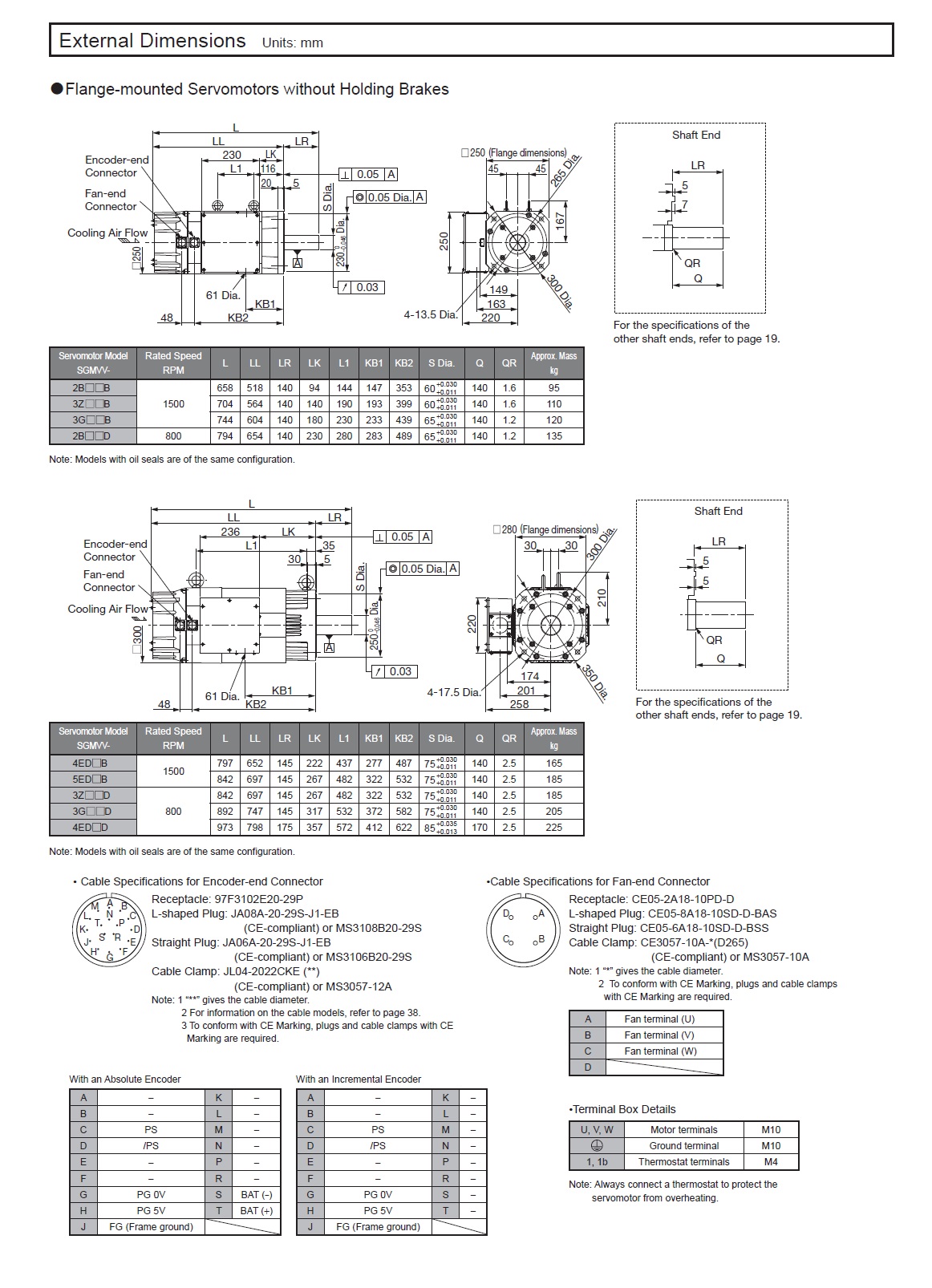

• Flange or Foot Mount Option
• Time Rating: Continuous
• Vibration Class: V15
• Insulation Resistance: 500 VDC, 10 MΩ min.
• Ambient Temperature: 0 to 40˚C
• Excitation: Permanent magnet
• Mounting: Flange-mounted
• Foot-mounted
• Thermal Class: F
• Withstand Voltage: 1500 VAC for one minute (200-V class)
• 1800 VAC for one minute (400-V class)
• Enclosure for IP44 (except for shaft opening): Totally enclosed, separately cooled
• Ambient Humidity: 20% to 80% (no condensation)
• Rotation Direction: Counterclockwise (CCW) with forward run reference when viewed from the load side
