Sigma Trac SGT

The Sigma Trac SGT is a series of linear actuators designed to reduce the work and unknown costs often involved in implementing linear motor technology into automation machines. Factory assembled to a precision aluminum base, Sigma Trac SGT delivers uncompromising linear motor performance in a bolt-on, plug-in package. Automatic motor recognition means start-up of the Sigma Trac is as quick and easy as a rotary servo system. Sigma Trac is well suited for single-axis point-to-point applications or for use in coordinated motion applications, faster cycle times are the common result. Speeds up to 5 m/s and acceleration up to 5 g are possible

Features:

• Factory assembled, fully integrated linear motor driven slide reduces machine design complexity and commissioning time.
• Automatic motor recognition by Yaskawa amplifiers eliminates need for user to input motor coil parameters.
• Long strokes and high-speed, high accuracy positioning.
• Large integrated cable carrier allows space for peripheral cables and hoses.
• Covers and accessories available as accessories (up to 1 m stroke).

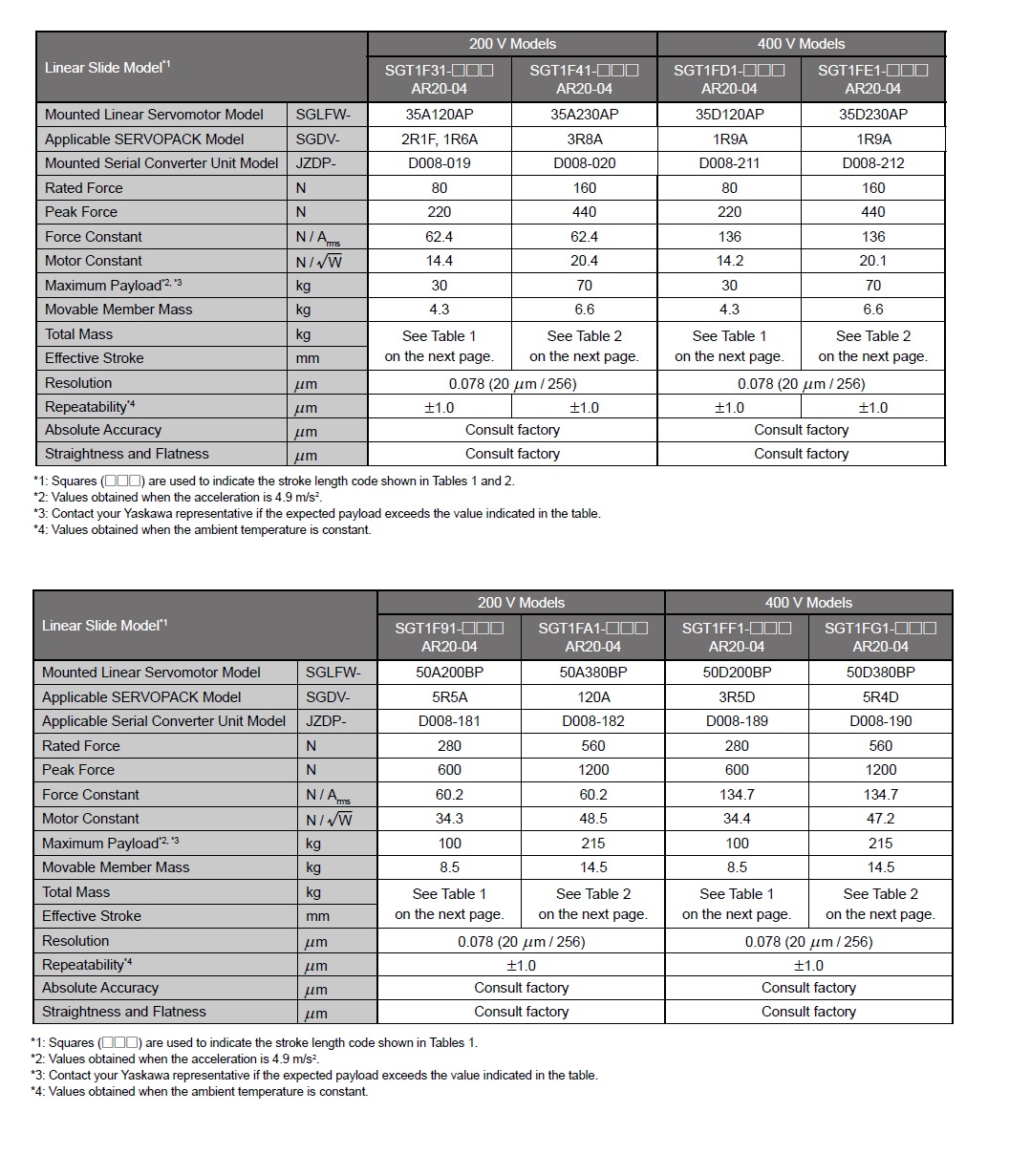

• Time Rating: Continuous
• Insulation Resistance: 500 VDC, 10 MΩ min.
• Ambient Temperature: 0 to 40˚C
• Excitation: Permanent magnet
• Withstand Voltage: 1500 VAC for one minute
• Enclosure: Self-cooled
• Ambient Humidity: 20% to 80% (no condensation)
• Winding Insulation: Class A

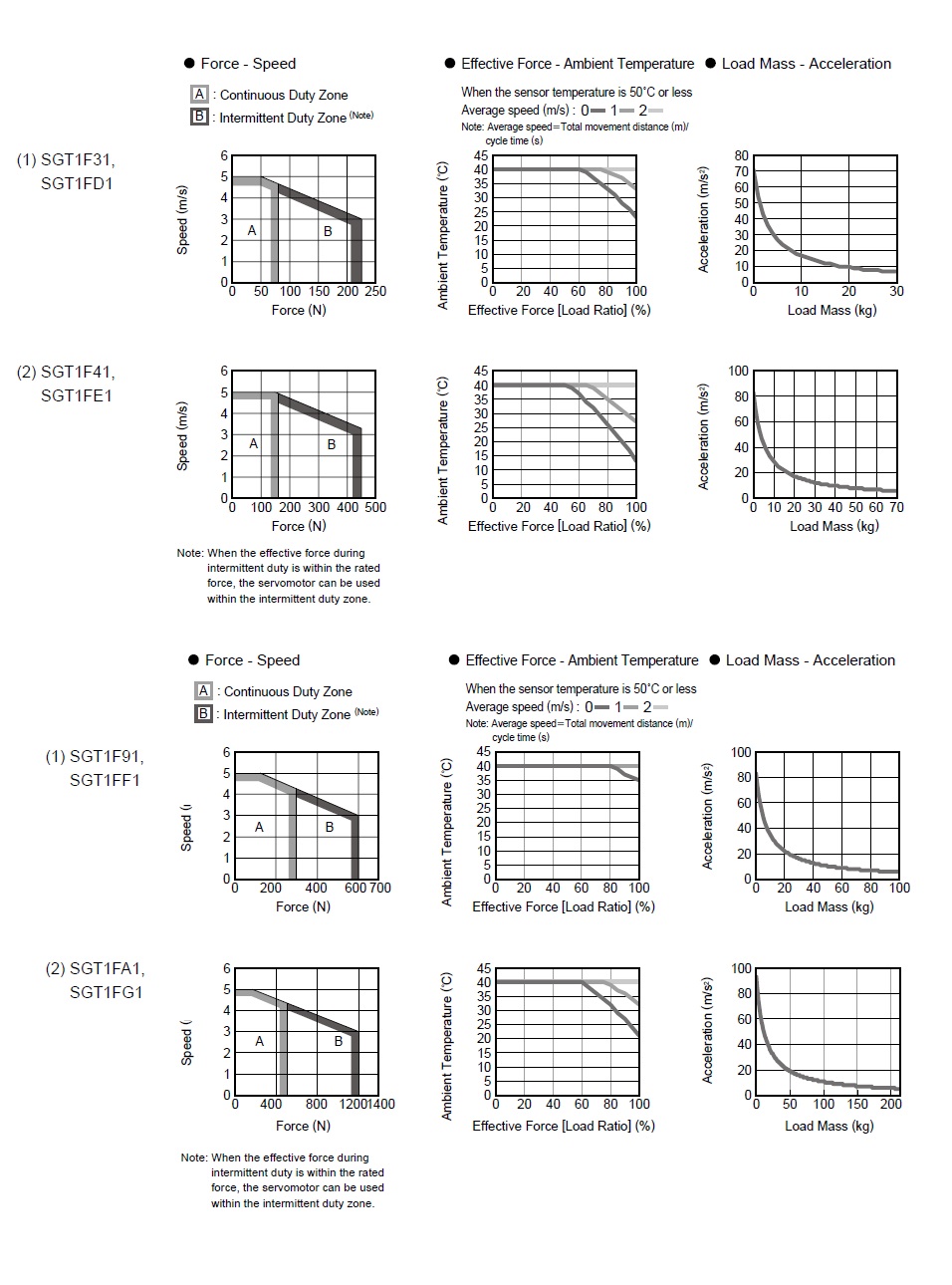

• Rated Force: 80-560 N
• Peak Force: 220-1200 N
• Motor Constant: 14.4-48.5 N/W
• Movable Mass: 4.3-14.5 kg
