SJME Junma

The Junma servo motor uses Yaskawa’s compact servomotor manufacturing techniques to deliver superior performance over stepper motors.

• Junma servomotors have an integral 16 bit encoder and are available with an integral holding brake for reducing the number of components in your system.
• Quick disconnect power and encoder cables provide plug and play connectivity from the Junma amp to the Junma motor.
• All Junma motors are tested and documented with a matched servo amplifier or SERVOPACK. These combinations optimize the amp and the motor for high performance, low cost, and small size.
• Junma servo motors provide 7 times the acceleration power than a stepper motor of comparable volume.
• Input voltage: 120 or 240 VAC (single phase)
• Feedback resolution: 65,536 pulses/rev
• Control input: pulse and direction

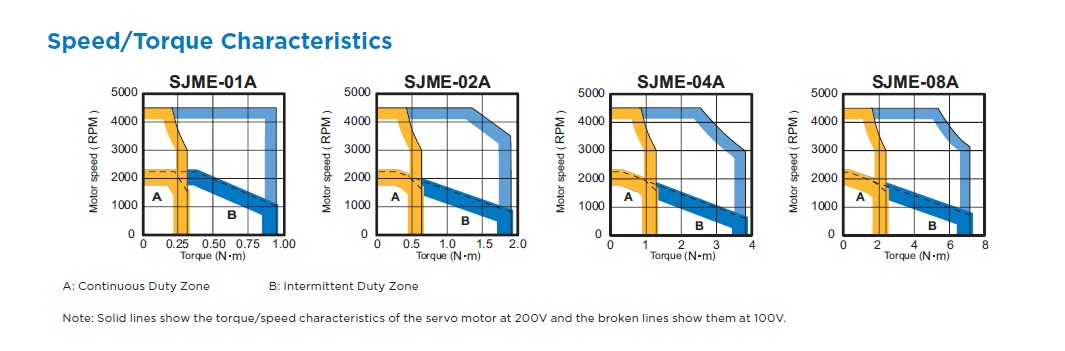

• High torque output at speeds up to 4500 RPM
• Adaptive tuning
• Vibration suppression
• Jogging
• Homing to marker pulse
• Electronic gearing
• Torque limiting
• Position complete output
