SmarAct: SLL-C42 Positioner

Linear Positioners - Overview

We are offering three lines of linear positioners.

Positioners from the SLC line are based on linear crossed-roller slides and they are therefore characterized by their high rigidity and straightness. They should be chosen for compact nanopositioning systems with or without sensor feedback.

Positioners from the SL line are compact low-cost positioners that are based on linear ball slides. They are therefore well-suited for micro-positioning systems with a low cost-level, where absolute accuracy is not a critical issue.

Positioners from the SLL line are based on recirculating ball slides. The small slide in combination with a long rail makes it an interesting solution for long range positioning within limited space and a cost effective micro- and nanopositioning system.

The SLC line includes the SLC-17 and the SLC-24 series of linear positioners with a cross section of 17 x 8.5 mm² and 24 x 10.5 mm², respectively.

The SL-06 is our smallest open loop positioner with a cross section of 4.2 x 11 mm².

The SLL line includes linear positioners of the SLL-C12 series and the SLC-C42 series with a cross section of 27 x 13 mm², and 60 x 16 mm², respectively.

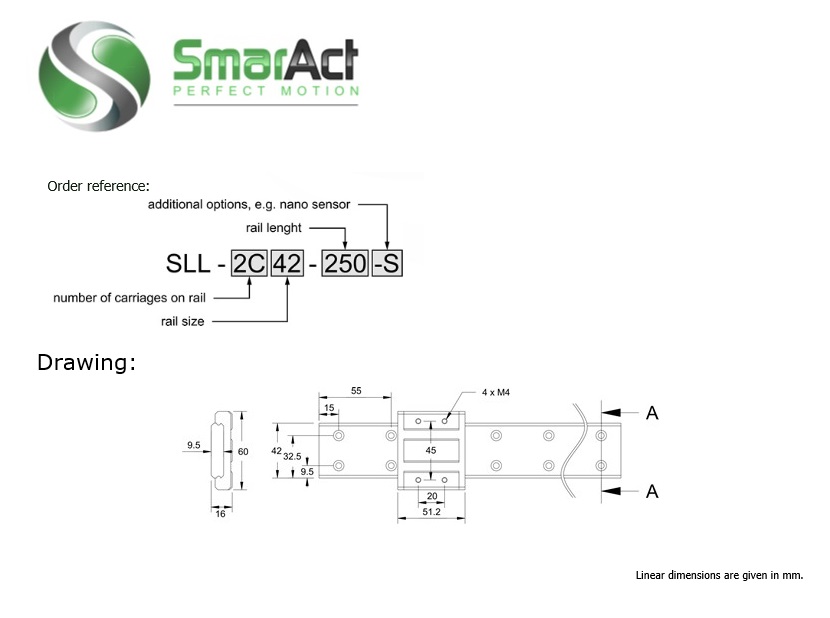

SLL-C42- Series for Micro- & Nanopositioning

Positioners from the SLL-C42-series are based on recirculating ball slides and are cost-effective micro- and nanopositioning solutions. The wide slide in combination with the rails of different length makes it an interesting solution for precise long range positioning. If needed, it is possible to put multiple slides onto the same rail. They can be operated by any of our control units and are also available for high vacuum.

Specifications:

Option:

Movement

Strength

Driving Signal
