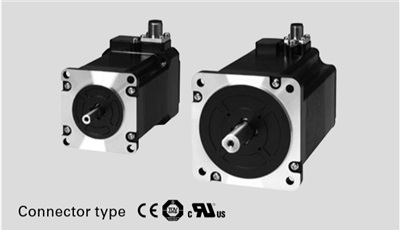

Sanyo Denki: IP65 Splash and Dust Proof Stepping Motors (SP286 Series)
Sanyo Denki: IP65 Splash and Dust Proof Stepping Motors (SP286 Series)

Alternate View
Price : $291.00

Price with Selected Options: $291.00

Quantity in Stock:2

Order #: SP286


Model Number/Code*:

Qty:

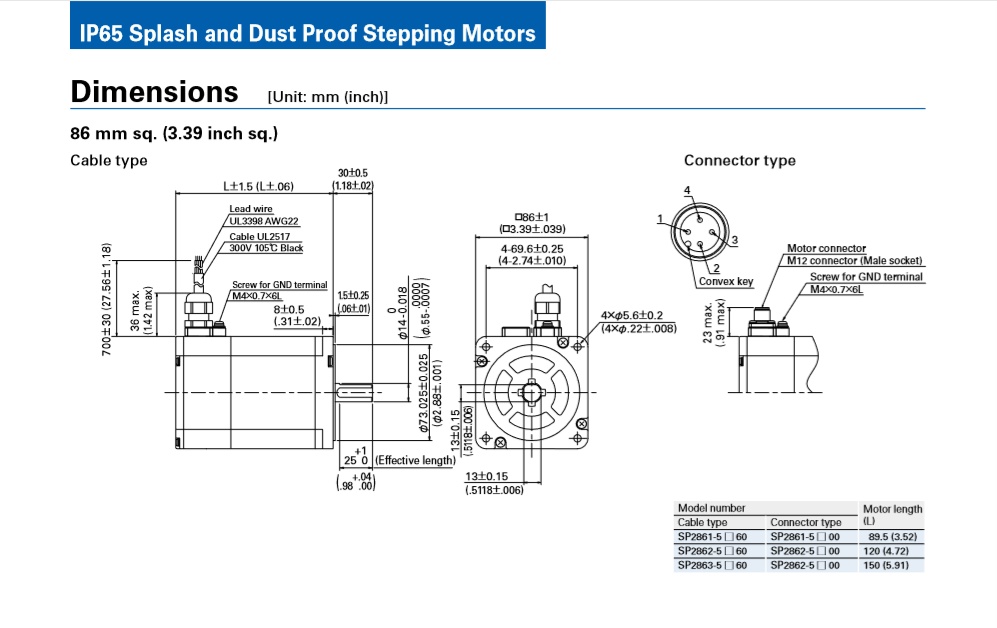

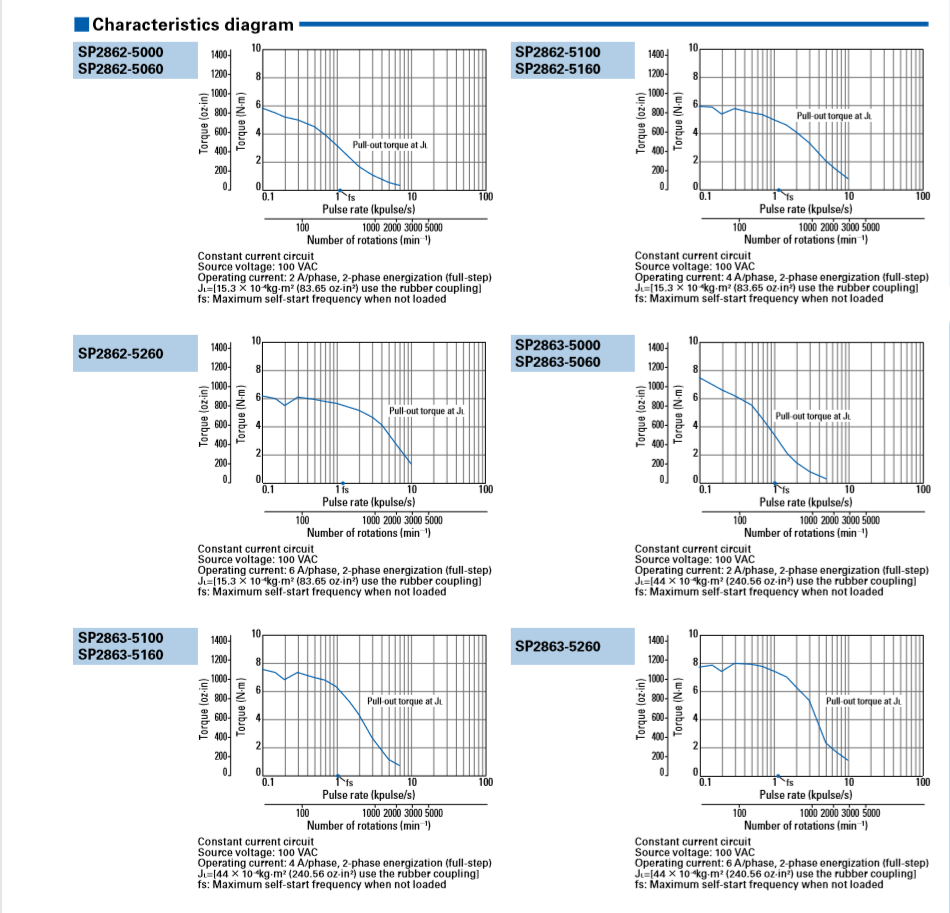

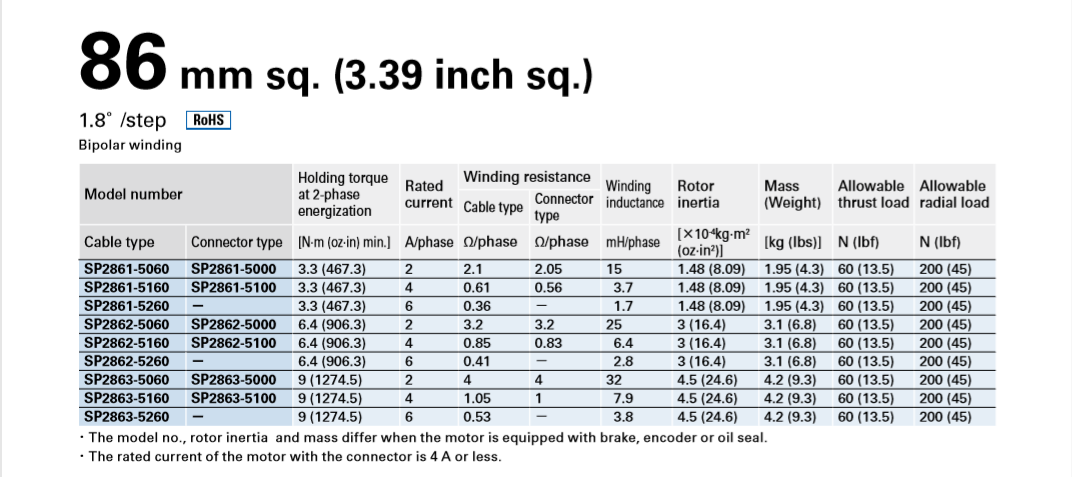

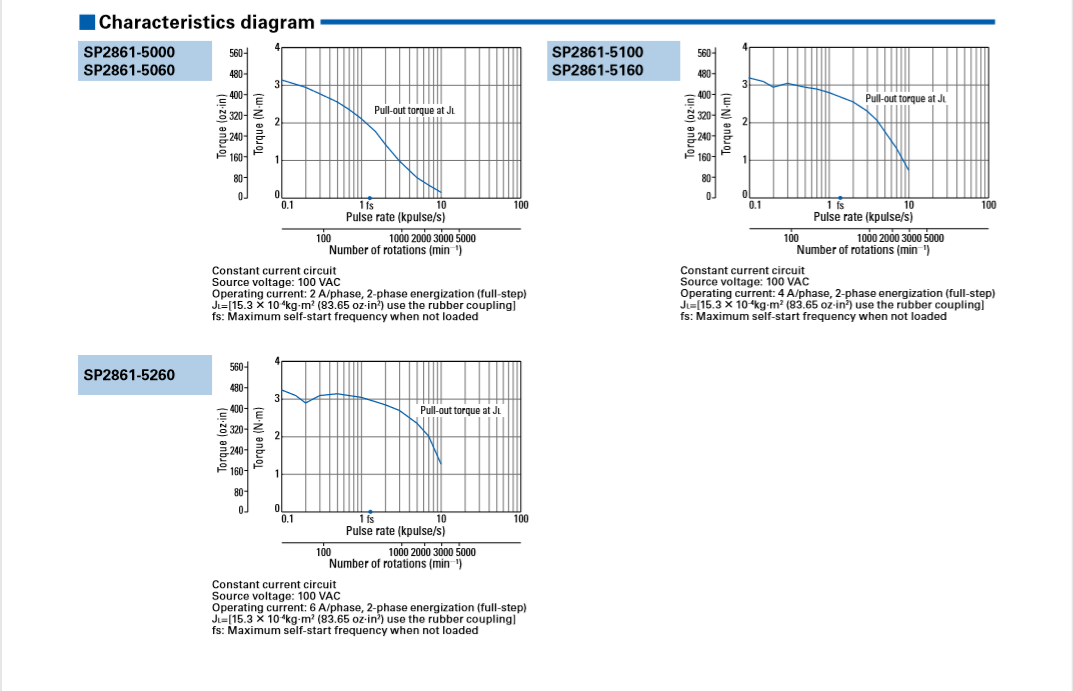

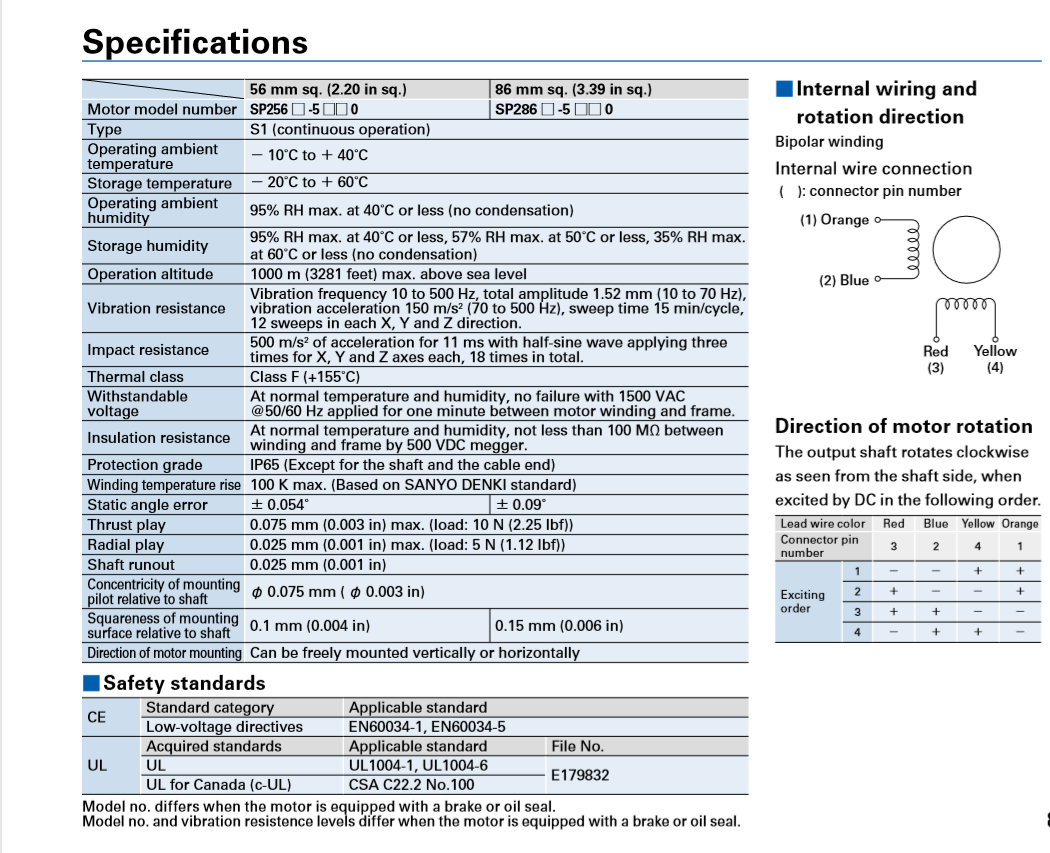

Description Specifications and Drawings


Sanyo Denki: IP65 Splash and Dust Proof Stepping Motors (SP286 Series)

SANMOTION F2

Basic step angle: 1.8°

Includes a driver and a high torque motor for a DC input set model (unipolar/bipolar specifications) with a basic step angle of 1.8°, and covers a wide variety of applications, including industrial sewing machines, financial terminals, copiers and manufacturing equipment for semiconductors.

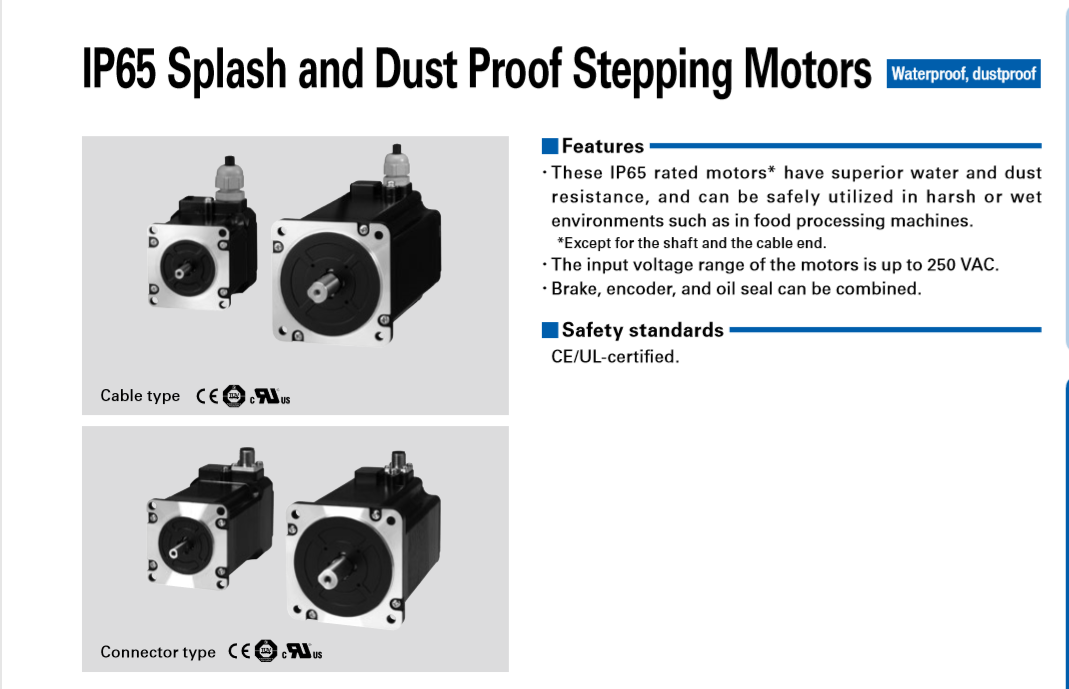

Features:

  • IP65 rated motors* have superior water and dust resistance, and can be safely utilized in harsh or wet environments such as in food processing machines.

  • The input voltage range of the motors is up to 250 VAC.

  • Brake, encoder, and oil seal can be combined.

*Except for the shaft and the cable end.

Model No.: SP2862-5260, SP2863-5260
