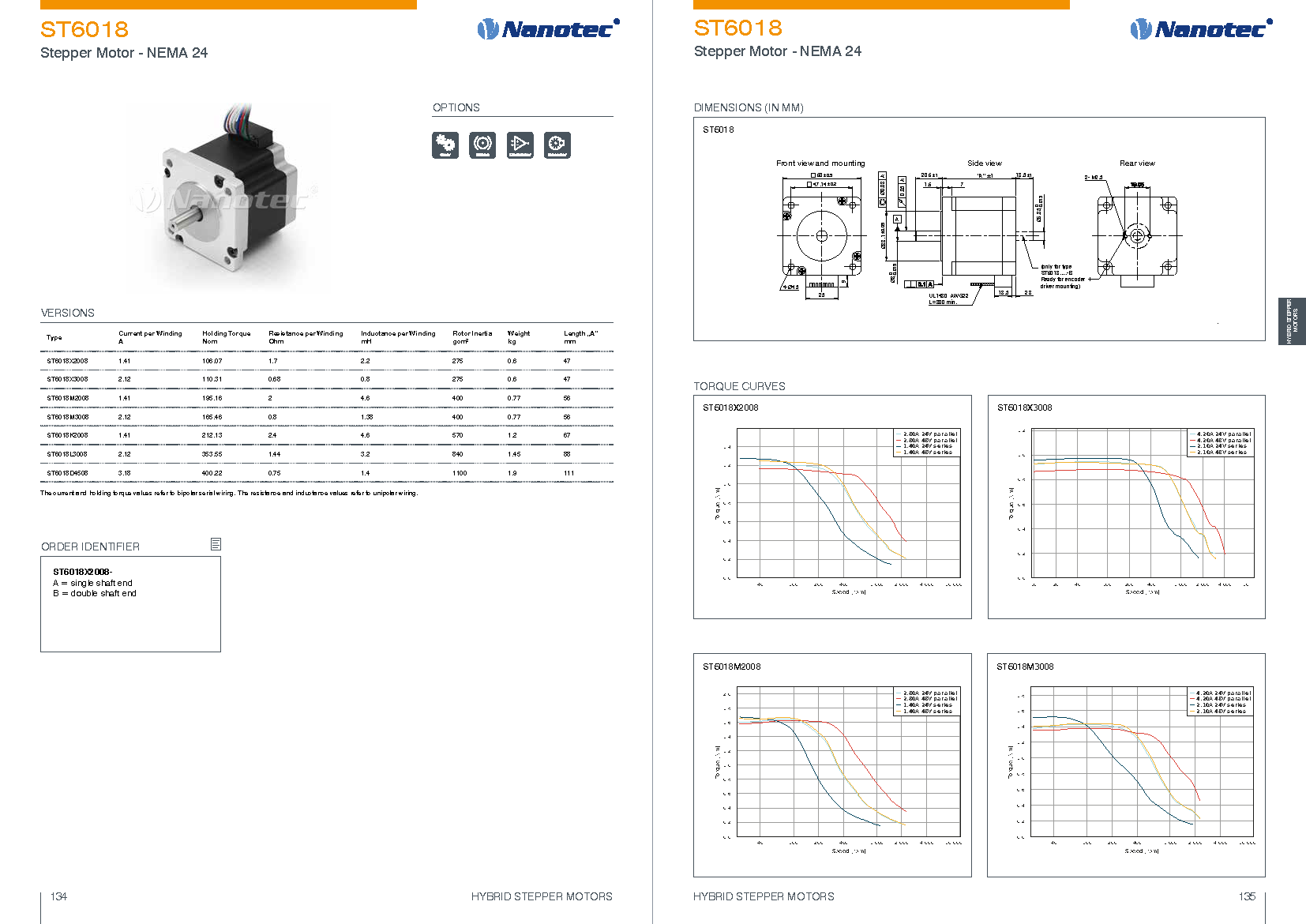

HYBRID STEPPER MOTOR – NEMA 24

High-torque stepper motor in size NEMA 24 (60 mm) with 1.8° step angle (full step). This stepper motor is slightly larger (flange size 60x60 mm) than the stepper motors of the ST5918 series, but offers a markedly higher power output and an 8 mm shaft with the same hole pattern. Available in five lengths and a variety of versions.

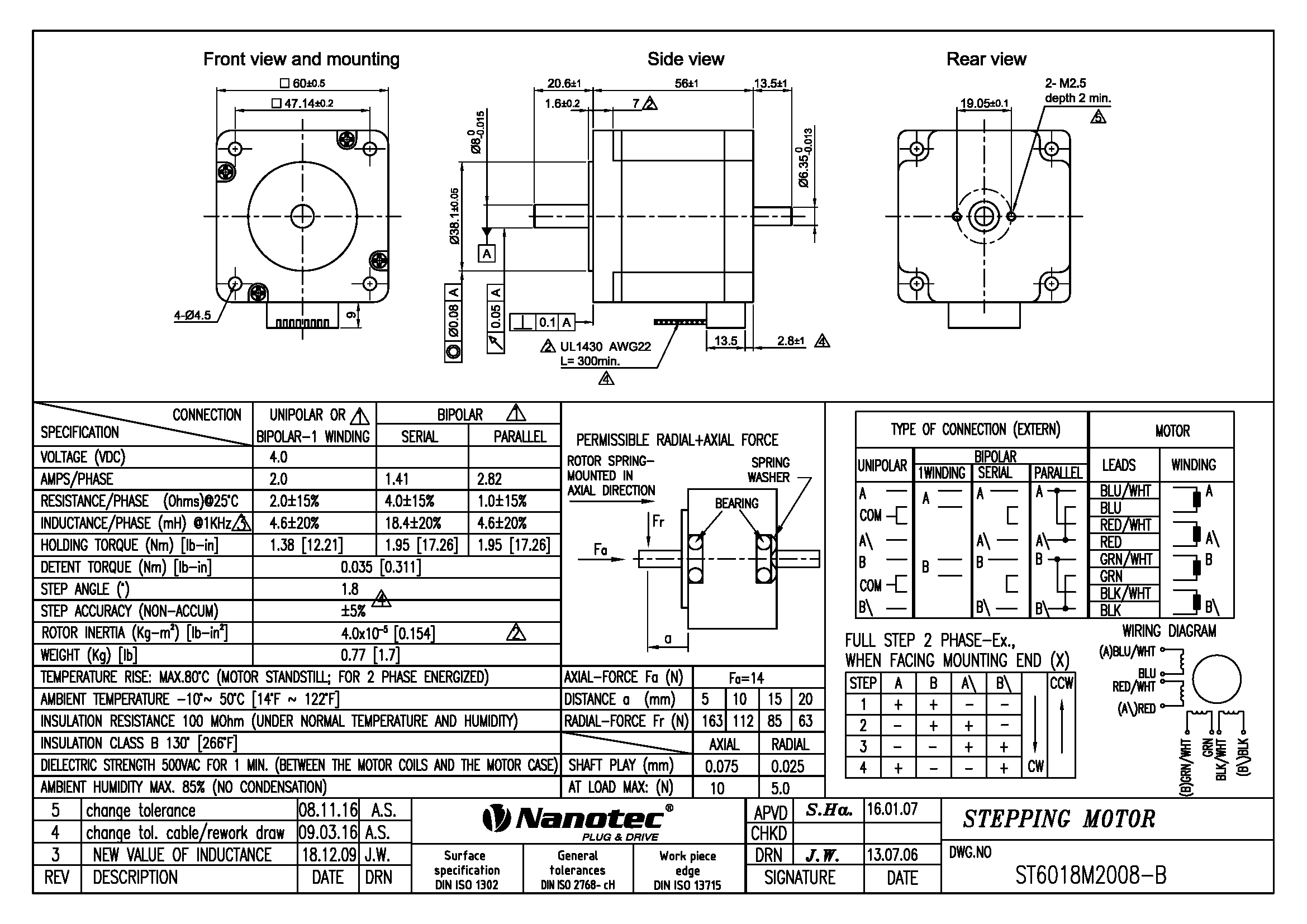

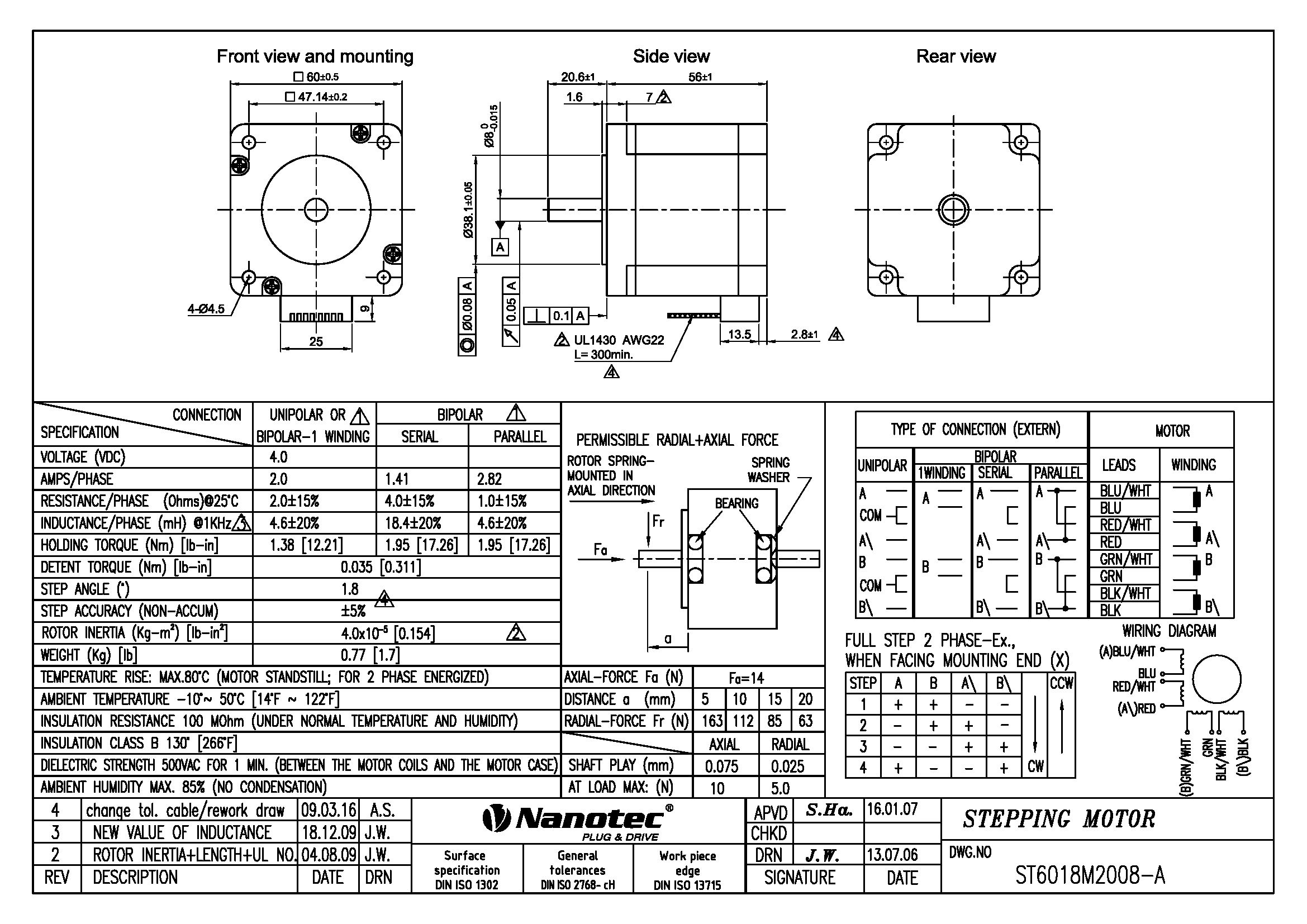

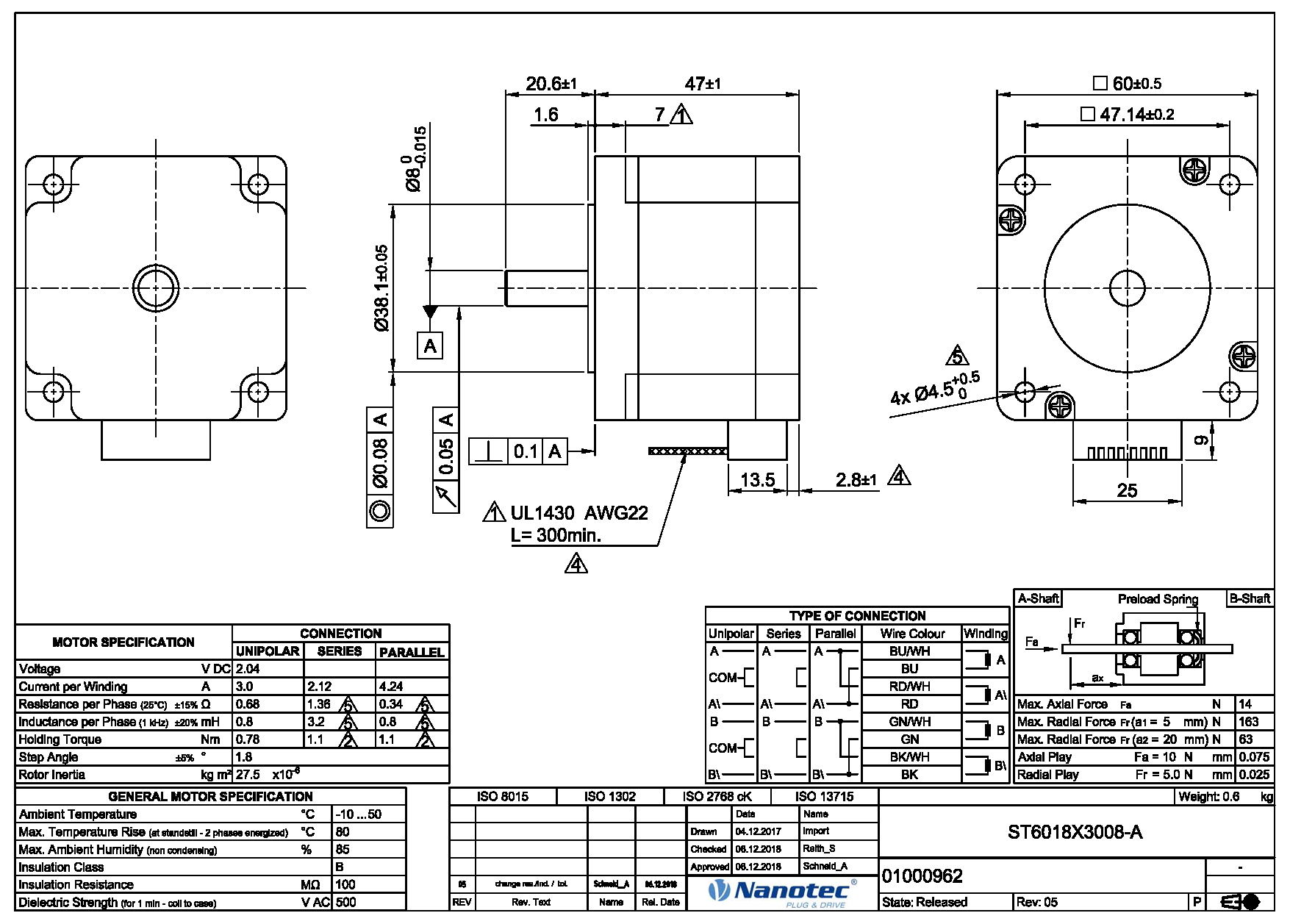

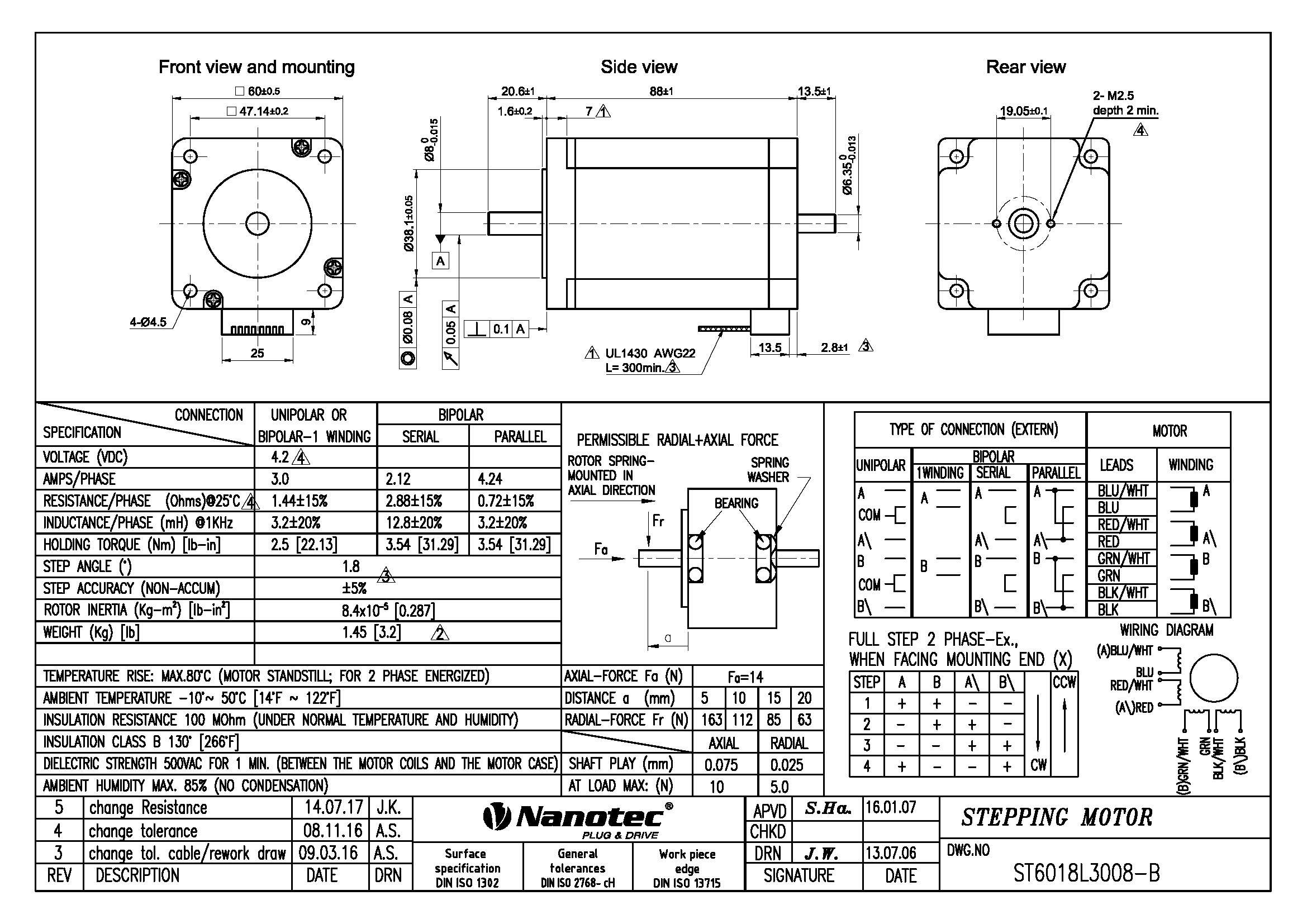

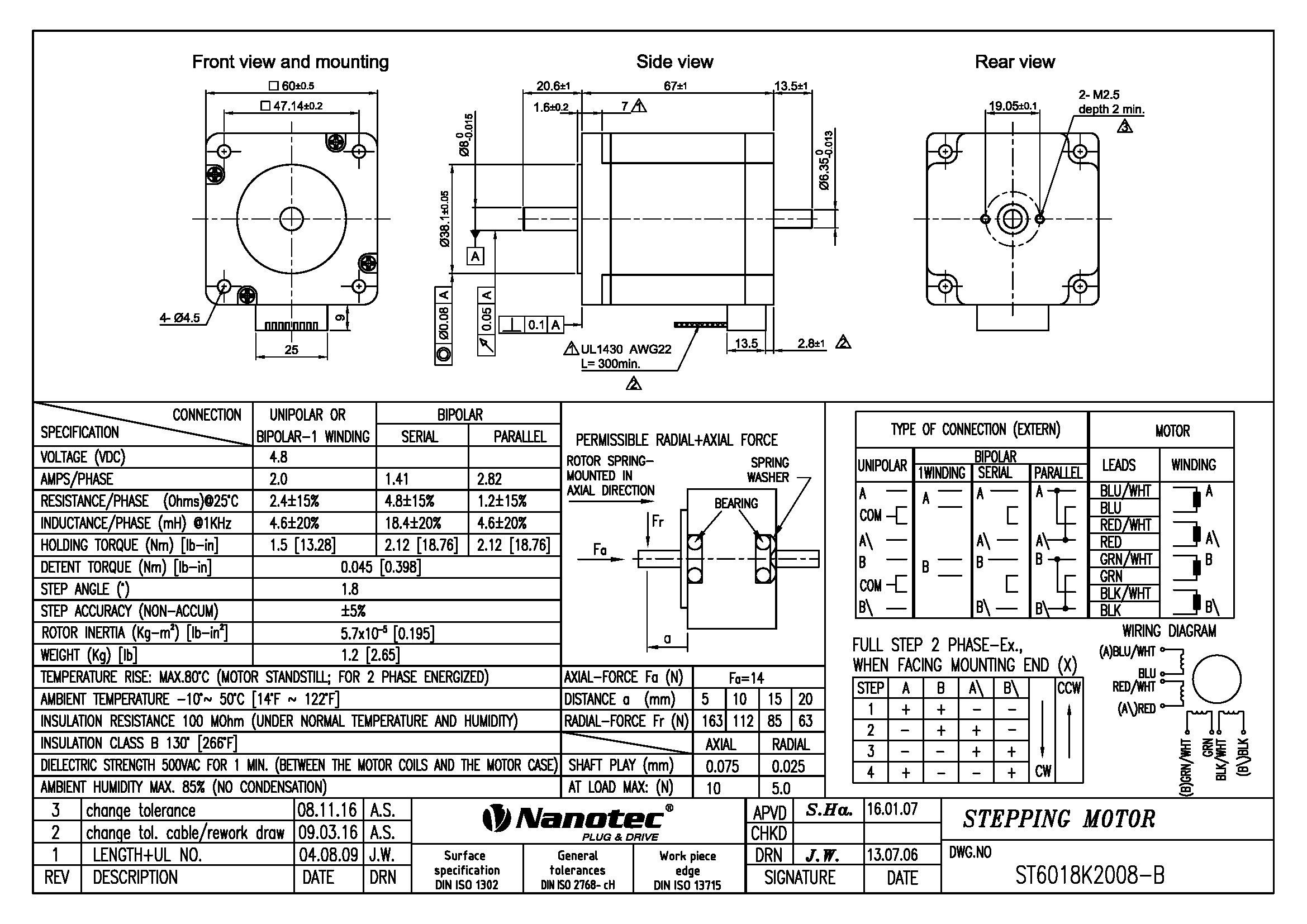

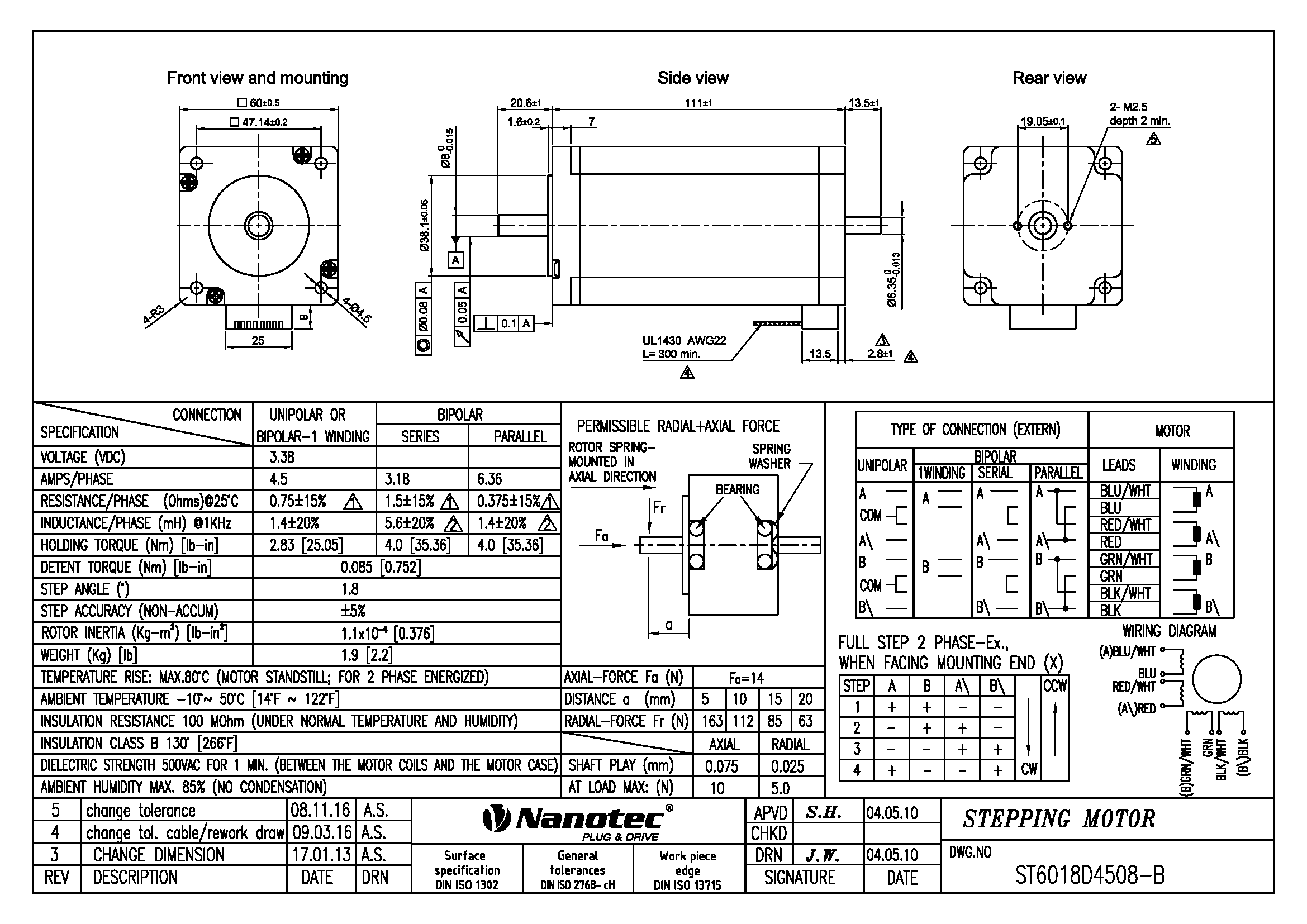

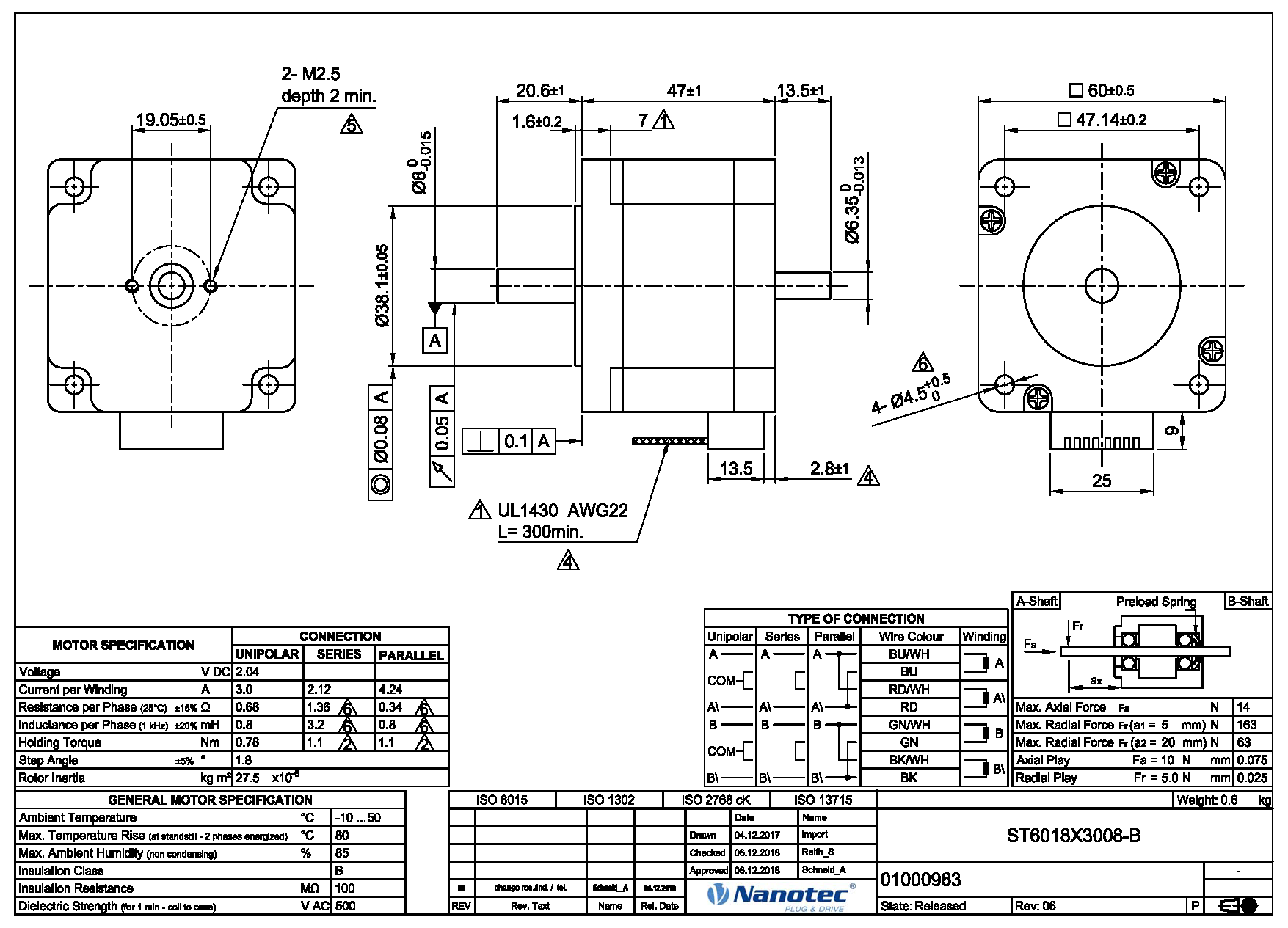

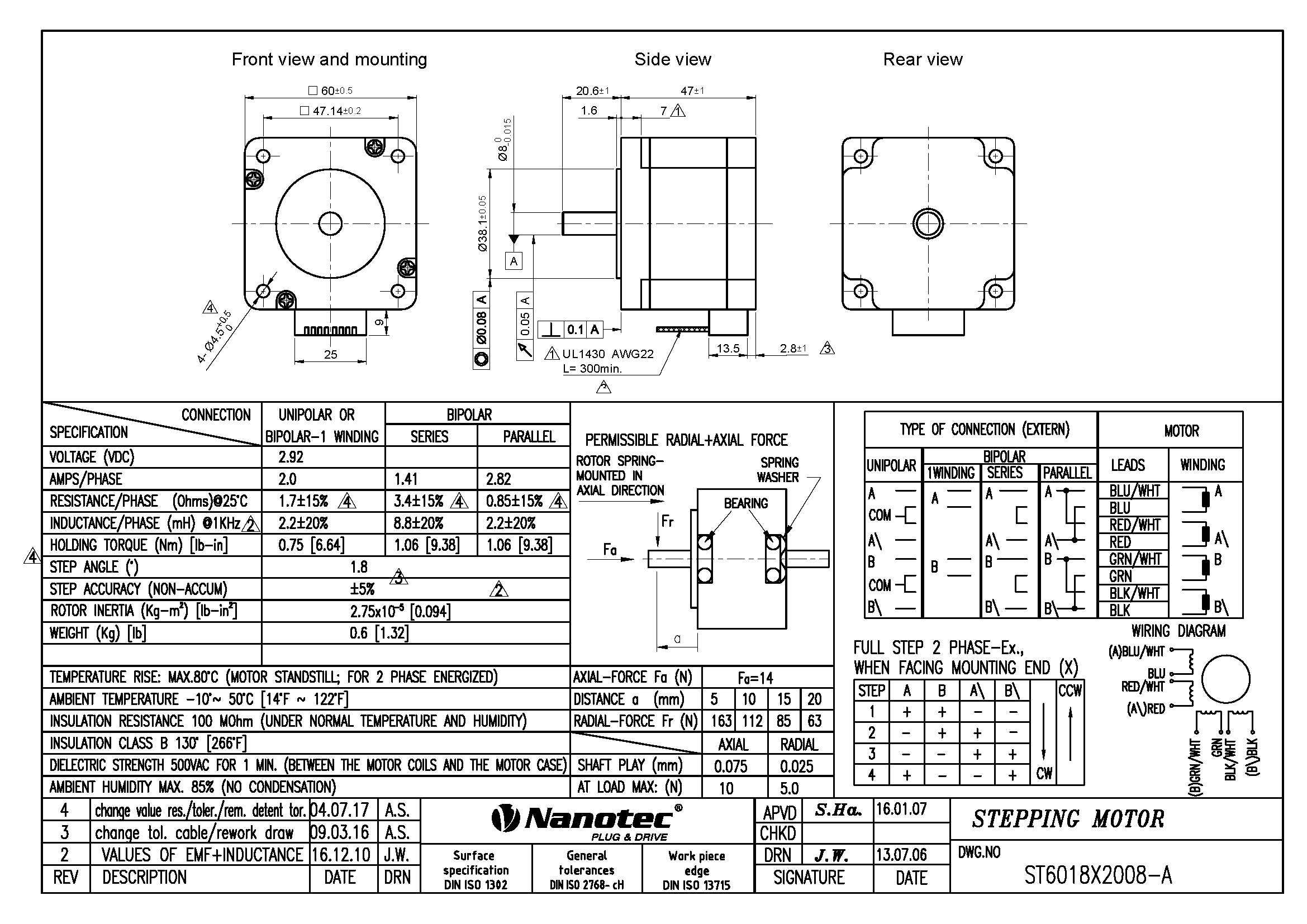

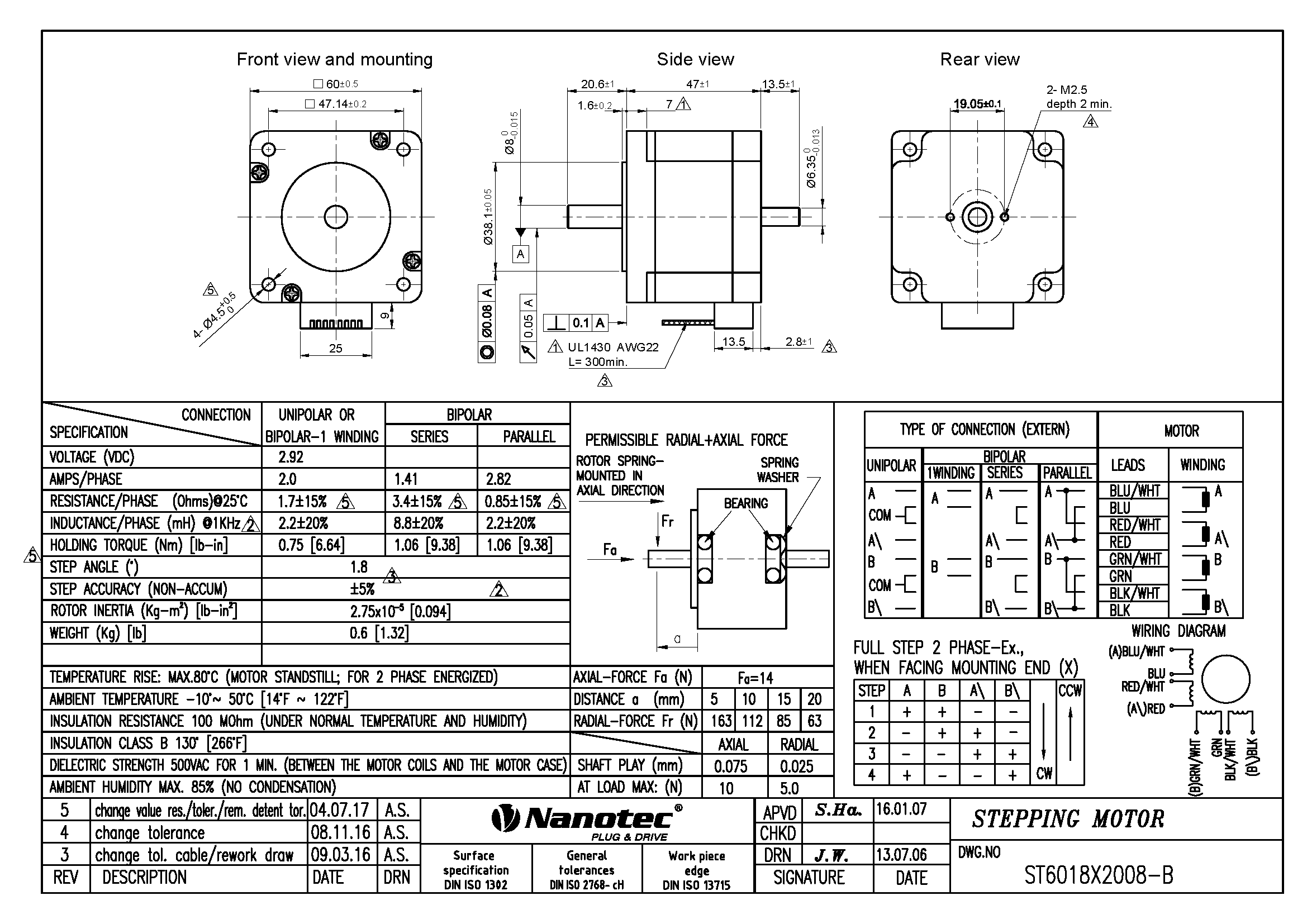

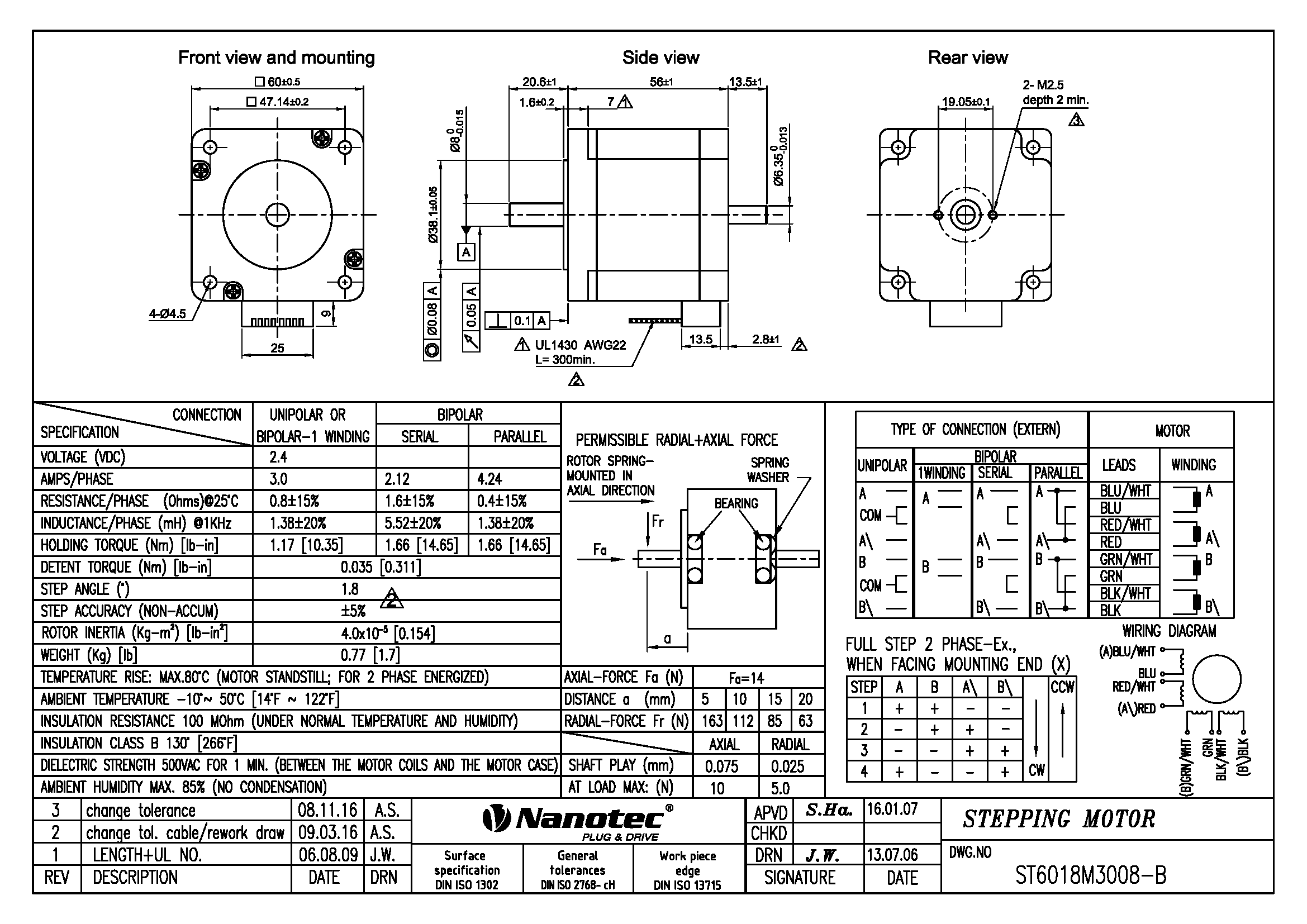

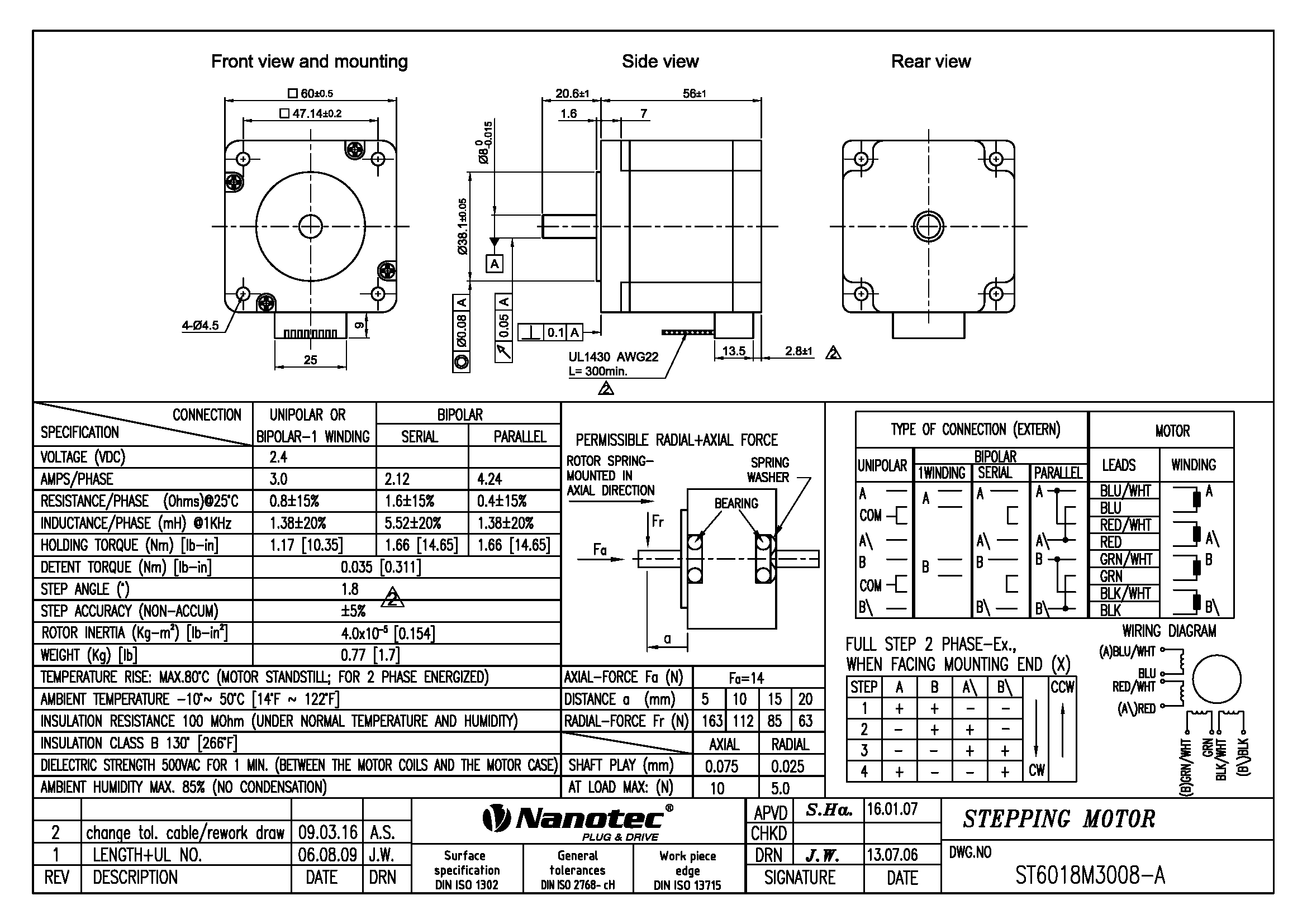

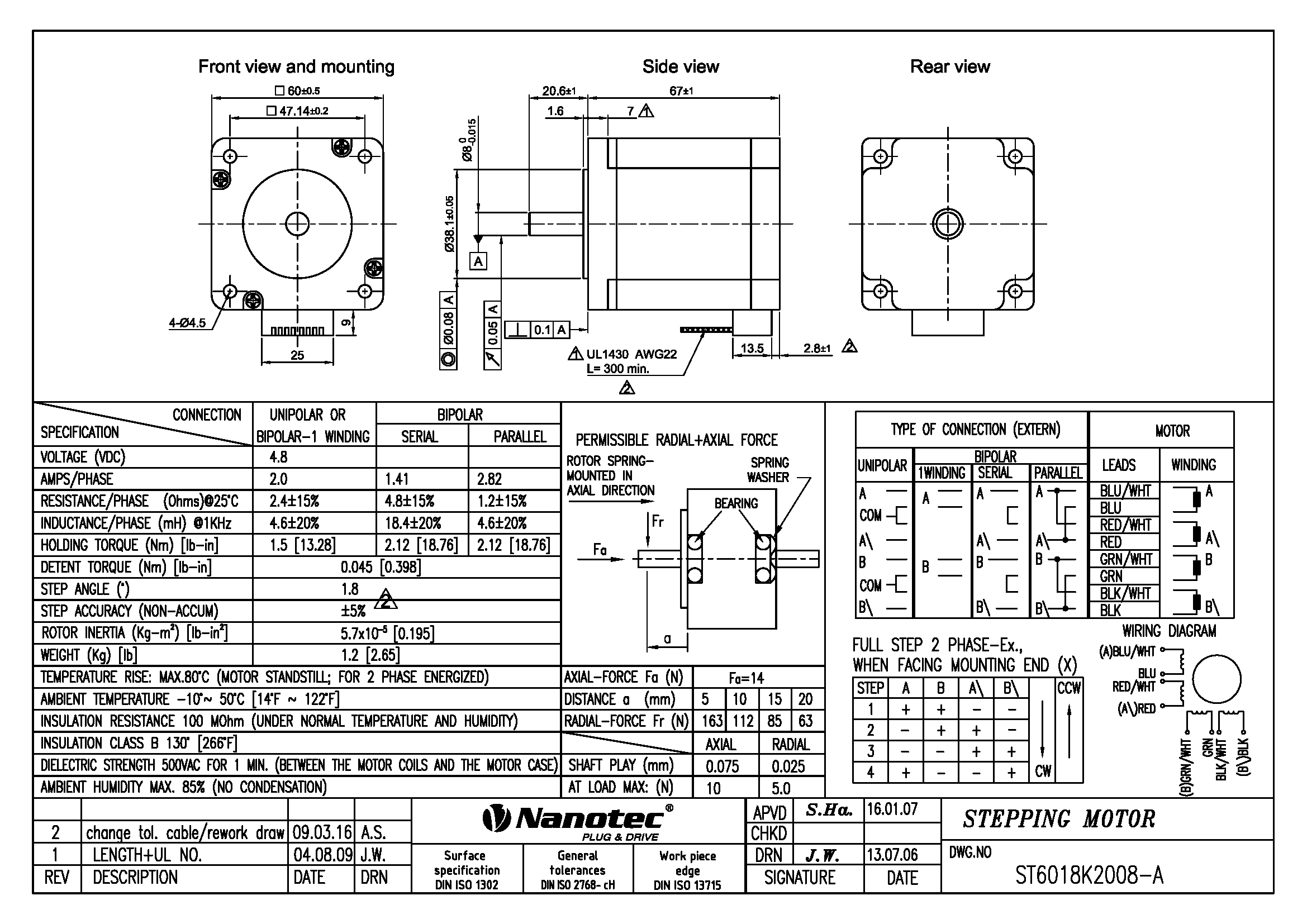

ST6018X2008-A, ST6018X2008-B, ST6018X3008-A, ST6018X3008-B, ST6018M2008-A, ST6018M2008-B, ST6018M3008-A, ST6018M3008-B, ST6018K2008-A, ST6018K2008-B, ST6018L3008-A, ST6018L3008-B, ST6018D4508-A, ST6018D4508-B

• NEMA 24

• Current per Winding - 1.41 A - 4.5 A

• Length "A" - 1.85 in - 4.37 in

• Size - 2.36 in

• Holding Torque - 150.21 oz-in - 566.76 oz-in

• Weight - 1.4 kg
