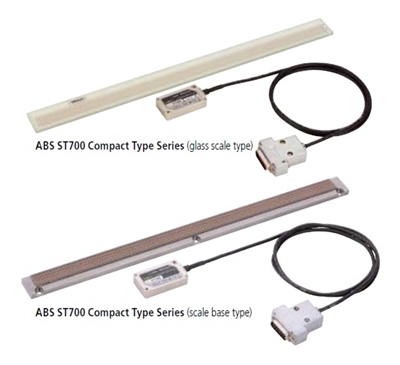

Absolute measurement with exposed scales.

Non-contact detection is optimal for high speed and high acceleration devices such as linear motors.

Electromagnetic induction principle means scales are unaffected by water and oil contamination.

The detector head is approximately 1/3 the previous model size:50mm (W) × 28mm (D) × 11mm (H)

Cable outlets can be in four directions, with mounting holes on the top and sides.

Accuracy (5+5L/1000)μm, glass scale: (3+3L/1000)μm (previous models: (8+5L/1000)μm) L: Effective range (mm)

Compatible with servo amplifiers from a range of companies (high-speed serial interfaces)

Signal adjustment at installation is automatically performed with dedicated software.

Yaskawa Electric Corporation serial cable can be used as the feedback cable to connect to a Yaskawa Electric Corporation servo amplifier. Cable model number : JZSP-CLP- (03, 05, 10, 15, 20)

For the feedback cable to connect to a Mitsubishi Electric Corporation MR-J2S/MR-J3, contact Mitutoyo with the following code numbers.
For the MR-J2S 5m : No.06ACF116A 10m : No.06ACF116B
For the MR-J3 5m : No.06ACF117A 10m : No.06ACF117B
