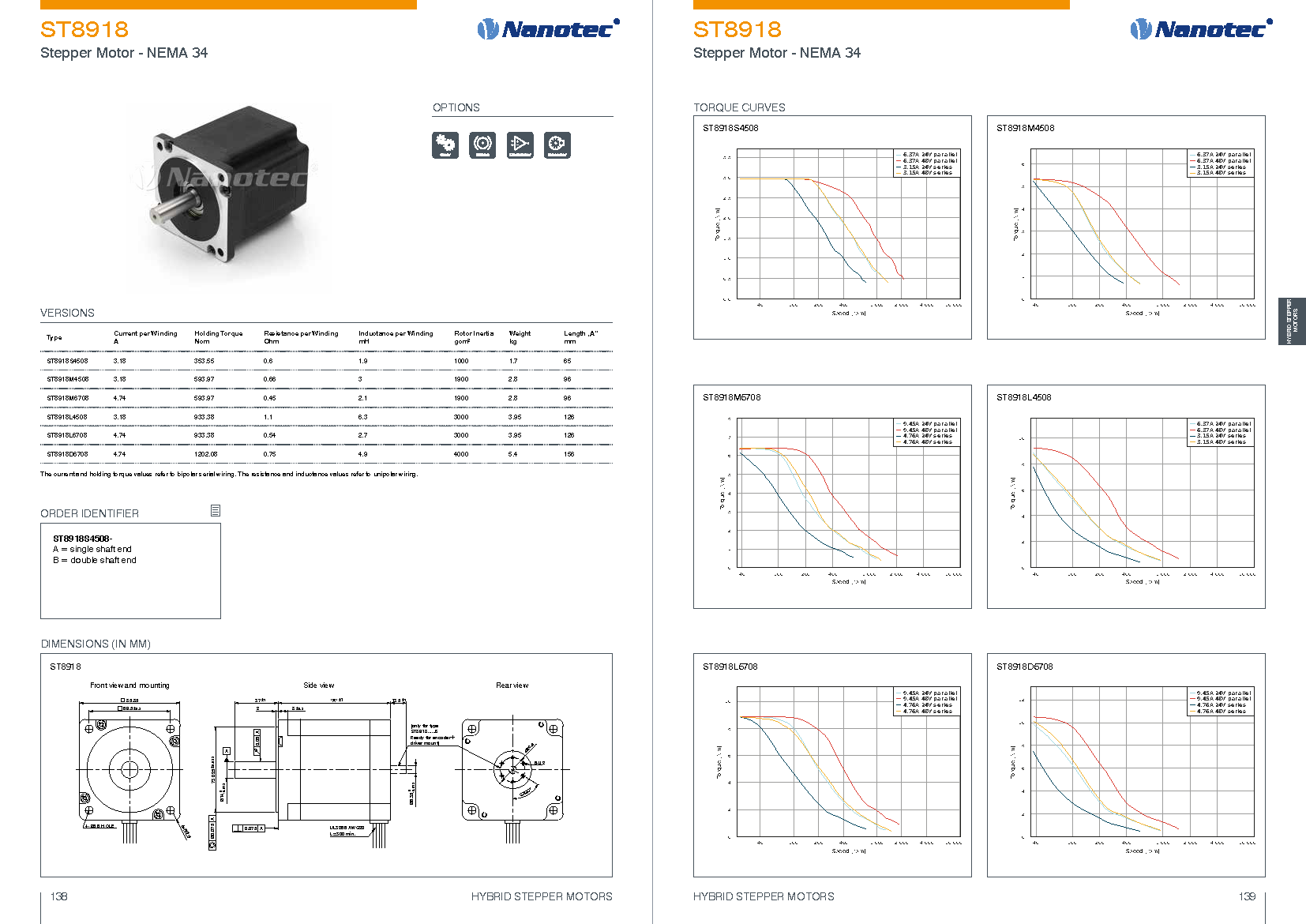

HYBRID STEPPER MOTOR – NEMA 34

Stepper motor with very high torque in relation to its size. 86 mm flange, 1.8° step angle and 353.55–1,202.08 Ncm holding torque. Length: 65–156 mm.

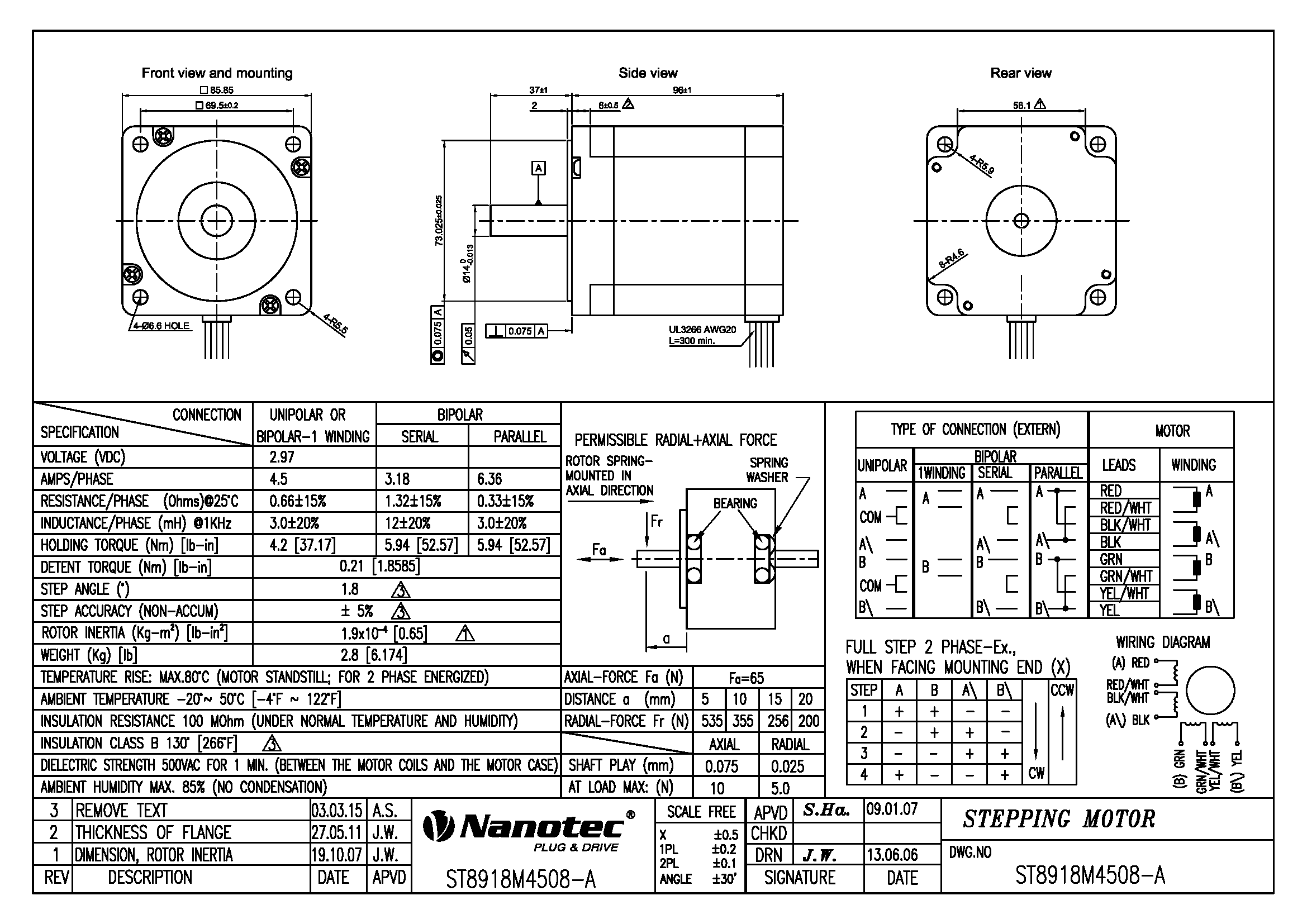

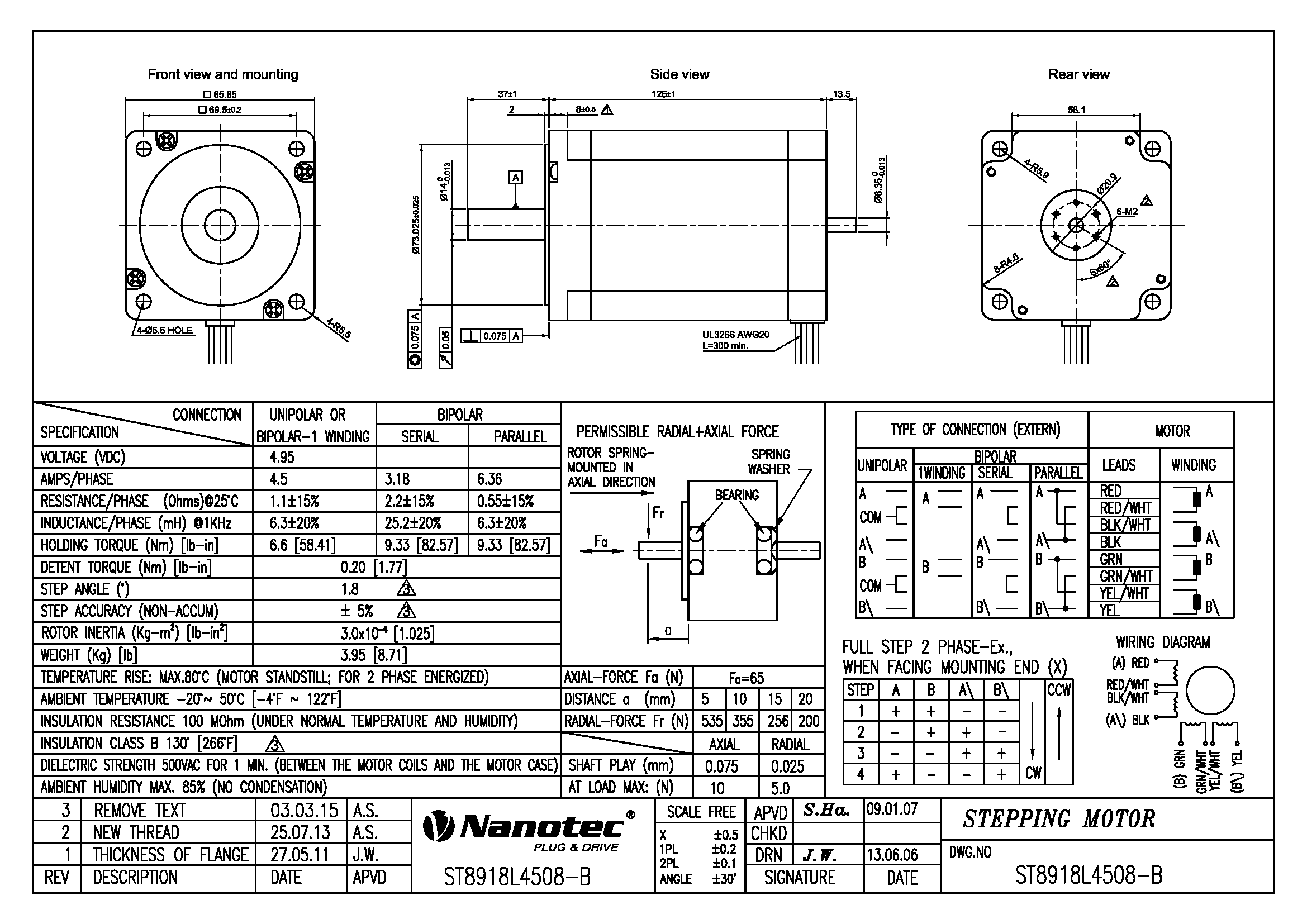

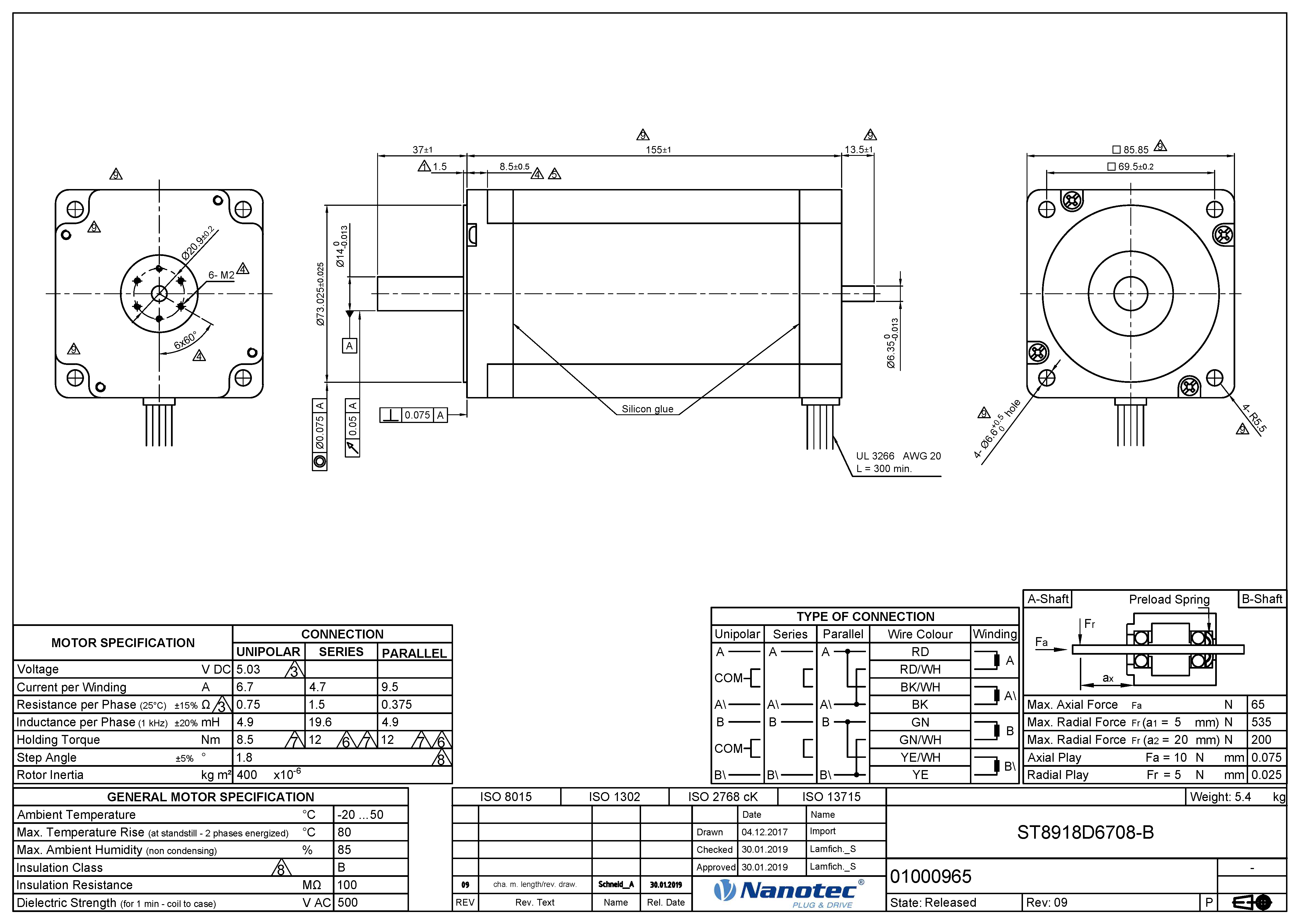

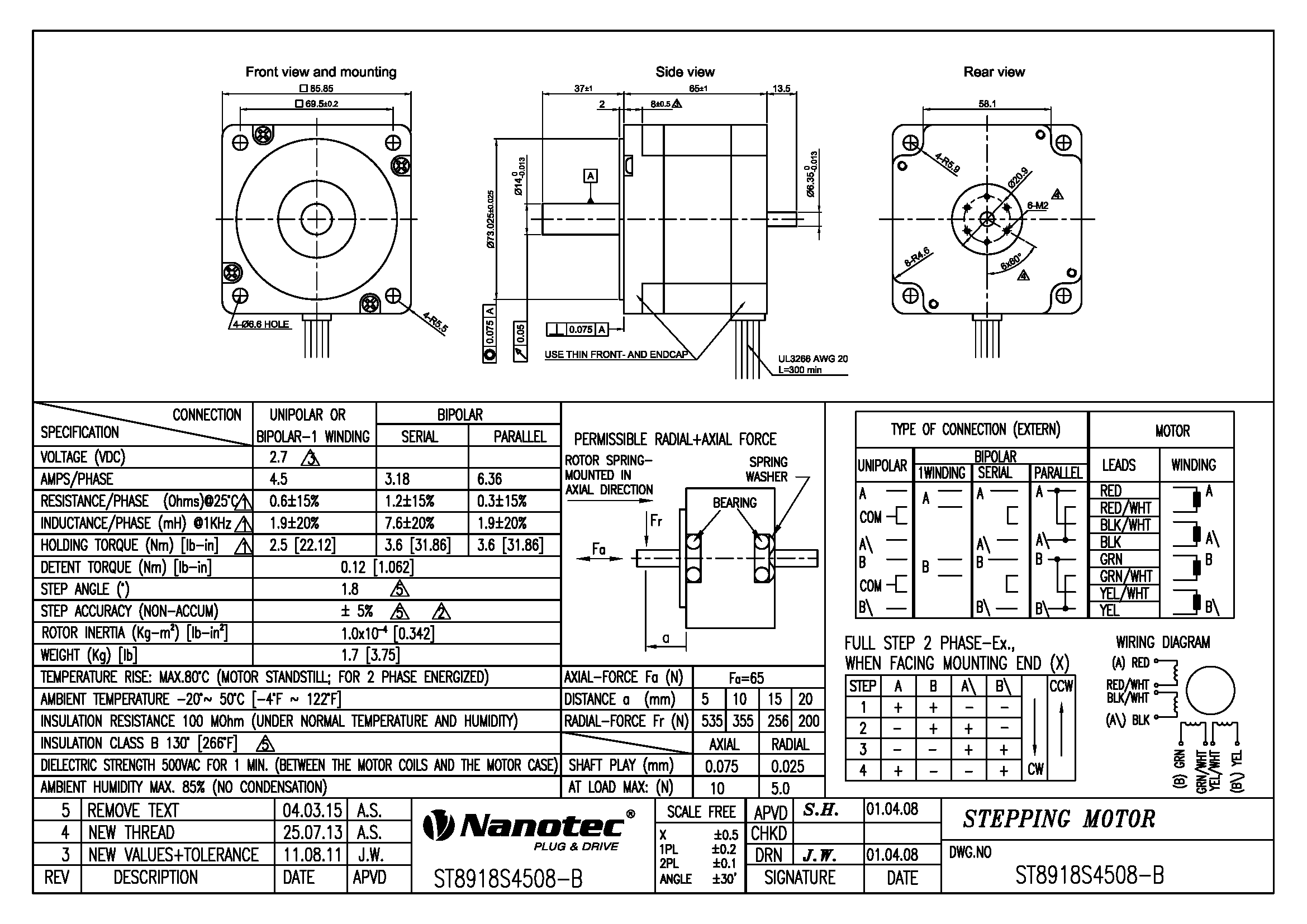

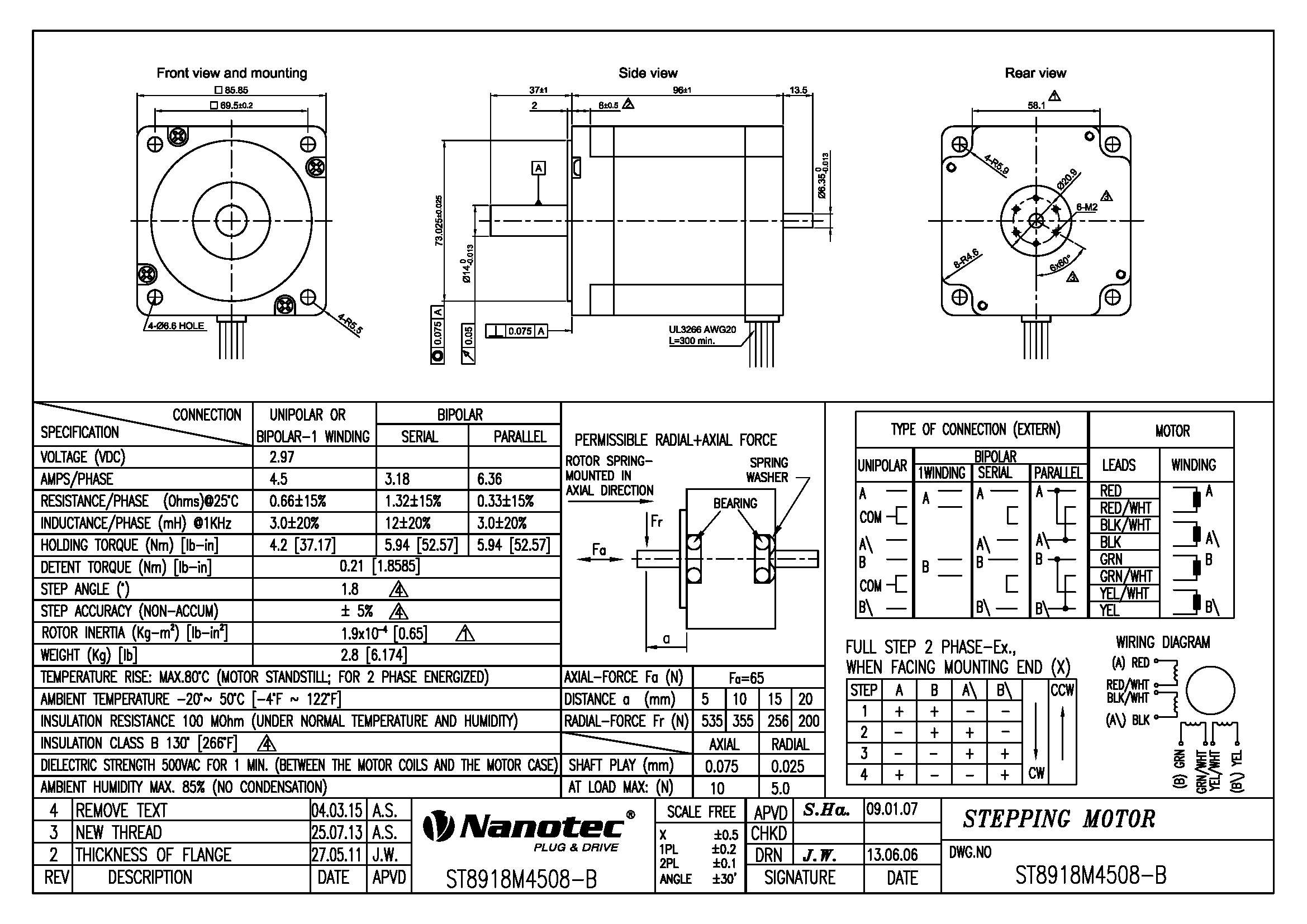

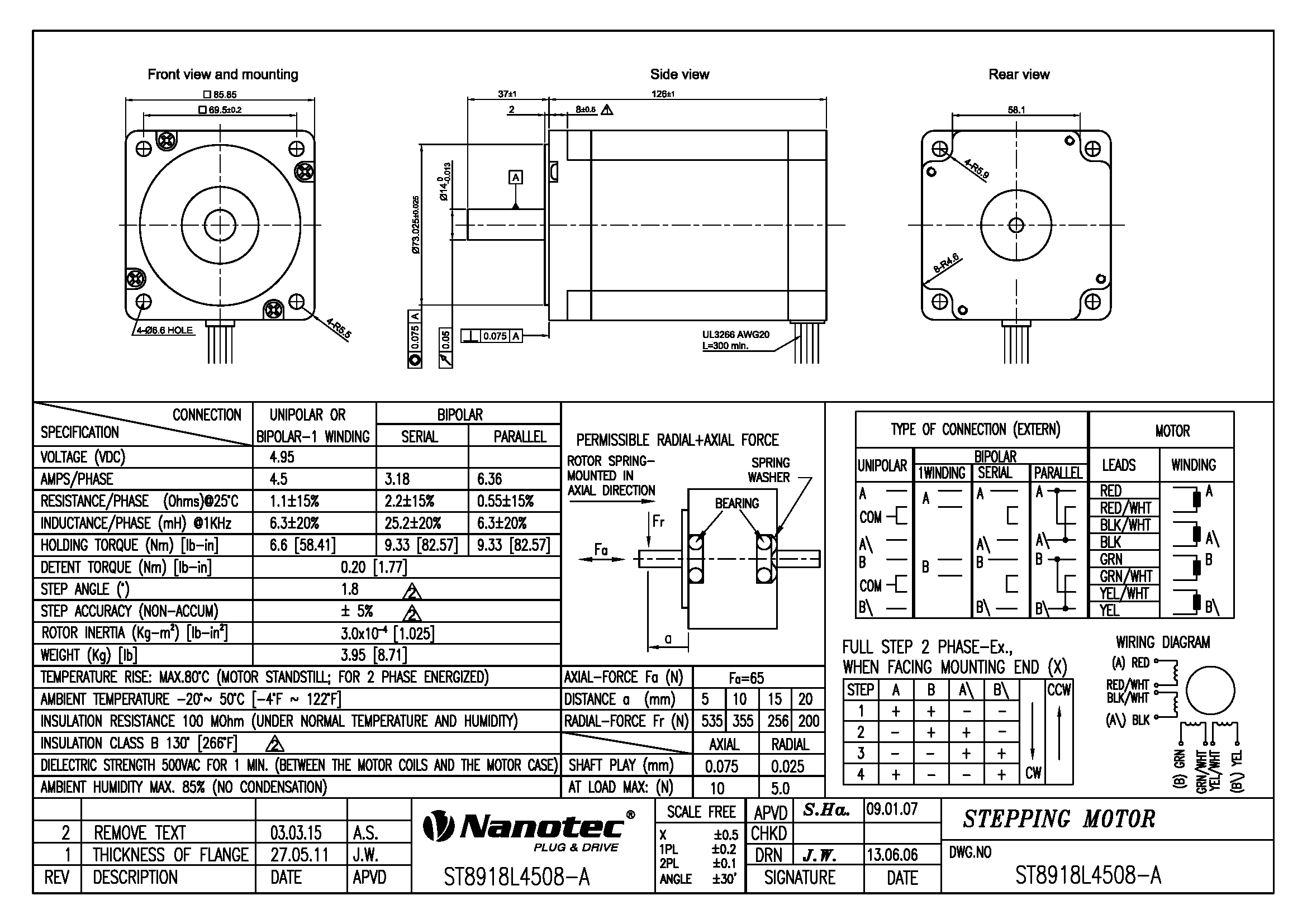

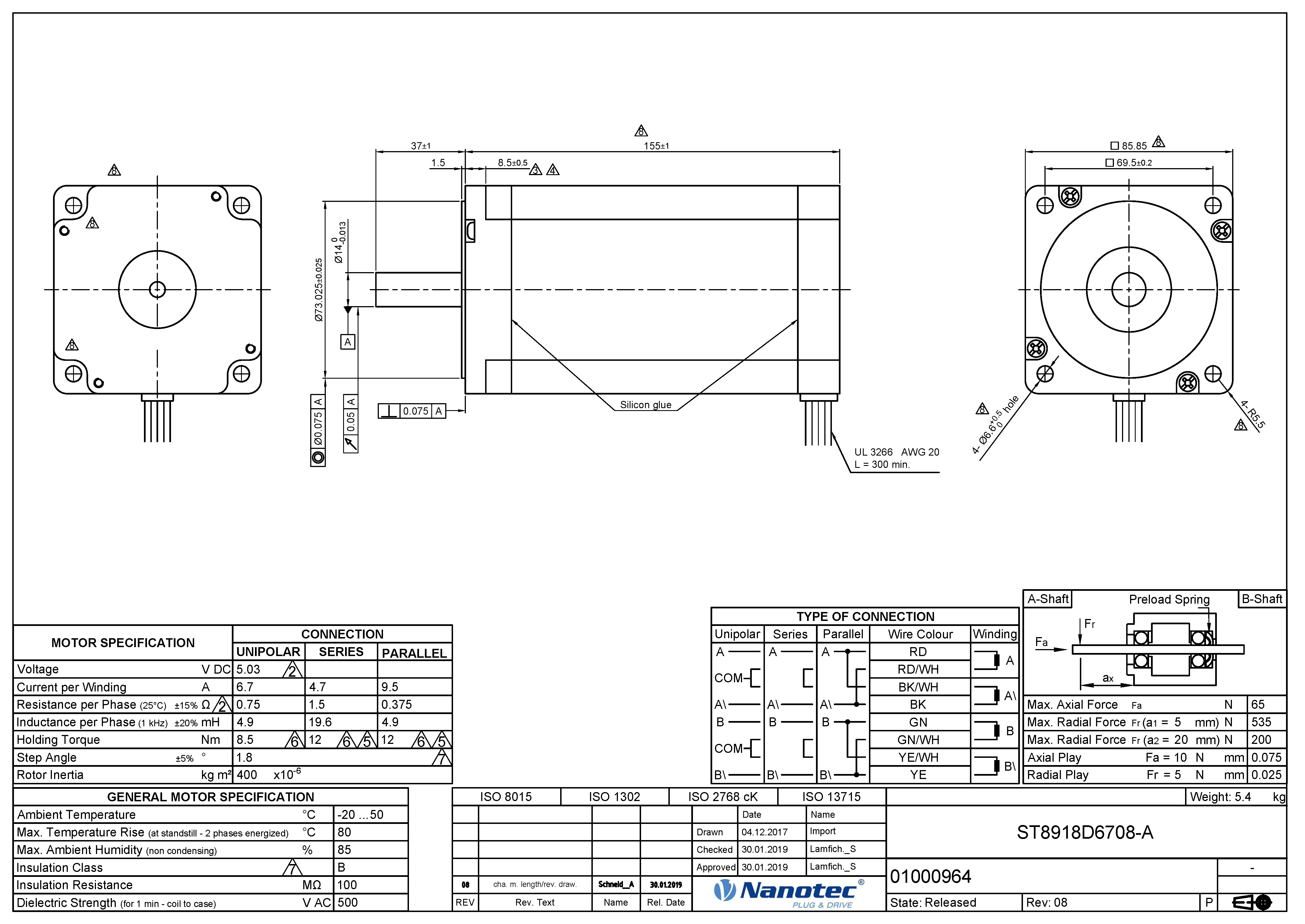

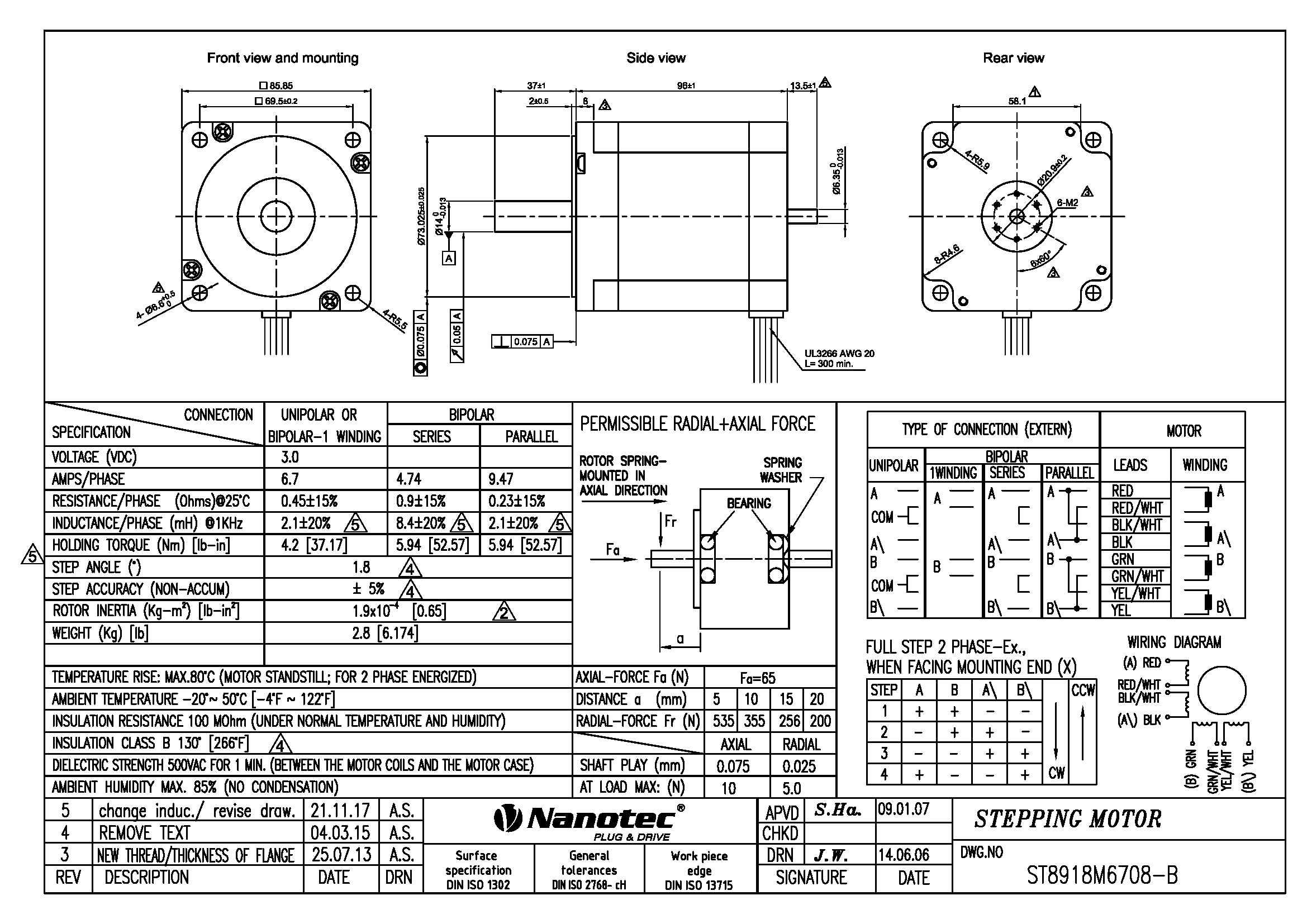

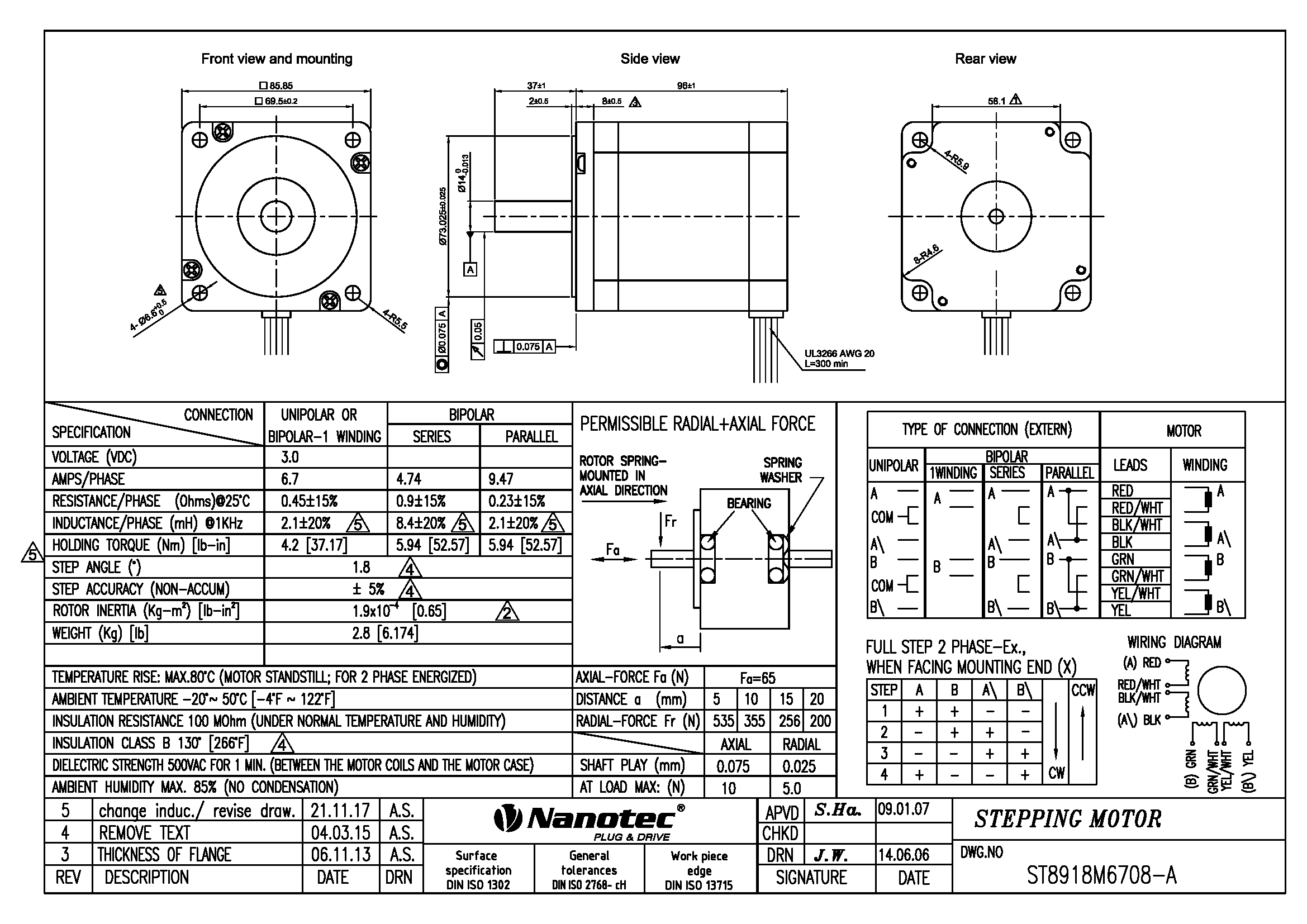

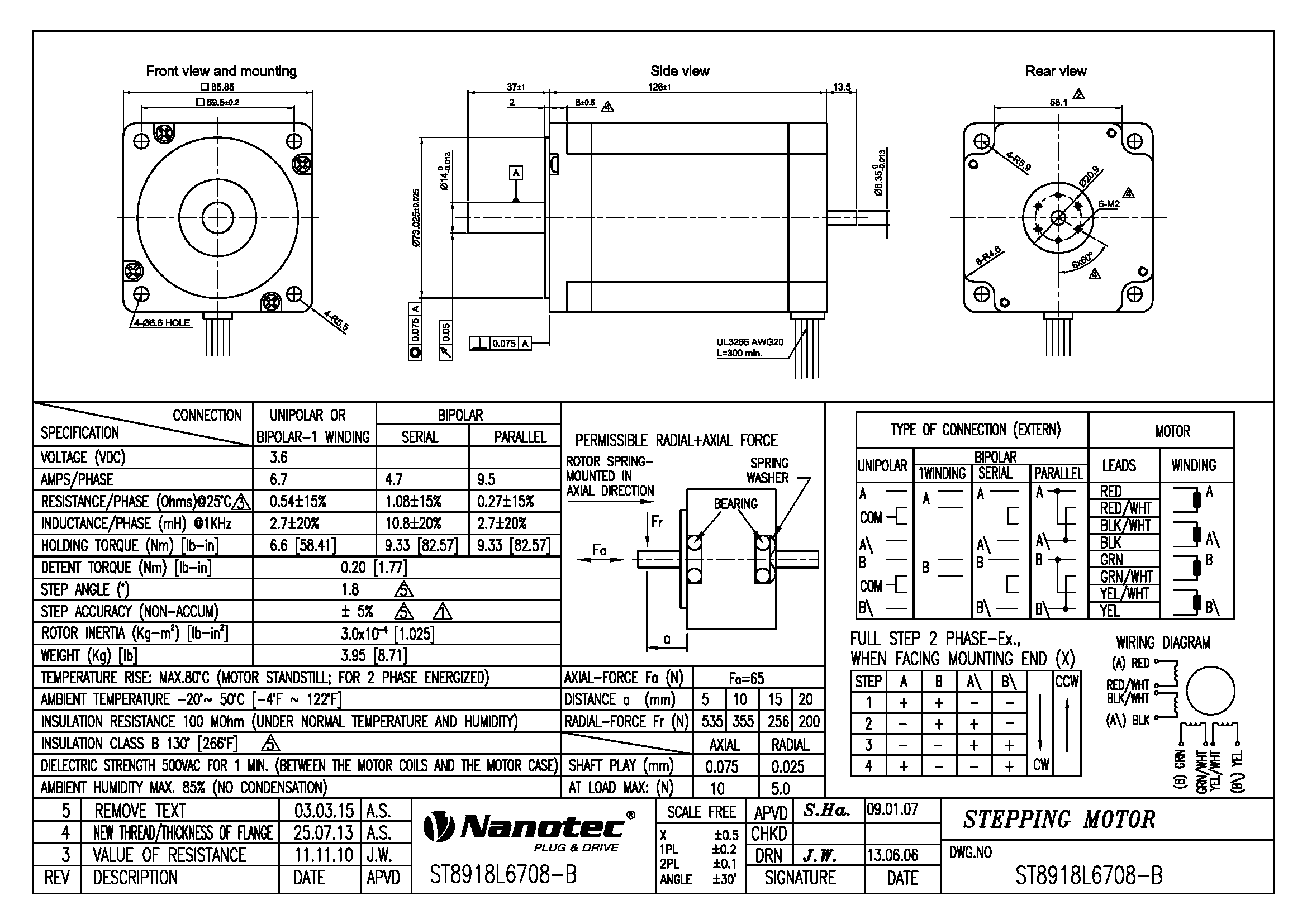

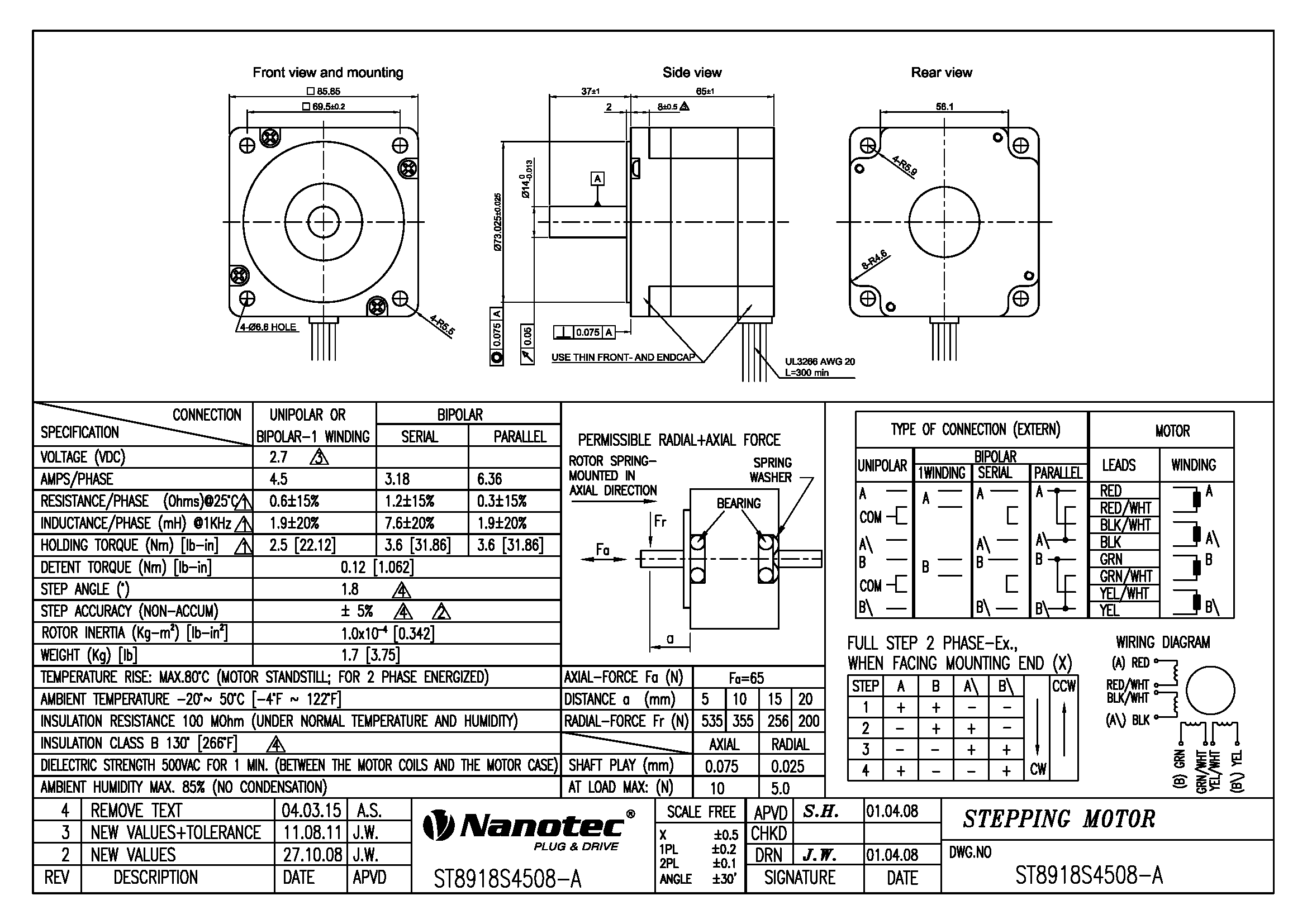

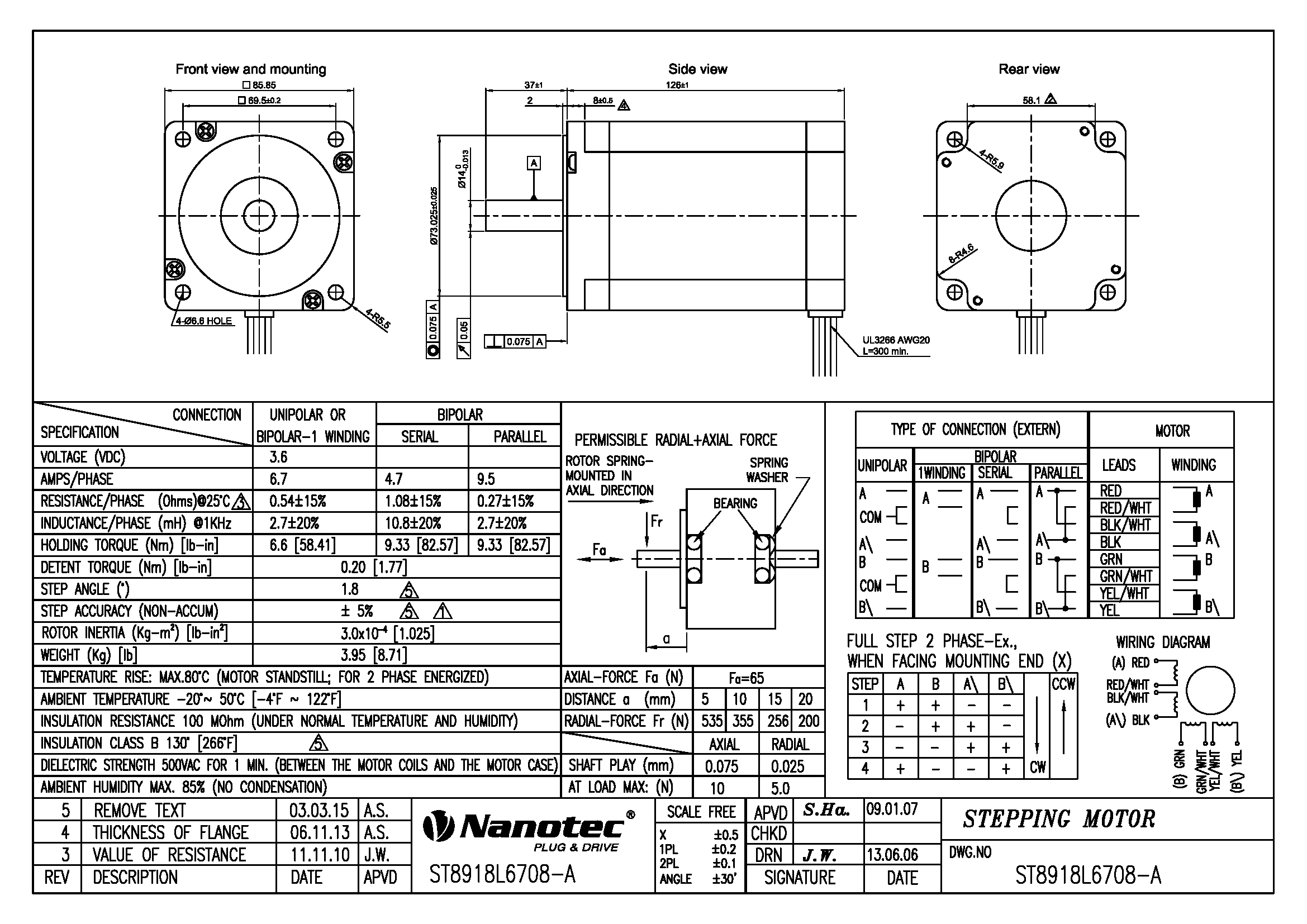

ST8918S4508-A, ST8918S4508-B, ST8918M4508-A, ST8918M4508-B, ST8918M6708-A, ST8918M6708-B, ST8918L4508-A, ST8918L4508-B, ST8918L6708-A, ST8918L6708-B, ST8918D6708-A, ST8918D6708-B,

• NEMA 34

• Current per Winding - 4.5 A - 6.7 A

• Length "A" - 2.56 in - 6.14 in

• Size - 3.38 in

• Holding Torque - 500.67 oz-in - 1702.29 oz-in

• Weight - 5.4 kg
