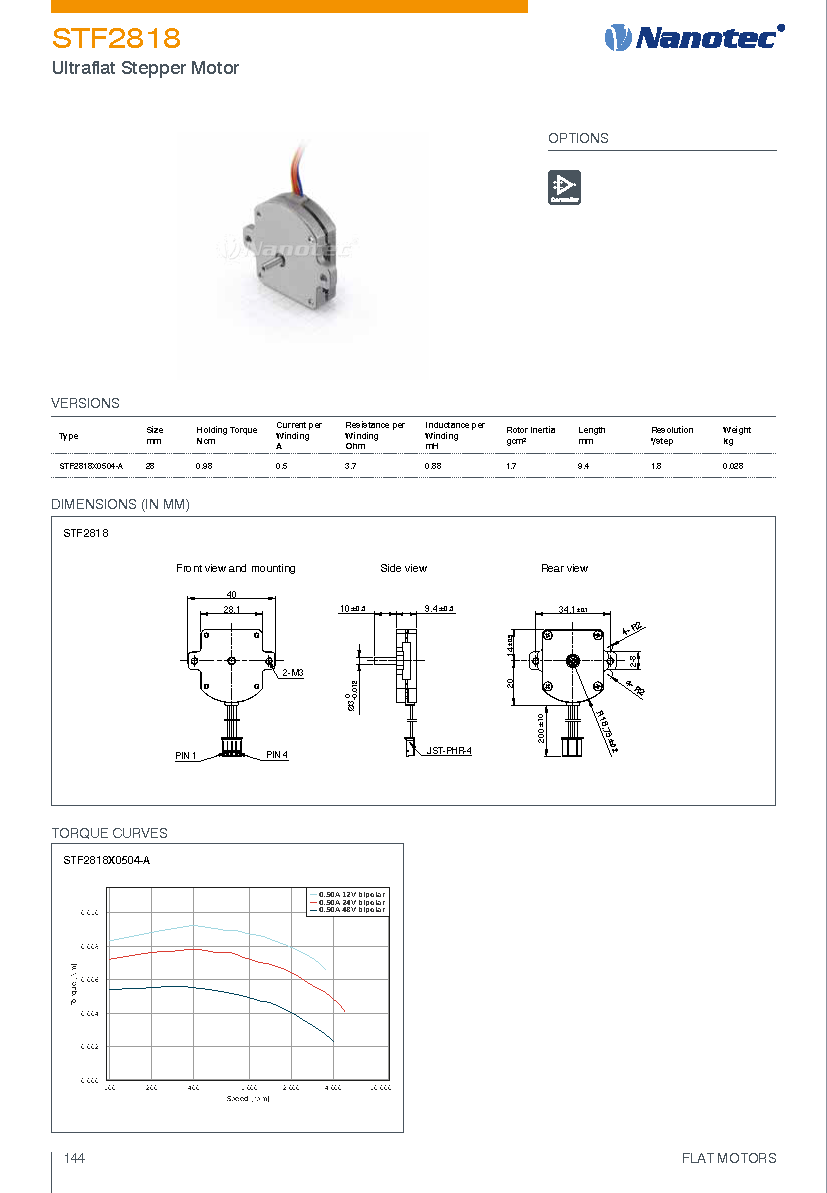

STF2818X0504-A – Ultraflat stepper motor

Ultraflat high-torque stepper motor with 28 x 34 mm flange, 0.9 mm height, a step angle (full step) of 1.8°, high torque and speeds up to 4500rpm. It is the ideal solution for feeder applications in the semiconductor industry or stirrers

• Current per Winding - 0.5 A

• Length "A" - 9.4 mm

• Size - 1.1 in

• Resolution - 1.8 °/step

• Weight - 0.028 kg
