Trust Automation Micro-Power Linear Amplifier for Brushed Servo Motors (TA105 Series)

Trust Automation Linear Servo Amplifiers are the best known and most advanced products available in the industry. Our amplifier design provides superior signal reproduction and zero dead-band through the use of precision-matched and high-performance components.

For over 20 years, we have designed and manufactured drive technologies for a wide range of applications, including semiconductor processing equipment, high-speed spindle controls, robotics, vision systems, assemblies, general manufacturing, and much more. Linear amplifiers are ideal for applications requiring high bandwidth, high precision, and low electrical noise.

Field-Proven Performance

Since their design and production release, we have deployed tens of thousands of linear amplifiers into demanding applications. Our systems have been put to the test under real-world conditions, meeting and exceeding performance requirements with the most rigorous duty cycles.

Brush/Brushless Low to High Power:

Applications:

Standard Linear Amplifiers

Trust Automation Linear Servo Amplifiers are the best known and most advanced products available in the industry. Our amplifier design provides superior signal reproduction and zero dead-band through the use of precision-matched and high-performance components.

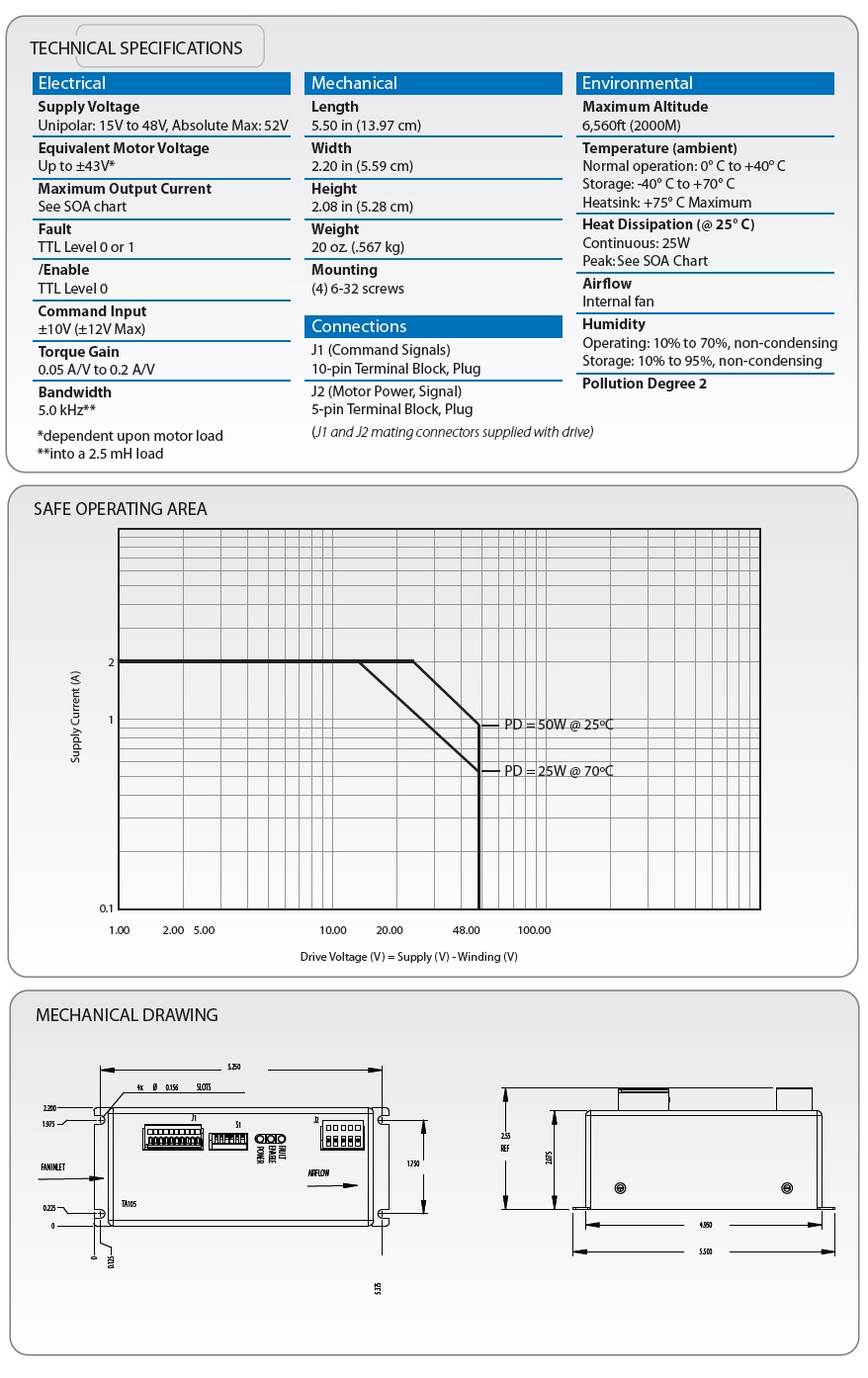

TA105 LINEAR DRIVE FOR BRUSH SERVO MOTORS

A robust linear amplifier, built to provide quiet and smooth power to brush motors.The Trust Automation TA105 Linear Drive is a linear servo motor amplifier, designed to drive a brush motor with up to 85W of power. The TA105 is an excellent solution for voice coil type motors, high precision positioning applications and systems requiring ultra-quiet driving power where low noise operation is essential. The TA105 can be operated in voltage (velocity) mode or current (torque) mode, selected via a user accessible DIP switch. Fault logic is also selectable via a DIP switch.

Features:

• Digital on-the-fly gain control (DTS)

• Over-temperature protection

• 40W continuous/85W peak

• Integral forced-air cooling

• Very low electrical noise

• Selectable current limit

• 5.0 kHz bandwidth

Applications:

• Voice coil motors

• Small DC motors

• X-Y micro stages

• Metrology tools
