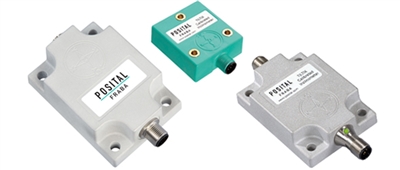

TILTIX Inclinometers

Accurate measurement of the degree of tilt or inclination from a horizontal position is very important for many motion control systems or to ensure safety. Inclination sensors offer an easy and efficient way of monitoring spatial orientation without the need for mechanical linkages – a real advantage for design engineers.

Single Axis Inclinometer

A variety of measurement ranges up to 360° are available. It is advisable to choose the smallest possible measurement range for the given application to achieve the best possible accuracy.

Dual Axis Inclinometer

A variety of measurement ranges up to 80° are available. Dual axis sensors are ideal for leveling applications.

Applications

Inclinometers can significantly improve operating safety in mobile machines by continuously monitoring the tilt or inclination angles. Inclinometers are much easier and thus less expensive to install compared to Rotary Encoders, which makes them ideal for applications like solar trackers
