Heidenhain: CNC Controls (TNC 128 Series)

Controlling Machine Tools

For milling machines, milling/turning machines and machining centers:

Form a complete product line with their various features
Control machines with up to 18 axes
Their Klartext conversational programming capability is suited for the workshop floor
Can also be programmed externally
Are also suited for automated production
Are the correct choice for everything from simple milling procedures to high-speed milling

The contouring control for lathes:

Ideal for both CNC and cycle lathes
Enables the familiar manual production of simple workpieces
Supports programming with many cycles
Its smart.Turn feature offers form- and graphics-supported programming for complicated workpieces
Performs complementary milling and drilling operations in a single fixture
Also supports vertical lathes
Suited for digital or analog drive control

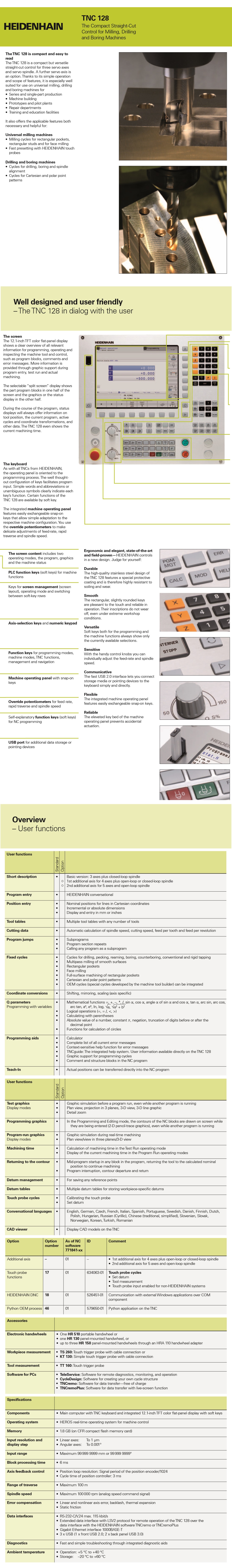

TNC 128 – The Compact Straight-Cut Control for Milling, Drilling and Boring Machines

The TNC 128 is a compact but versatile straight-cut control for three servo axes and servo spindle. A further servo axis is an option. Thanks to its simple operation and scope of features, it is especially well suited for use on universal milling, drilling and boring machines for:

Series and single-part production
Machine building
Prototypes and pilot plants
Repair departments
Training and education facilities

Workshop-Oriented Programming

Workshop-oriented programming is an important attribute of the TNC 128, particularly since the TNC controls are rooted in the workshop. In the past years, machining processes have become more complex, and the machines themselves more powerful. Throughout, the basic operation of the TNC controls has remained the same despite their continued development and improvement. The proven operation is also the basis for the user-friendly programming of the TNC 128, since it assists you during program creation with help graphics, practical prompts, machining cycles and cycles for coordinate transformation.

Simple Operation

For simple work, such as face milling, you need not write a program on the TNC 128. It is just as easy to operate the machine manually by pressing the axis keys or—for maximum sensitivity—using the electronic handwheel.

Offline Program Creation

The TNC 128 can be programmed remotely just as well. Your Fast Ethernet interface guarantees very short transfer times, even of long programs
